Item No. |
STE36224 |
STE62248 |
Rated Output Power |
3600W |
6200W |
Nominal PV Operating Voltage |
360VDC |
360VDC |
MPPT Operating Voltage |
60~450VDC |
60~450VDC |
Nominal Output Voltage |
220/230/240VAC 50/60Hz |
220/230/240VAC 50/60Hz |
Nominal Output Current |
15.7A |
27A |
Power Factor Range |
>0.99 |
|
Surge Power |
7200W |
10000W |
Communication Port |
RS232/GPRS/WIFI/LITHIUM BATTERY |
|
Product Size |
310x420x110mm |
310x420x110mm |
Warranty |
3 years |

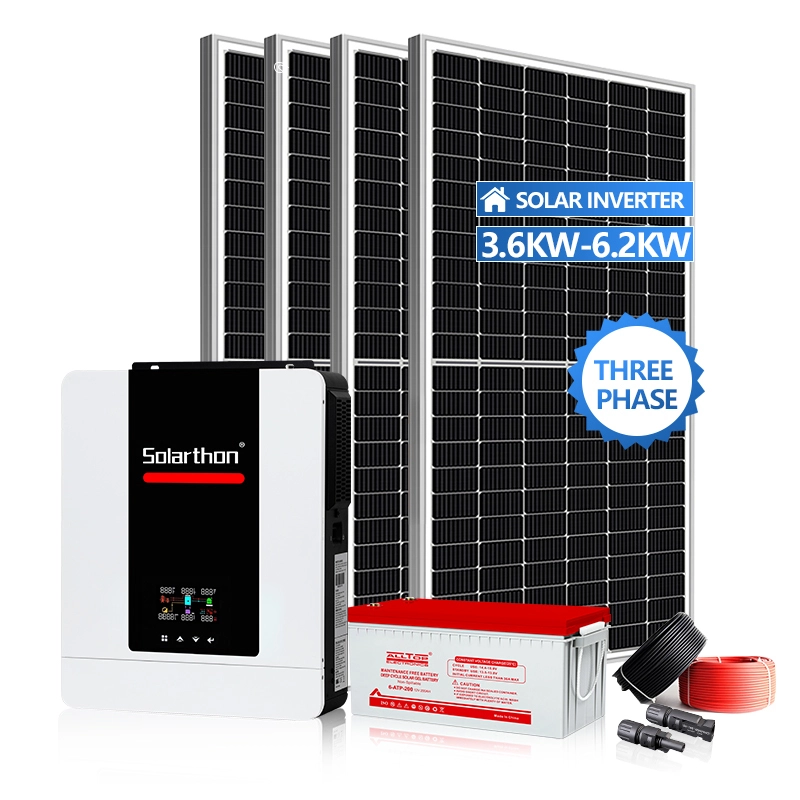

Hybrid solar inverter with MPPT charge controller is a new type of all-in-one hybrid solar inverter charger, multi-function inverter/charger, which combines the functions of inverter, solar charger and battery charger to provide uninterruptible power supply support in portable size. Support dual PV input, dual MPPT voltage tracking. RGB flexible with different working modes (purple photovoltaic mode; Red battery mode, blue utility mode).
With grid-connected/off-grid function
1. Off-grid (default): The inverter only operates in off-grid mode. Solar energy provideselectricity to the load as the first priority, charging second.2. Hybrid: The inverter runs the hybrid mode. Solar energy to power the load is the firstpriority, charging is the second priority, and excess energy is fed to the grid.
PRODUCT FEATURES
1.Pure sine wave solar inverter(on/off Grid) Inverter running without battery
2.Output power factor 1.0
3.High PV input voltage range(90-500VDC)
4.WIFI&GPRS available for IOS and Android
5.Built-in anti-dusk kit for harsh environment
6.Built-in 160A (for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
7.Smart battery charge design to optimize battery life
8.One-click restoration to factory Settings
9.Dual output
10.Built-in Lithium battery automatic activation
11.Touch buttom
RGB Light:Red for battery mode
Blue for utility mode
Purple for PV mode
Versatile
MPPT inverter charger pure sine wave (optional 3.6Kw 6.2Kw) for Rv, camper, boat, family emergency, etc. A variety of home and office loads can be used, including ovens, rice cookers, lamps, TVs, fans, and other AC loads.
