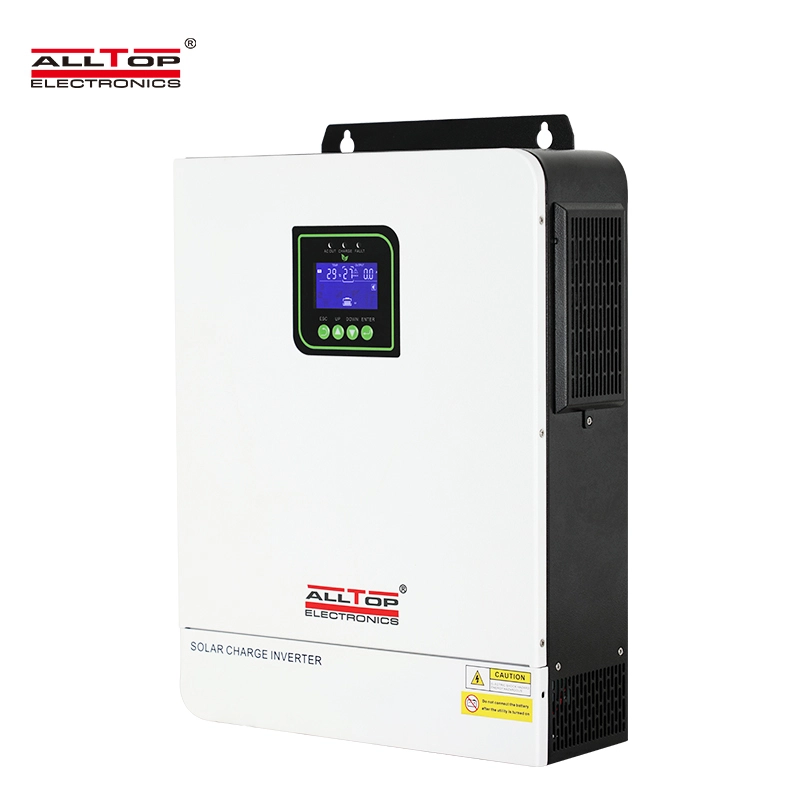

Hybrid Home Solar Inverter Solar Energy System Capacity Pure Sine Wave Solar Hybrid Inverter
5.0
Certification:
CE/ISO9001/RoHS/3C/CQC//UL/TUV
Delivery Time:
5-15 days
Packing:
L/C, D/A, D/P, T/T, Western Union, Money Gram
Payment Terms:
OEM/ODM Customized
Start Port:
guangzhou ,shenzhen, zhuhai
Supply Ability:
5000 PCS/Month
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model | THON-6.2KW-10P | THON-8KW-10P | THON-10KW-10P | THON-11KW-10P |
| Battery Voltage | 51.2VDC | 51.2VDC | 51.2VDC | 51.2VDC |
| Rated Power | 6200W | 8000W | 10000W | 11000W |
| Rated AC Output Voltage | 230VAC | 230VAC | 230VAC | 230VAC |
| Rated AC Output Current | 26.9A | 35A | 43.5A | 48A |
| Battery Input Voltage Range | 40~60VDC | 40~60VDC | 40~60VDC | 40~60VDC |
| Maximum Battery Current | 135A | 183A | 230A | 250A |
| Rated AC Input Voltage Range | 170-280VAC, 50/60Hz | 170-280VAC, 50Hz | 170-280VAC, 50/60Hz | 170-280VAC, 50Hz |
| Maximum AC Charging Current | 80A | 150A | 150A | 150A |
| Maximum PV Input Power | 6000W | 5500W+5500W | 5500W+5500W | 5500W+5500W |
| MPPT Input Voltage Range | 120-450VDC | 120-450VDC | 120-450VDC | 120-450VDC |
| Maximum PV Input Current | 22A | 22A+22A | 22A+22A | 22A+22A |
| Maximum PV Charge Current | 100A | 150A | 150A | 150A |
| IP Grade | IP20 | IP20 | IP20 | IP20 |
| Max. Number Of Parallel | 6 sets | 6 sets | 6 sets | 6 sets |
| Product Size | 446*326*117.5mm | 576*388.5*133mm | 576*388.5*133mm | 576*388.5*133mm |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Net weight | 9.5KG | 18.10KG | 18.10KG | 18.10KG |
product description
HYBRID INVERTER
♦ It has the function of sectional charge and discharge.
♦ It can be used without battery. Solar and utility grid can power loads at the same time.
♦ With dual activation function of lithium battery, it can be triggered by any power supply of the mains/photovoltaic.
♦ Two output modes: mains bypass and inverter output; uninterrupted power supply.
♦ Complete protections, including over voltage and under voltage protection, overload protection, reverse protection,
etc ,360° all-round protection with a number of protection functions.
♦ ON/OFF rocker switch for AC output control.
♦ Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
♦ Intelligent variable speed fan to efficiently dissipate heat and extend system life.
Hybrid Inverter
Effortlessly command your energy with the THON Solar Inverter (On/Off Grid) intuitive control panel.Designed with user experience in mind, the panel offers: Clear Display,Simple Navigation,Immediate Feedback, LED indicators for AC/INV, CHG, and FAULT provide real-time operational alerts.Our control panel is the gateway to a smarter energy solution, placing the power to monitor and adjustright in the palm of your hand.
Hybrid Inverter
♦ Anti-countercurrent grid-connected function (photovoltaic hybrid power supply),grid-connected mode can be set.
♦ Advanced MPPT technology with an efficiency of 99.9%.
♦ Two output modes: mains bypass and inverter output; uninterrupted power supply.
♦ Power saving mode available to reduce no-load loss.
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Applications
