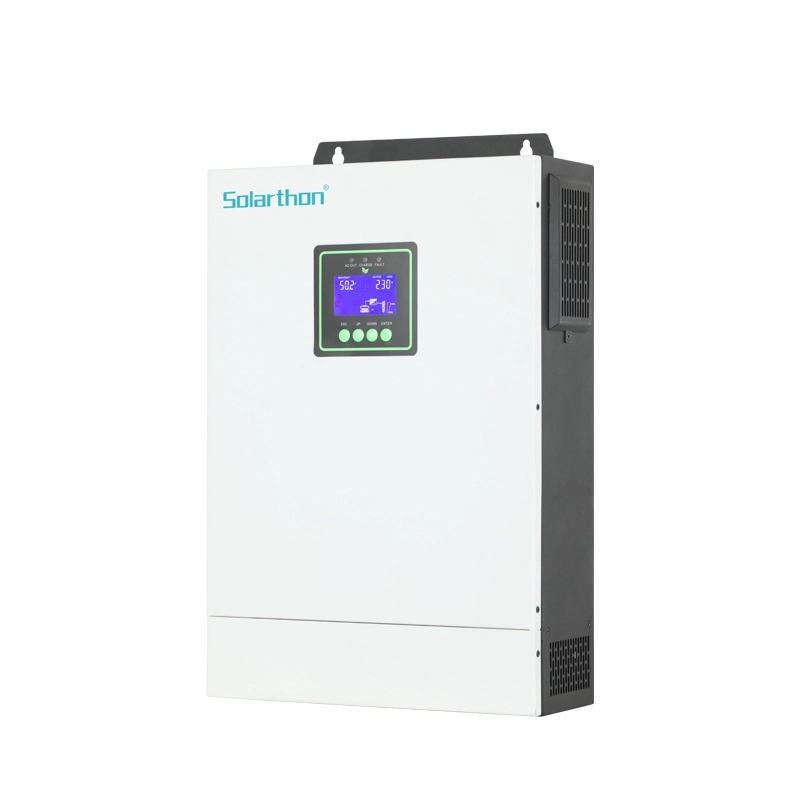

Hybrid Solar Inverter 5.6KW 8KW 10KW 12KW Pure Sine Wave Frequency Single Phase Power Inverter For Solar System
|
Item No. |
THON-5.6KW-01P | THON-8KW-01P | THON-10KW-01P | THON-11KW-01P | THON-12KW-01P |
|
Battery Voltage |
51.2VDC | 51.2VDC | 51.2VDC | 51.2VDC | 51.2VDC |
|
Rated Power |
5600VA/5600W | 10000VA/8000W | 10000VA/10000W | 11000VA/11000W | 12000VA/12000W |
|
Rated AC Output Voltage |
230VAC | 230VAC | 230VAC | 230VAC | 230VAC |
|
Rated AC Output Current |
24.3A | 35A | 50A | 48A | 50A |
|
Battery Input Voltage Range |
40~60VDC | 40~60VDC | 40~60VDC | 40~60VDC | 40~60VDC |
|
Maximum Battery Current |
125A | 153A | 260A | 250A | 260A |
|
Rated AC Input Voltage Range |
170-280VAC, 50/60Hz | 170-280VAC, 50Hz | 170-282VAC, 50/60Hz | 170-280VAC, 50Hz | 170-282VAC, 50/60Hz |
|
Maximum AC Charging Current |
60A | 150A | 160A | 120A | 160A |
|
Maximum PV Input Power |
5600W | 4500W+4500W | 6000W*2 | 5500W+5500W | 6000W*2 |
|
MPPT Input Voltage Range |
120-450VDC | 80-450VDC | 90~500VDC | 90~450VDC | 90~500VDC |
| Maximum PV Input Current | 22A | 22A+22A | 22A*2 | 22A+22A | 22A*2 |
| Maximum PV Charge Current | 100A | 150A | 220A | 150A | 220A |
| IP Grade | IP20 | IP20 | IP20 | IP20 | IP20 |
| Max. Number Of Parallel | 6 sets | 6 sets | 6 sets | 6 sets | 6 sets |
| Product Size | 470*318.7*117.5mm | 576*368.6*133mm | 651.9*468.6*137mm | 576*368.6*133mm | 651.9*468.6*137mm |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
♦ It has the function of sectional charge and discharge.
♦ Anti-countercurrent grid-connected function (photovoltaic hybrid power supply),grid-connected mode can be set.
♦ It can be used without battery. Solar and utility grid can power loads at the same time.
♦ With dual activation function of lithium battery, it can be triggered by any power supply of the mains/photovoltaic.
♦ Two output modes: mains bypass and inverter output; uninterrupted power supply.
♦ Complete protections, including over voltage and under voltage protection, overload protection, reverse protection,
etc ,360° all-round protection with a number of protection functions.
♦ ON/OFF rocker switch for AC output control.
♦ Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
♦ Intelligent variable speed fan to efficiently dissipate heat and extend system life.
Effortlessly command your energy with the THON Solar Inverter (On/Off Grid) intuitive control panel.Designed with user experience in mind, the panel offers: Clear Display,Simple Navigation,Immediate Feedback, LED indicators for AC/INV, CHG, and FAULT provide real-time operational alerts.Our control panel is the gateway to a smarter energy solution, placing the power to monitor and adjustright in the palm of your hand.
♦ Anti-countercurrent grid-connected function (photovoltaic hybrid
power supply),grid-connected mode can be set.
♦ Advanced MPPT technology with an efficiency of 99.9%.
♦ Two output modes: mains bypass and inverter output; uninterrupted
power supply.
♦ Power saving mode available to reduce no-load loss.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
