We are a leading manufacturer of solar power utilization and lighting systems

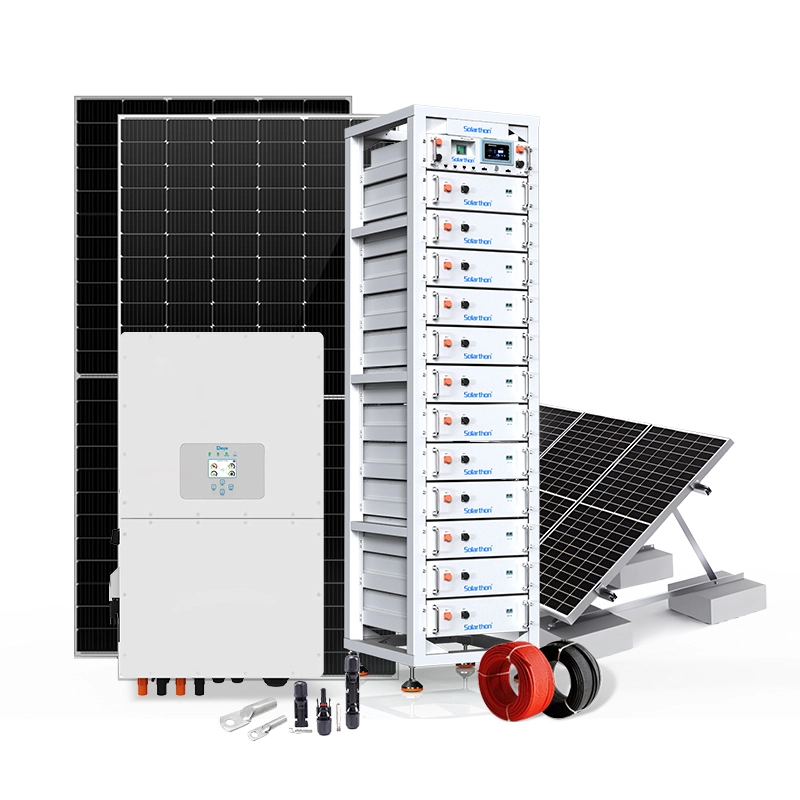

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 1

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 2

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 3

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 4

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 5

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 6

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 7

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller

ALLTOP DQ2910 series is an advanced system. The system consists of rack-mounted battery modules, each with a capacity of 5.12 kWh. Multiple modules can be connected in series and parallel to achieve the required storage capacity, and its modular and scalable architecture provides flexible capacities from 20.48kWh to 76.8kWh. Standardized 3U chassis design for easy installation and maintenance.
Key features of this battery pack include a service life of more than 10 years, integrated battery management system protection, an operating temperature range of -20'C to 55'C, and a depth of discharge of up to 90% for excellent energy. The intrinsically safe LifePO4 chemistry also makes the system reliable and environmentally friendly. Advanced monitoring and control capabilities to optimize system performance and longevity.

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Money Gram

Service:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Write a Review

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 8

Key features of this battery pack include a service life of more than 10 years, integrated battery management system protection, an operating temperature range of -20°C to 55°C, and a depth of discharge of up to 90% for excellent energy. The intrinsically safe LifePO4 chemistry also makes the system reliable and environmentally friendly. Advanced monitoring and control capabilities to optimize system performance and longevity.

product description

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 9

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 18 pcs In Series

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 10

40KWH ESS with 20KW PCS and Solar Charging System

30KW Three Phase Hybrid Inverter

Rated Output Power: 30KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 3/2+2+2
MPPT Voltage Range: 150~850V
Full Load Voltage Range: 360~850V
PV Input Current: 36+36+36A
Battery Voltage Range : 160-800VDC
Number Of Battery Input: 2
Max. Charging Current: 50+50A
Max. Discharging Current: 50+50A
Max. Efficiency: 97.60%
Protection Class: IP65
Size: 527*894*294mm
Weight: 80kg
Warranty: 5 Years

Three Phase 30KW 60KWH Commercial Hybrid Solar Power System Full Kit with Energy Storage and MPPT Controller 11

Slope Roof Mounting Structure

614.4V 100AH Vertically Stacked Energy Storage Battery Pack

Battery Type: LiFePO4
Nominal Voltage: 614.4V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 691.2V
Discharging Cut-off Voltage: 537.6V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*2188mm
Weight: 644kg
Warranty: 5 years
