We are a leading manufacturer of solar power utilization and lighting systems

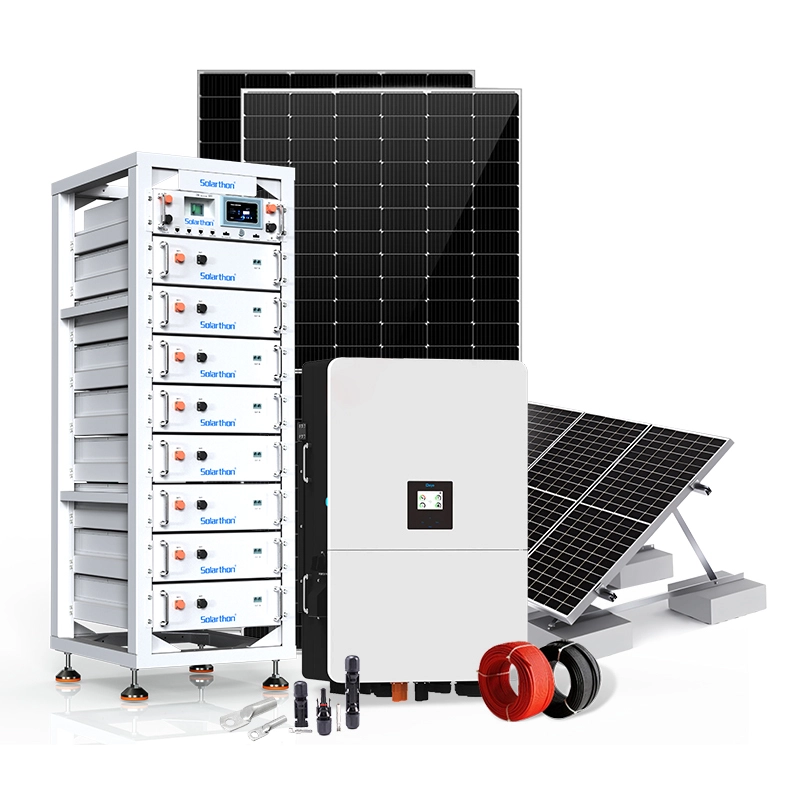

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 1

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 2

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 3

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 4

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 5

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 6

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 7

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home

Vertically Stacked Energy Storage Battery Pack It has protection functions including over-discharge. over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.

Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wifi upgrade (optional), remote up grade(Compatible with Deye inverter).

The whole module is non-toxic, non-polluting and environmentally friendly.

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Money Gram

Service:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Write a Review

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 8

ALLTOP DQ2910 series is an advanced system. The system consists of rack-mounted battery modules, each with a capacity of 5.12 kWh. Multiple modules can be connected in series and parallel to achieve the required storage capacity, and its modular and scalable architecture provides flexible capacities from 20.48kWh to 76.8kWh. Standardized 3U chassis design for easy installation and maintenance.

product description

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 9

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 18 pcs In Series

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 10

40KWH ESS with 20KW PCS and Solar Charging System

40KW Three Phase Hybrid Inverter

Rated Output Power: 40KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 4/2+2+2+2
MPPT Voltage Range: 150~850V
Full Load Voltage Range: 360~850V
PV Input Current: 36+36+36+36A
Battery Voltage Range : 160-800VDC
Number Of Battery Input: 2
Max. Charging Current: 50+50A
Max. Discharging Current: 50+50A
Max. Efficiency: 97.60%
Protection Class: IP65
Size: 527*894*294mm
Weight: 80kg
Warranty: 5 Years

40KW Hybrid Solar Panels Energy System 80KWH Complete Kit Solar Power System With Storage Set for Home 11

Slope Roof Mounting Structure

409.6V 100AH Vertically Stacked Energy Storage Battery Pack

Battery Type: LiFePO4
Nominal Voltage: 409.6V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 460.8V
Discharging Cut-off Voltage: 358.4V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1604mm
Weight: 443kg
Warranty: 5 years
