We are a leading manufacturer of solar power utilization and lighting systems

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 1

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 2

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 3

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 4

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 5

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 6

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 7

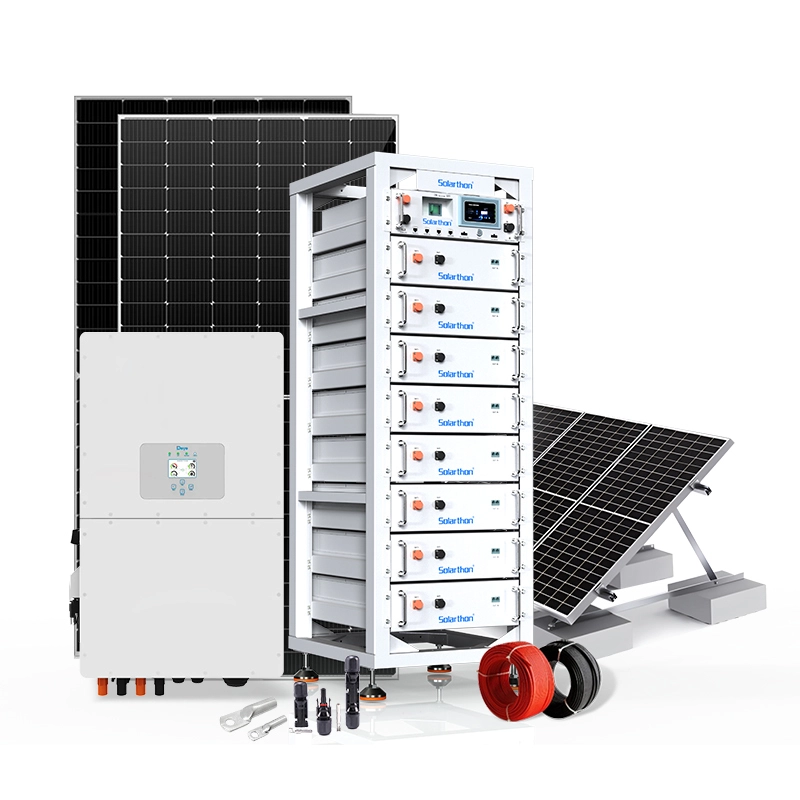

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use

409.6V 100AH Vertically Stacked Energy Storage Battery Pack Key features of this battery pack include a service life of more than 10 years, integrated battery management system protection, an operating temperature range of -20'C to 55°C, and a depth of discharge of up to 90% for excellent energy. The intrinsically safe LifePO4 chemistry also makes the system reliable and environmentally friendly. Advanced monitoring and control capabilities to optimize system performance and longevity.

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Money Gram

Service:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Write a Review

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 8

ALLTOP DQ2910 series is an advanced system. The system consists of rack-mounted battery modules, each with a capacity of 5.12 kWh. Multiple modules can be connected in series and parallel to achieve the required storage capacity, and its modular and scalable architecture provides flexible capacities from 20.48kWh to 76.8kWh. Standardized 3U chassis design for easy installation and maintenance.

product description

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 9

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 14 pcs In Series

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 10

40KWH ESS with 20KW PCS and Solar Charging System

15KW Three Phase Hybrid Inverter

Rated Output Power: 15KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 2/2+1
MPPT Voltage Range: 150~850V
Full Load Voltage Range: 420~850V
PV Input Current: 26+20A
Battery Voltage Range : 160-700VDC
Number Of Battery Input: 1
Max. Charging Current: 37A
Max. Discharging Current: 37A
Max. Efficiency: 97.60%
Protection Class: IP65
Size: 408*638*237mm
Weight: 30.5kg
Warranty: 5 Years

Super Complete Set 40KWH 15KW Hybrid Solar System with Solar Panels Three Phase Inverter for Household Use 11

Slope Roof Mounting Structure

409.6V 100AH Vertically Stacked Energy Storage Battery Pack

Battery Type: LiFePO4
Nominal Voltage: 409.6V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 460.8V
Discharging Cut-off Voltage: 358.4V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1604mm
Weight: 443kg
Warranty: 5 years
