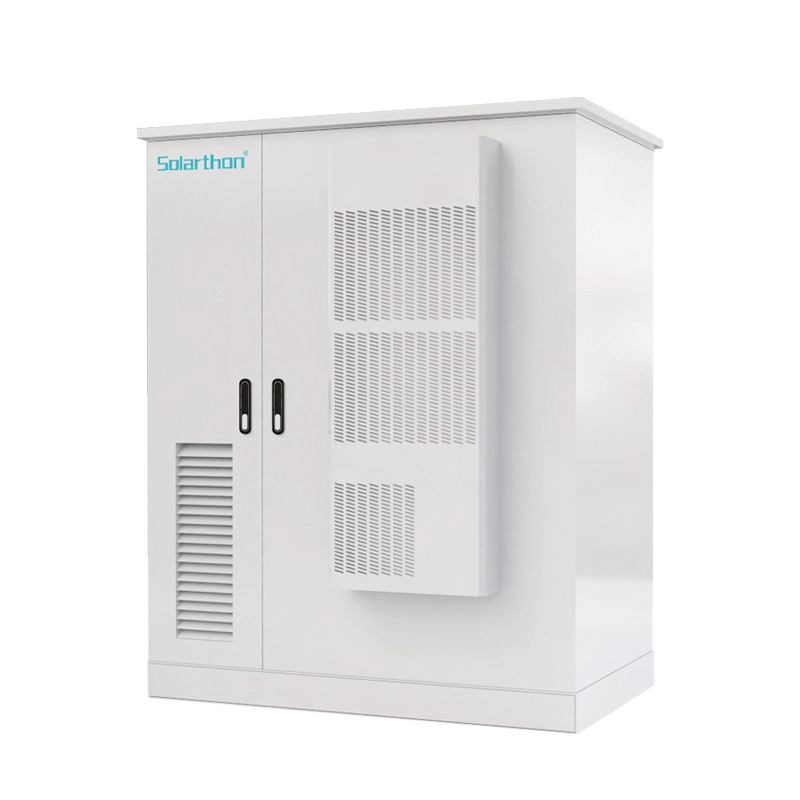

Super Industrial Commercial LiFePO4 50KWH 30KW Solar Battery Cabinet BESS Battery Energy Storage System Container
|
50KWH ESS with 30KW PCS and Solar Charging System |
|
|
Energy Storage System(ESS) |
|
|
LiFePO4 Battery |
512V/100AH |
|
Battery Voltage Range |
448~584V |
|
Power Conversion System(PCS) |
|
|
Rated Power |
30KW |
|
Rated AC Output Voltage |
380V, 50Hz |
|
AC Input Voltage Range |
380V |
|
DC Input Voltage Range |
320~850V |
|
Solar Charger |
|
|
Max. PV Charge Power |
19.2kW+19.2kW |
|
Max. PV Input Voltage |
850V |
|
MPPT Voltage Range |
200-830V |
|
Outdoor Three-cabin Cabinet |
|
|
Size |
2010*1600*1000mm |
|
Air Conditioner, 600W, 2 sets |
|
| Fire Fighting System | |
The concept of an energy storage cabinet is to centrally store electrical energy in order
to supply power during peak power demand or in case of emergency. It mainly consists
of a battery, an inverter, and a control system. The battery is the core component of the
energy storage cabinet, which can convert electrical energy into chemical energy and
store it. The function of the inverter is to convert the stored DC energy into alternating
current energy for the use of various electrical equipment.
The control system manages, optimizes energy use, and protects battery life.
50KWH ESS with 30KW PCS and Solar Charging System
ALLTOP Series 50KWH commercial & industrial energy storage system adopts
the all in one design concept.
The cabinet is integrated with battery management system (BMS), energy
management system (EMS),modular power conversion system (PCS),and fire
protection system.
The system's capacity is up to 50KWH and the power is up to 30kw. The modular
design allows for fiexible expansion, adapting to various scenarios such as power
expansion and backup power supply.
50KWH ESS with 30KW PCS and Solar Charging System
The application fields of industrial and commercial energy storage include separately configured energy storage systems, photovoltaic+energy storage integrated systems (referred to as optical storage systems), microgrids, etc. The industrial and commercial energy storage system mainly consists of batteries, BMS, PCS (bidirectional converter system), electrical circuits and protection, and EMS system. The industrial and commercial energy storage system has the opportunity to participate in electricity market-oriented transactions. In addition to providing local power security, possessing energy management and automatic switching functions for microgrids, EMS also needs to consider participating in power demand side response functions.
The product forms of industrial and commercial energy storage include distributed energy storage,
centralized energy storage, and station building energy storage. The industrial and commercial
energy storage system utilizes a peak shaving and valley filling charging and discharging strategy
to save users' electricity costs. The optical storage system can improve the spontaneous self
utilization rate of distributed photovoltaic power generation. The microgrid eld mainly solves the
problem of smooth generation and backup of new energy, achieving optimized energy utilization
and energy conservation and emission reduction.
■ Energy storage system and equipment-level 3D visualization, real-time presentation
system running status and parameters.
■ Realize energy storage anytime and anywhere through the mobile APP client Station
operation status check and maintenance management.
■ Realize regular storage and distribution of charging and discharging data of energy
storage power stations Analysis of power plant investment and operation costs and benets
in different dimensions.
