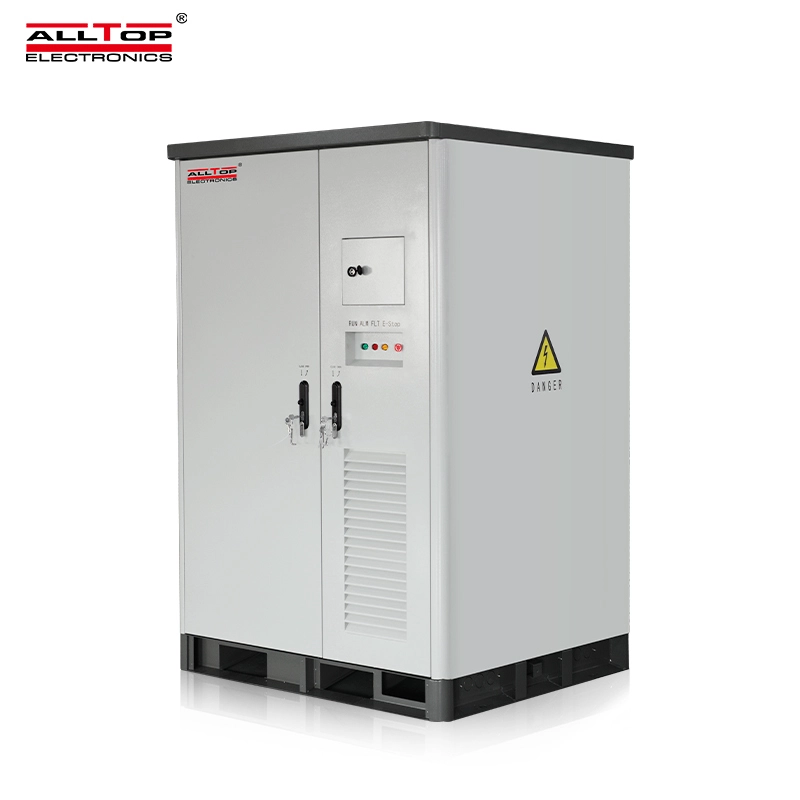

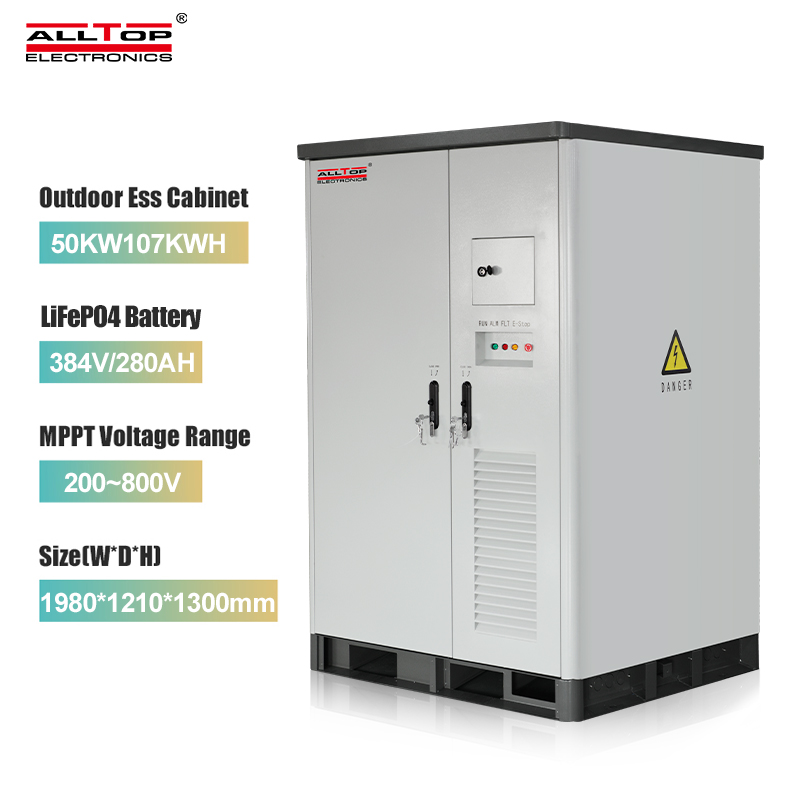

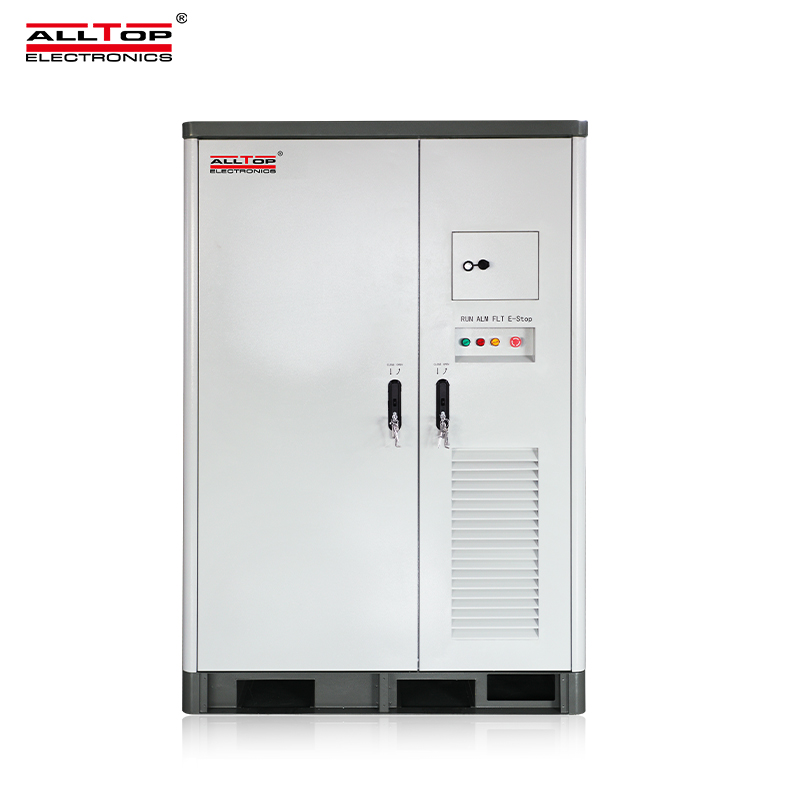

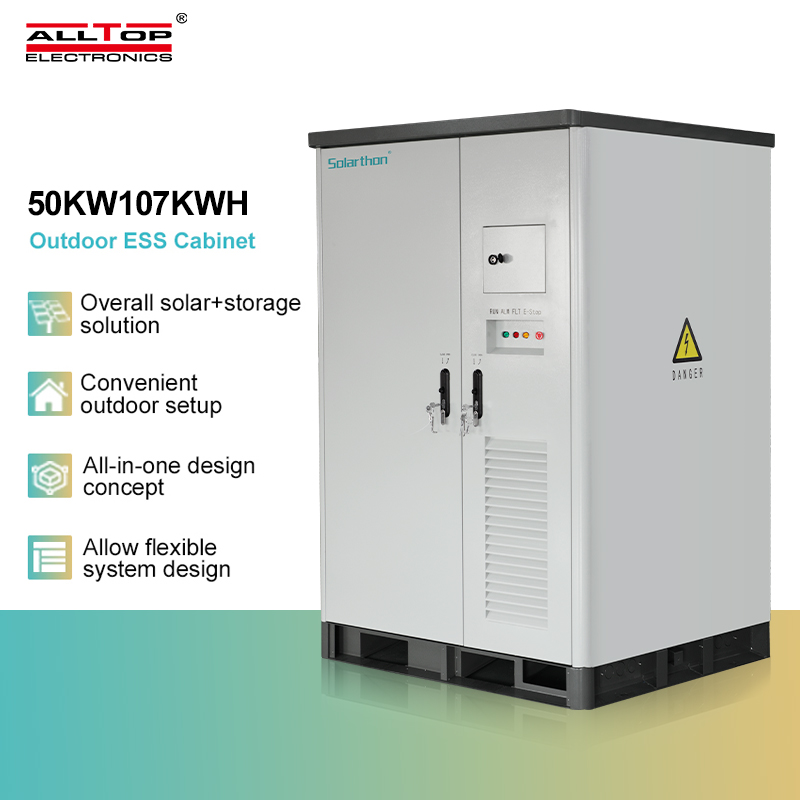

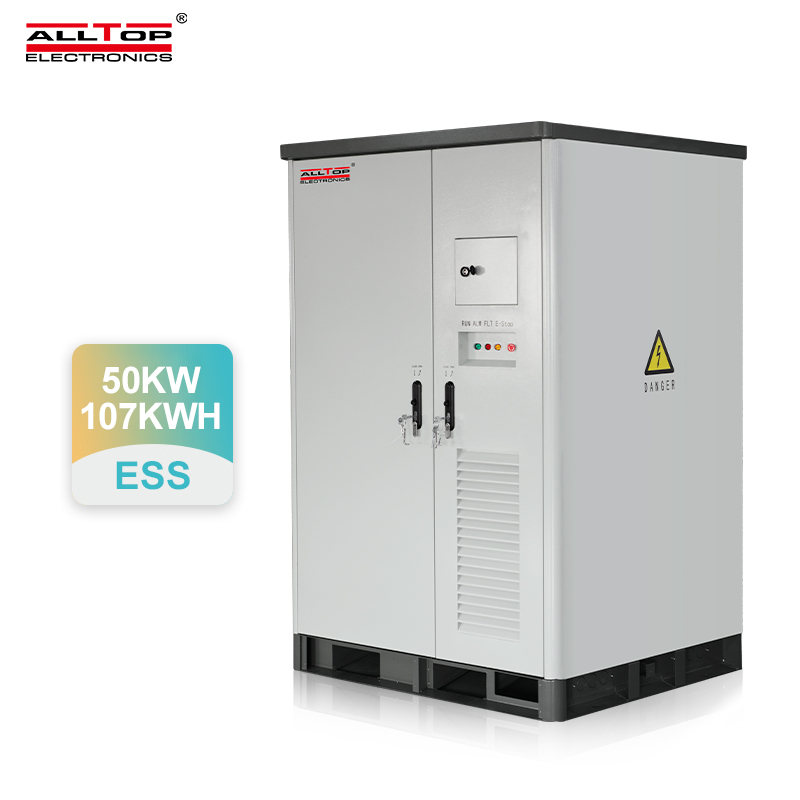

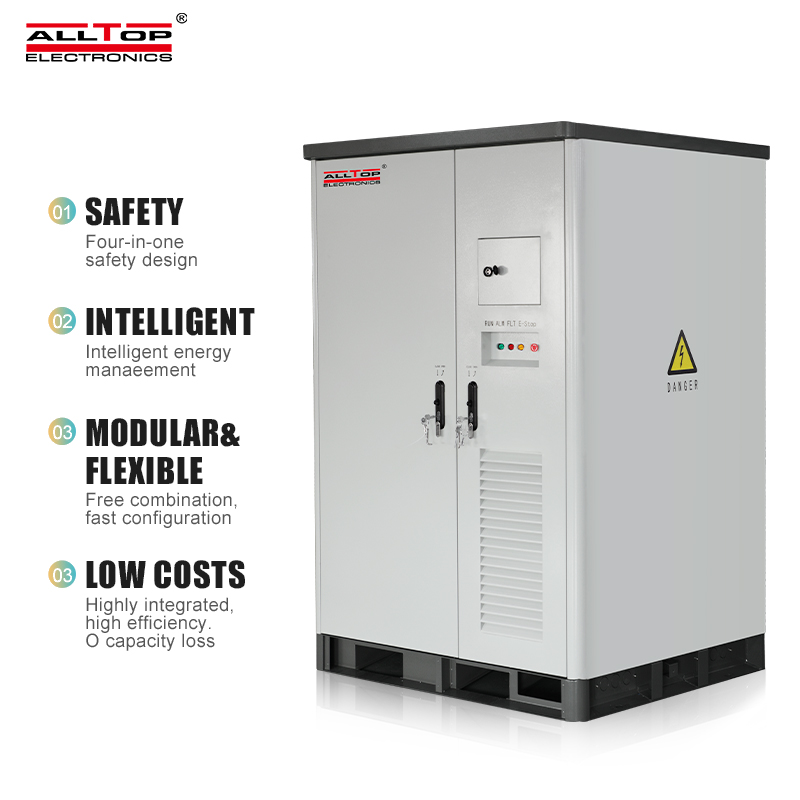

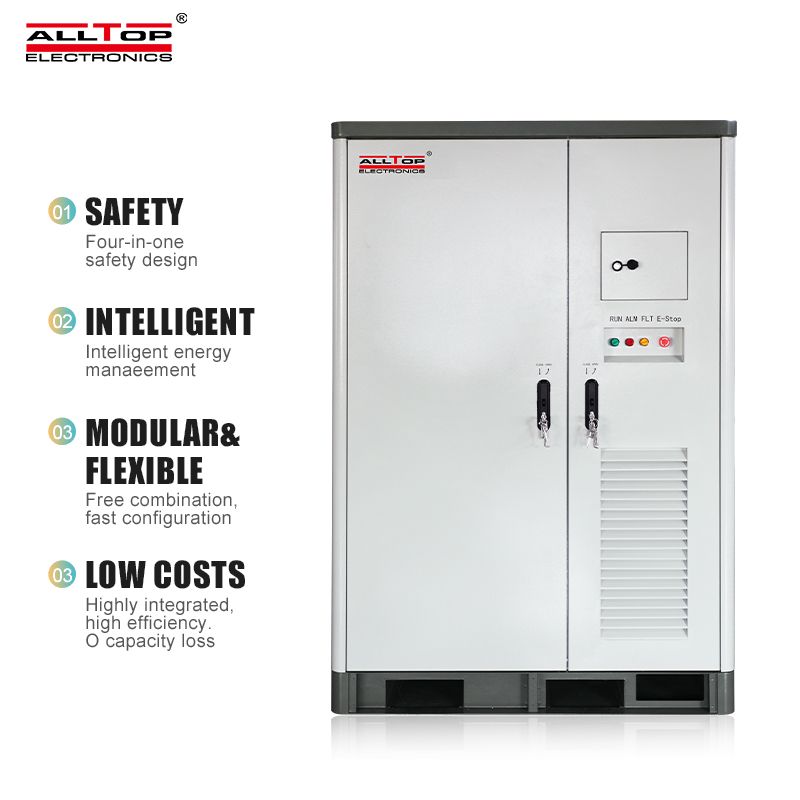

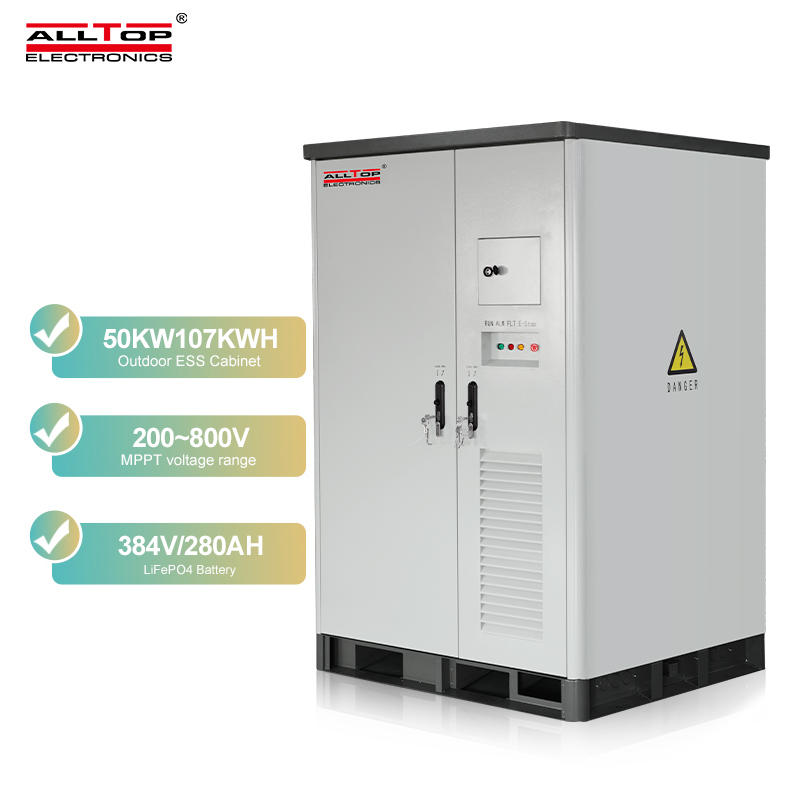

All in One LiFePO4 107KWH 50KW Standard Energy Storage Lithium-ion Battery Cabinet for ESS
energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment.
|
Item No. |
DQ1913C50K-01 |
|
Energy Storage System(ESS) |
|
|
LiFePO4 Battery |
384V/280AH |
|
Battery Voltage Range |
336~432V |
|
Three Phase Hybrid Inverter |
|
|
Rated Power |
50KW |
|
Rated AC Voltage |
230/400V, 50/60Hz |
|
AC Voltage Range |
230/400V, 50/60Hz |
|
DC Voltage Range |
350~850V |
|
Max. PV Charge Power |
38.4KW+38.4KW |
|
Max. PV Input Voltage |
850V |
|
MPPT Voltage Range |
200~800V |
|
Energy Management System(EMS) |
|
|
LCD monitor, RS485, CAN, TCP/IP |
|
|
Outdoor Three-cabin Cabinet |
|
|
Size |
1980*1210*1300mm |
|
Air Conditioner, 2000W, 1 sets |
|
|
Fire Fighting System |
|
107KWH ESS with 50KW Three Phase Hybrid Inverter Solar Power System
The cabinet is integrated with battery management system (BMS), energy management system (EMS),modular power conversion system (PCS),and re protection system.
The system's capacity is up to 107 kwh and the power is up to 50 kw. The modular design allows for exible expansion, adapting to various scenarios such as power expansion and backup power supply.
107KWH ESS with 50KW Three Phase Hybrid Inverter Solar Power System
DC source supplies power to the PCS;
● Three-phase hybrid inverter, 100% unbalanced output per phase, maximum unbalanced
output power up to 50% rated power;
● Support parallel and off-grid parallel operation, up to 15 parallel machines;
● High voltage battery, higher efciency, low caloric value;
● Built-in WIFI module, check the working status of the device at any time through the mobile
APP client;
Application Scenario Energy Storage Container Energy Storage SystemApplication Scenario Energy Storage Container Energy Storage System.
1. PV station
2. Wind Grid side power station
3. Frequency regulation
4. Grid side
5 Industrial and commercial
-New-energy generation: Effectively smoothen the power output to decrease the
impact to the grid
-Generate according to the plan and correct forecast errors
-Reduce the peak and fill the valley-Grid frequency modulation with AVC and AGC
functions
-Electricity of transmission and distribution-Smart Grid
-Micro-grid - Reduce the peak and fill the valley-Military Base, smelter, chemical plant,
paper mill, airport, wharf and others.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
