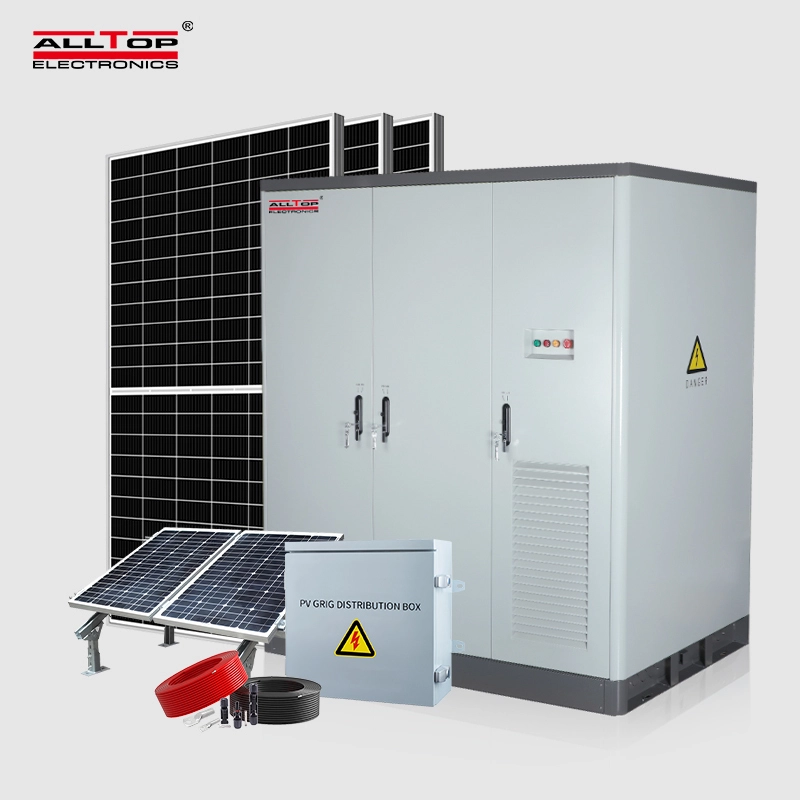

Industrial Solar Energy System 100KW 241KWH Hybrid All In 1 Complete System Offgrid For Big House
Feature highlights:The Outdoor ESS Cabinet Energy Battery offers 105kw-241kw power storage with air/liquid cooling for industrial and commercial use. It features a reinforced aluminum alloy base, hot-dip galvanized shell, and modular design for easy maintenance. Equipped with a BMS system, visual monitoring, and multi-channel communication (485, CAN, Ethernet), it ensures precise temperature control and wide operating temperature range up to 55°C. Certified with CE and RoHS, ensuring compliance with EU safety standards and providing market access. The battery supports OEM/ODM customization, has a cycle life of 6000 times, and includes an intelligent fire protection system with high-sensitivity sensors and perfluorohexanone extinguishing agent.
Supplier Introduction: This supplier is both a manufacturer and a trader. They offer quality control services as well as comprehensive customization services, including design customization and sample customization. Their main export destinations are Africa, Australia and Iraq. The customer satisfaction rate is as high as 92.5%.
product description
Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 18 pcs In Series
241KWH ESS with 105KW PCS and Solar Charging System
Energy Storage System(ESS)
LiFePO4 Battery: 768V/314AH
Battery Voltage Range: 672~864V
Power Conversion System(PCS)
Rated Power: 105KW
Rated AC Voltage: 230/400V, 50/60Hz
AC Voltage Range: 230/400V, 50/60Hz
DC Voltage Range: 615~950V
Solar Charger
Max. PV Charge Power: 100KW
Max. PV Input Voltage: 900V
MPPT Voltage Range: 0~900V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP Parallel and off-grid switching power off for 30-50 seconds
Outdoor Three-cabin Cabinet
Size: 2100*1210*2150mm
Air Conditioner, 1500W, 2 sets
Fire Fighting System
Number Of PV Arrays Inputs: 10
Max Single PV Array Current: 15A
Fuse Current: 20A
Wire Number Of Each PV Input: PG9
Number Of Output: 2
Maximum Output Current: 75A*2
Wire Number Of Output: PG25
Maximum Output Voltage: 1000VDC
IP Rate: IP65
Working Temperature: -30℃ ~ +60℃
Product Dimensions: 750*460*180mm
Product Net Weight: 20.5kg
Flat Roof Mounting Structure
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m²
4mm² PV cable: 100m, Red
4mm² PV cable: 100m, Black
25mm² PV cable: 20m, Red
25mm² PV cable: 20m, Black
MC4 Connector, Male Plug
MC4 Connector, Female Plug
Copper Lug: 25mm²
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
