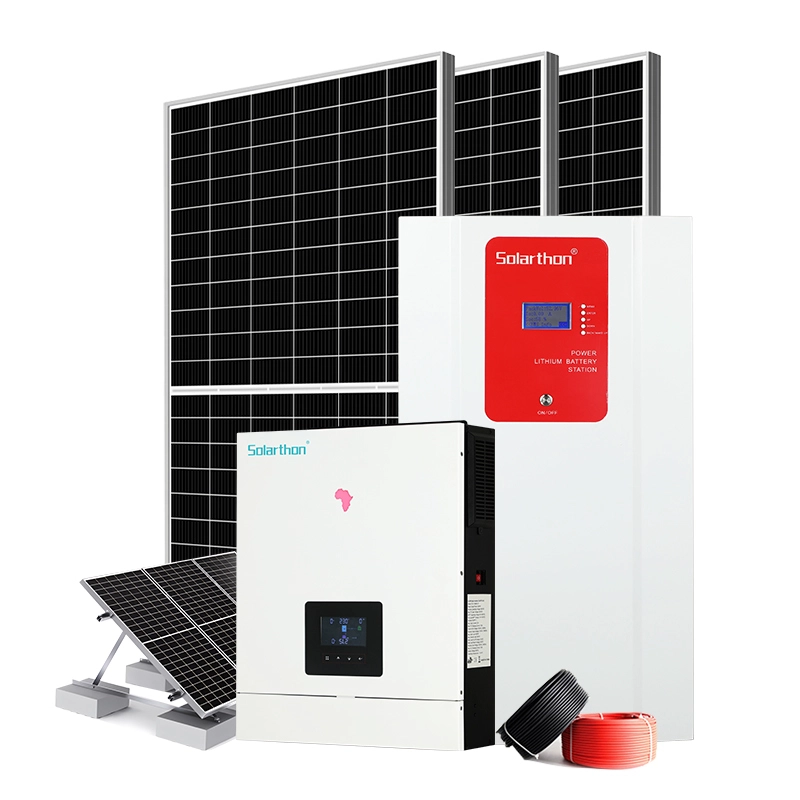

solar power system full set off grid energy storage solar system panel for home
Effortlessly command your energy with the THON Solar Inverter (On/Off Grid) intuitive control panel.Designed with user experience in mind, the panel offers: Clear Display,Simple Navigation,Immediate Feedback, LED indicators for AC/INV, CHG, and FAULT provide real-time operational alerts.Our control panel is the gateway to a smarter energy solution, placing the power to monitor and adjustright in the palm of your hand.
product description
Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 6 pcs In Series
4.2KW Solar Inverter (On/Off Grid)
Battery Voltage: 25.6VDC
Full Load: 4200W
Nominal Operating Voltage: 240VDC
Maximum PV Input Voc: 500VDC
PV Input Voltage Range: 60-450VDC
Maximum PV Input Current: 18A
Full Load MPPT Range: 240-450VDC
Maximum PV Input Power:4200W
Nominal Output Voltage: 230VAC, 50/60Hz
Maximum PV Charge Current: 140A
Nominal AC Input Voltage: 230VAC, 50/60Hz
Maximum AC Charging Current: 100A
Communication: RS232/GPRS/WIFI/LITHIUM BATTERY
Product Size: 443*359*113mm
Net Weight: 8.8kg
Warranty: 3 Years
25.6V 200AH Battery Pack
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 21.6V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 720*355*167mm
Weight: 30kg
Warranty: 5 years
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
4mm2 PV Wire, Red, 20m
4mm2 PV Wire, Black, 20m
4mm2 PV Wire, Black, 2m
25mm2 PV Wire, Red, 5m
25mm2 PV Wire, Black, 5m
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
