Solar Energy System Hybrid 50kw Solar Power System 1ooKw 2ooкw Solar PlantPower Station
5.0
Certification:
CE/ISO9001/RoHS/3C/CQC//UL/TUV
Delivery Time:
5-15 days
Packing:
L/C, D/A, D/P, T/T, Western Union, Money Gram
Payment Terms:
OEM/ODM Customized
Start Port:
guangzhou ,shenzhen, zhuhai
Supply Ability:
5000 PCS/Month
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

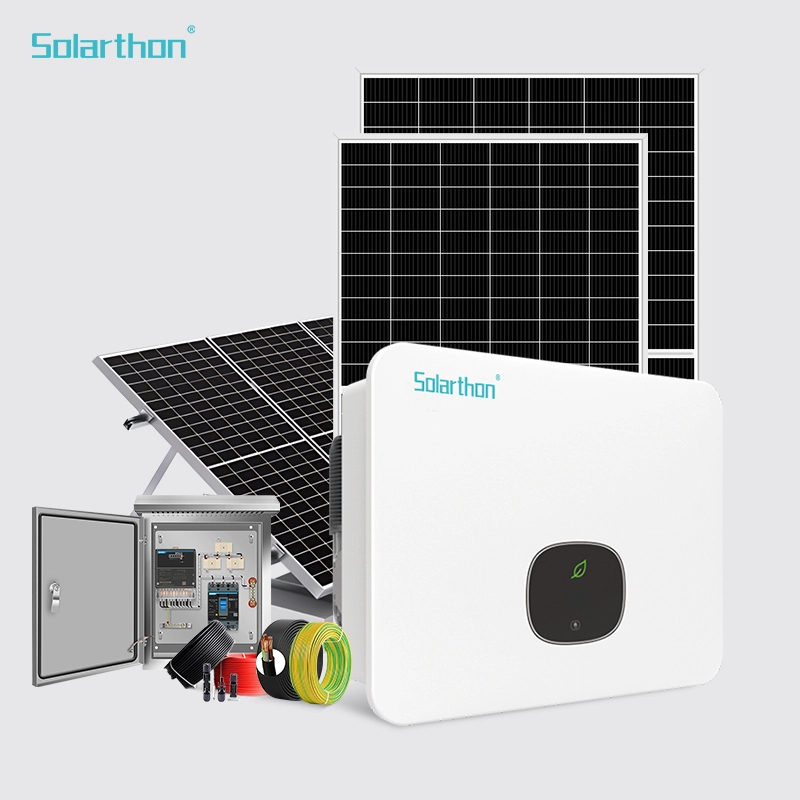

Complete Home Energy Solution: The Complete Alltop 3Phase Hybrid Grid Complete Solar Energy Panel System is a comprehensive solution for homeowners looking to transition to renewable energy. This system is ideal for users like you who want to reduce their reliance on the grid and lower their energy bills.
product description
550W mono Half Cell PERC solar panel
Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 15 pcs In Series
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 15 pcs In Series
50KW On Grid Solar Inverter
Rated Output Power: 50KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 4/2
MPPT Rated Voltage: 600V
MPPT Voltage Range: 200~1000V
Max. Input Current Of Each MPPT: 32A
Max. Efficiency: 98.8%
Protection Class: IP66
Size: 580x435x230mm
Weight: 37kg
Warranty: 5 Years
Attachment
Flat Roof Mounting Structure
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
AC Distribution Box/Cabinet
Reliable Thunderstorm& Surge Protection & Breaker
Protection Class: IP65
Size: 540x400x140mm
Weight: 8kg
4mm2 PV Wire: 100m, Red
4mm2 PV Wire: 100m, Black
MC4 Connector, Male Plug
MC4 Connector, Female Plug
AC Cable: 4*25mm2, 10m
BVR-6mm AC Wire: 100m
BVR-10mm AC Wire: 10m
Showroom
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
