Solar Battery 105KW 241KWH Hybrid Energy Storage System Battery Energy Storage System Container Ess Storage System
|
Item No. |
DQ1907D105K-01 |
|
Energy Storage System(ESS) |
|
|
LiFePO4 Battery |
768V/314AH |
|
Battery Voltage Range |
672~864V |
|
Power Conversion System(PCS) |
|
|
Rated Power |
105KW |
|
Rated AC Voltage |
230/400V, 50/60Hz |
|
AC Voltage Range |
230/400V, 50/60Hz |
|
DC Voltage Range |
615~950V |
|
Solar Charger |
|
|
Max. PV Charge Power |
100KW |
|
Max. PV Input Voltage |
900V |
|
MPPT Voltage Range |
0~900V |
|
Energy Management System(EMS) |
|
|
LCD monitor, RS485, CAN, TCP/IP |
|
|
Outdoor Three-cabin Cabinet |
|
|
Size |
2100*1150*2150mm |
| Air Conditioner, 1500W, 2 sets | |
| Fire Fighting System | |
The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment.
241KWH ESS with 105KW PCS and Solar Charging System

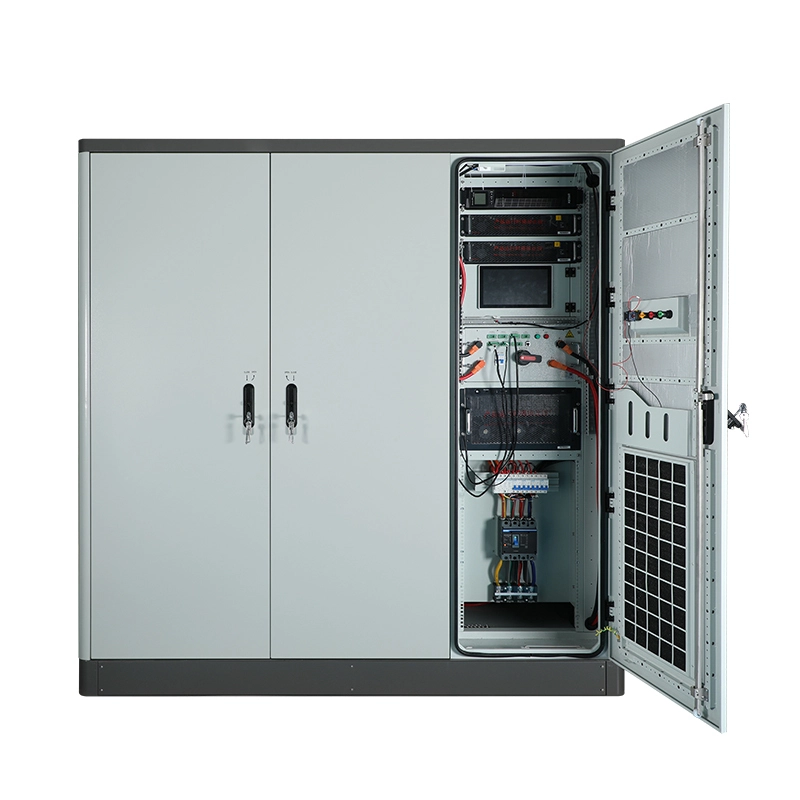

The cabinet is integrated with battery management system (BMS), energy management system (EMS),modular power conversion system (PCS),and fire protection system.The system's capacity is up to 241 kwh and the power is up to 105 kw.
The modular design allows for flexible expansion, adapting to various scenarios such as power expansion and backup power supply.
241KWH ESS with 105KW PCS and Solar Charging System
241KWH ESS with 105KW PCS and Solar Charging System
Our All-in-One energy storage system is wall-mounted or floor-installable, Versatile and space-saving, it ensures reliable power conversion and uninterrupted operation for residential and small commercial applications. With high-quality components and advanced control features, our All-in-One system delivers stable and sustainable energy supply for your home or business.
