Item No. |
ST-F512184 |
|
Nominal Voltage |
51.2V |
|
Capacity |
184Ah |
|
Nominal Energy |
9.42kWh |
|
Discharge Voltage |
51.2V |
|
Charge Voltage |
57V |
|
Cont. Charge Current |
40A |
|
Cont. Discharge Current |
100A |
|
Max. Discharge Current |
150A |
|
Operating temperature |
0℃ ~ 45℃ (Charge)/-20℃ ~ 60℃(Discharge) |
| DOD | 100% |
| Communication | RS485/RS232/CAN |
| Cycle Life | >3000 |
| IP Grade | IP50 |
| Installation | Cabinet/Wall/Floor mount |
| Dimension | 720*490*160mm |
| Intallation | wall mounted and portable |
| Warranty | 3 Years |
Feature highlights:This Home Battery Power Wall features a Grade A LiFePO4 cell with an impressive cycle life of ≥6000times and a built-in intelligent BMS system ensuring stability and balance. Equipped with a touchable screen for easy operation, it supports up to 6 parallel connections and offers flexible compatibility with major inverter brands. Certifications include CE, UN38.3, MSDS, UKCA, EMC, and FCC, ensuring compliance with international safety standards and providing market access assurance.Supplier highlights:This supplier is a manufacturer and trader, offering quality control, full customization, design customization, and sample customization with a customer satisfaction rate of 90.9%.
Adopts modular design, higher integration, saving installation space; adopts high performance lithium iron phosphate cathode material, good core consistency, design service life of more than 10 years; one key switch machine, front operation, front wiring.
Various functions, with single over-voltage /under-voltage, total voltage under-voltage / over-voltage, charge/ discharge over-current, high temperature, low temperature, insulation and short circuit protection and recovery functions.
Achieve higher energy supply, lower energy consumption, and reduce environmental pollution; adopt all-round, multi-level battery protection strategy and fault isolation measures to ensure the safe operation of the system.

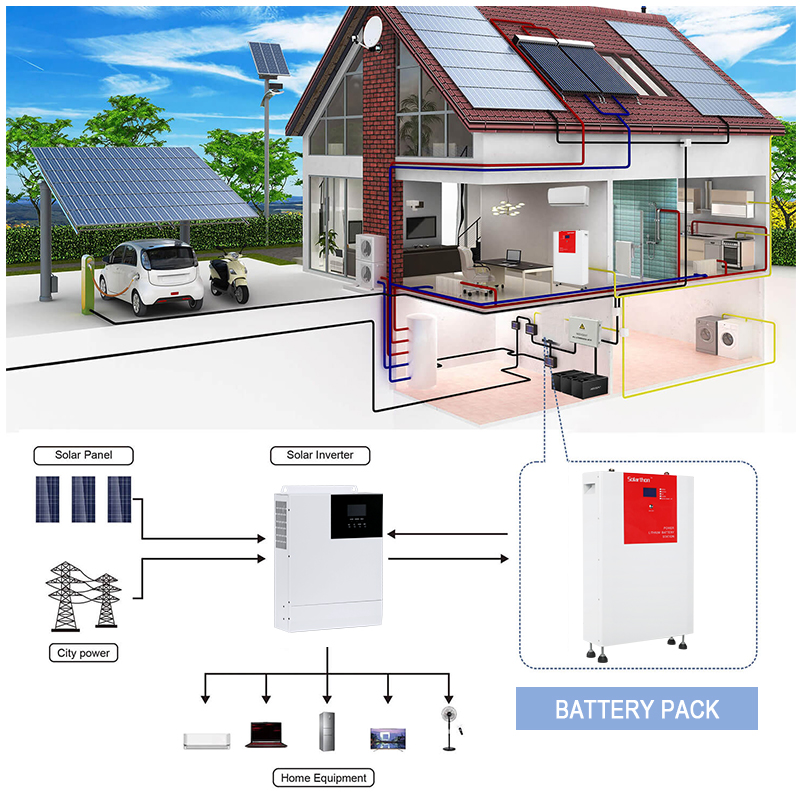

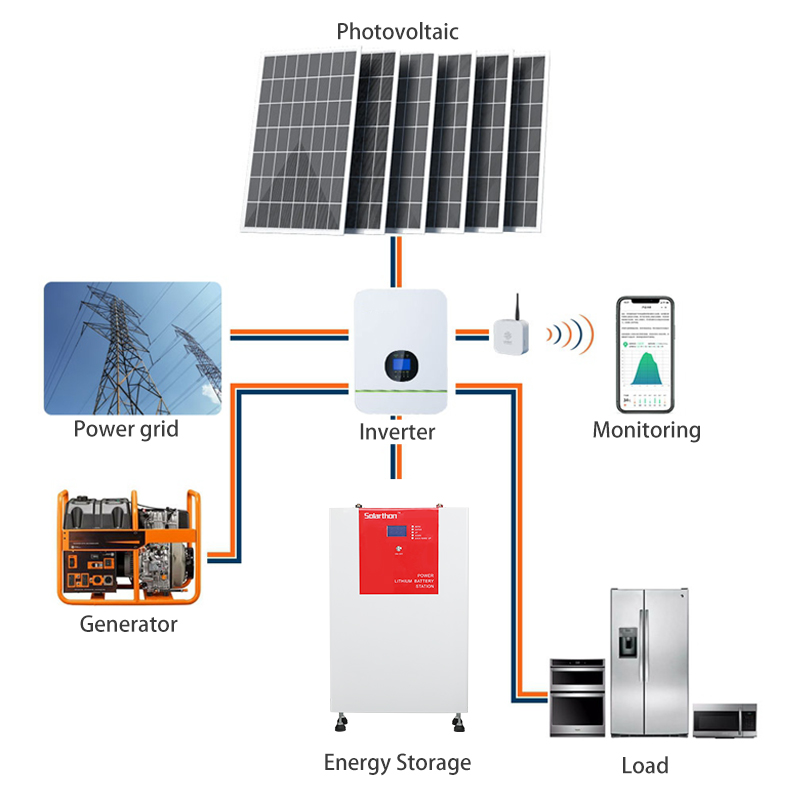

Seamless docking with UPS, photovoltaic power generation and other main equipment; communication interface forms, CAN/RS 485 and so on can be customized according to customer needs, convenient system remote monitoring and flexible use.
