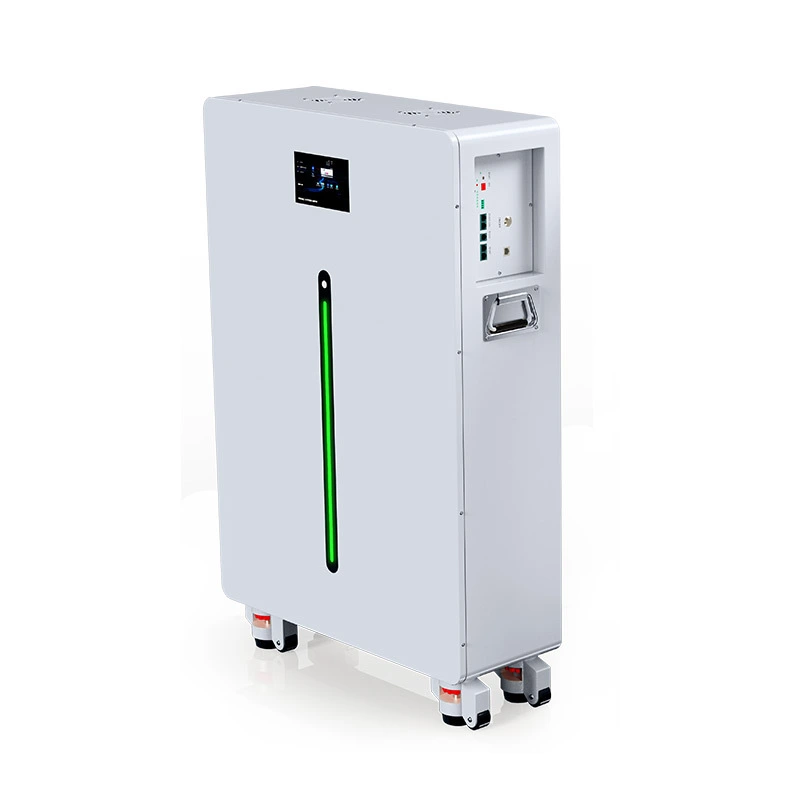

Portable Solar Battery System Lithium Iron Phosphate Energy Storage for Home Use Rack-Mounted Solar Battery Pack
|
Item No. |
ALF24100-01 | ALF24200-01 | ALF24300-01 | ALF52100-01 | ALF52230-01 | ALF52280-01 | ALF52314-01 | ALF52628-01 |
|
Battery Type |
LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
|
Nominal Voltage |
25.6V | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
|
Nominal Capacity |
100Ah | 200Ah | 300Ah | 100Ah | 230Ah | 280Ah | 314Ah | 628Ah |
|
Charging Cut-off Voltage |
29.2V | 29.2V | 29.2V | 58.4V | 58.4V | 58.4V | 58.4V | 58.4V |
|
Discharging Cut-off Voltage |
22.4V | 22.4V | 22.4V | 44.8V | 44.8V | 44.8V | 44.8V | 44.8V |
|
Max. Cont. Charging/Discharging Current (30s) |
100A | 200A | 200A | 200A | 200A/200A | 300A/300A | 300A/300A | 300A/300A |
|
Max. Cont. Discharging Current |
50A | 80A | 80A | 75A | 115A | 140A | 150A | 230A |
|
Continuous Charge/Discharge Current |
6 sets | 6 sets | 6 sets | 6 sets | 6 sets | 6 sets | 6 sets | 6 sets |
|
Max. Number Of Parallel |
≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 |
|
Cycle Life |
430*456*156mm | 635*456*156mm | 635.5*456.5*249.5mm | 635*456*156mm | 470*245*750mm | 470*245*910mm | 470*245*910mm | 1705*250*1065mm10kg |
|
Weight |
29.5kg(Estimated weight) | 51kg(Estimated weight) | 68kg(Estimated weight) | 53kg(Estimated weight) | 97kg(Estimated weight) | 120kg(Estimated weight) | 120kg(Estimated weight) | 230kg(Estimated weight) |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
This product belongs to one of our self-designed and developed household energy storage product series. It is used for energy storage and energy supply of household, commercial, UPS and other electrical equipment.
No memory effect: Lithium-ion battery has no memory effect, which means that the battery can be charged and discharged at any time without affecting its service life.
High energy density: The energy density of lithium-ion battery is much higher than that of lead-acid battery and nickel-cadmium battery, which means that the volume and weight of the battery can be reduced, and the battery can store more energy.
Environmental protection: Lithium-ion battery is a green and environmental-friendly battery, which does not contain any toxic substances and has low pollution to the environment.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
