OEM With CE Certification High-efficiency 20kw 40KWh energy storage system BESS For I&C Energy Storage
The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment.
The control system manages, optimizes energy use, and protects battery life.
product description
Vmp: 41V Voc: 49.2V Imp 13.45A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 14 pcs in series

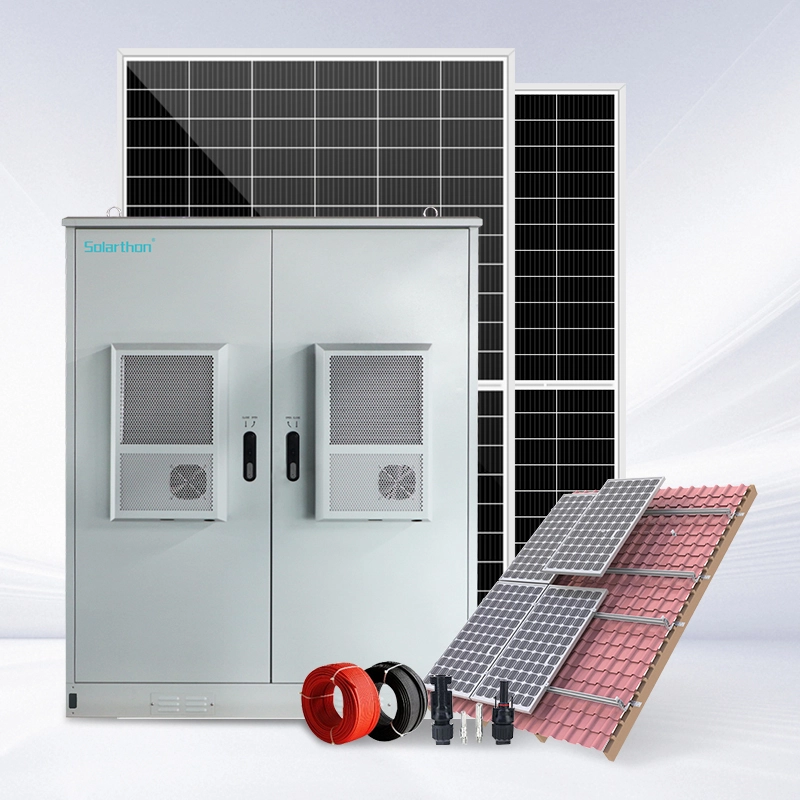

40KWH ESS with 20KW PCS and Solar Charging System
Energy Storage System(ESS)
LiFePO4 Battery: 409.6V/100AH
Battery Voltage Range: 358.4~467.2V
Power Conversion System(PCS)
Rated Power: 20KW
Rated AC Output Voltage: 380V, 50Hz
AC Input Voltage Range: 380V
DC Input Voltage Range: 160-700V
Solar Charger
Max. PV Charge Power: 26KW+26KW
Max. PV Input Voltage: 1000V
MPPT Voltage Range: 150-850V
Outdoor Three-cabin Cabinet
Size: 1750*1355*990mm
Air Conditioner, 600W, 2 sets
Fire Fighting System
Slope Roof Mounting Structure
wind load: 55m/s,snow load:1.5kn/m2
structure: Anodized Aluminum
6mm2 PV cable: 100m, Red
6mm2 PV cable: 100m, Black
MC4 Connector, Male Plug
MC4 Connector, Female Plug
The application elds of industrial and commercial energy storage include separately configured energy storage systems, photovoltaic+energy storage integrated systems (referred to as optical storage systems), microgrids, etc. The industrial and commercial energy storage system mainly consists of batteries, BMS, PCS (bidirectional converter system), electrical circuits and protection, and EMS system. The industrial and commercial energy storage system has the opportunity to participate in electricity market-oriented transactions. In addition to providing local power security, possessing energy management and automatic switching functions for microgrids, EMS also needs to consider participating in power demand side response functions.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
