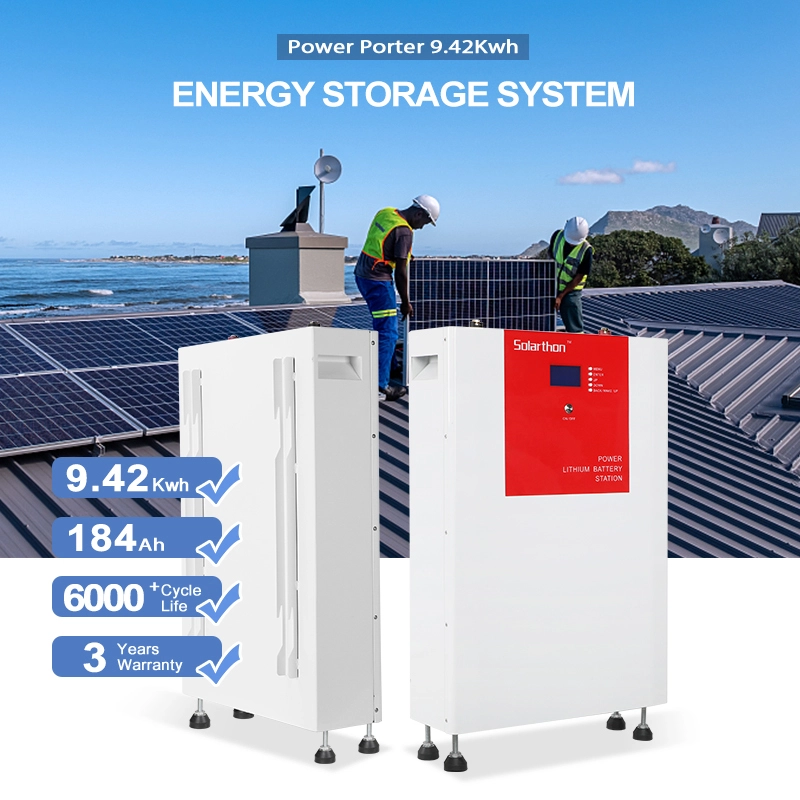

OEM ODM Power Wall Solar Home Rechargeable Battery 48V 100AH Household Solar Energy Storage Battery Pack
|
|
|||
|
Item No. |
STF48190 | STF512240 | STF48190 | STF512240 |
|
Nominal Voltage |
48V | 51.2V | 48V | 51.2V |
|
Capacity |
190Ah | 240Ah | 190Ah | 240Ah |
|
Nominal Energy |
9.72kWh | 12.28kWh | 9.72kWh | 12.28kWh |
|
Discharge Voltage |
51.2V | 45~54V | 51.2V | 45~54V |
|
Charge Voltage |
57V | 51.5V~54V | 57V | 51.5V~54V |
|
Cont. Charge Current |
40A | 100A | 40A | 100A |
|
Cont. Discharge Current |
100A | 100A | 100A | 100A |
|
Max. Discharge Current |
150A | 125A | 150A | 125A |
|
Cont. Discharge DC Power |
\ | 5000W | \ | 5000W |
|
Max. Discharge DC Power |
\ | 10000W/ More than 2 units in parallel | \ | 10000W/ More than 2 units in parallel |
| Operating temperature | 0℃ ~ 45℃ （Charge）/-20℃ ~ 60℃（Discharge） | 0℃ ~ 45℃ （Charge）/-20℃ ~ 45℃（Discharge） | 0℃ ~ 45℃ （Charge）/-20℃ ~ 60℃（Discharge） | 0℃ ~ 45℃ （Charge）/-20℃ ~ 45℃（Discharge） |
| DOD | 100% | 90% | 100% | 90% |
| Communication | RS485/RS232/CAN | CAN2.0 / RS485 | RS485/RS232/CAN | CAN2.0 / RS485 |
| Cycle Life | ＞3000 | ＞6000 | ＞3000 | ＞6000 |
| IP Grade | IP50 | IP31 | IP50 | IP31 |
| Installation | Cabinet | Wall or Floor mount | Cabinet | Wall or Floor mount |
| Dimension | 448*200*700mm | 900*460*200mm | 448*200*700mm | 900*460*200mm |
| Weight | 70kg | 112kg | 70kg | 112kg |
| Warranty | 3 Years | |||
1.National High-Tech Enterprise
2.Diesel and lead acid replacement
3.Home smart energy management
4.Safe, efficient, green energy
5.Large capacity energy storage lithium iron phosphate battery
. Compact size• High efficiency
• Easy installation• High energy density
• Excellent safety of LiFePO4 Cells
* When the temperature is below 0°C or above 45°C, the performance will be limited.
CIRCUIT DIAGRAM
• High power input and available energy ratio
• Modular design, expandable system
• Safest battery and perfect compatibility
• Natural cooling, easy installation
• Certification available
provide one-stop new nergy equipment in , including high-quality solar panels, dominant nverters and batteries which can ensure best performance by supporting higher utput power, more stable power supply and longer lifespan.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
