We are a leading manufacturer of solar power utilization and lighting systems

New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw 5kw Hybrid System 1

New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw 5kw Hybrid System 2

New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw 5kw Hybrid System 3

New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw 5kw Hybrid System 4

New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw 5kw Hybrid System 5

New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw 5kw Hybrid System

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Money Gram

Service:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000PCS/Month

Inquiry

Write a Review

Item No.	STKM-10212	STKM-10212	STKM-10212	STKM-10212
Rated Power	1000W	2000W	3000W	5000W
Output Voltage	220VAC	220VAC	220VAC	220VAC
Output Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Input Voltage	220VAC	220VAC	220VAC	220VAC
Input Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Maximum AC Charge Current	10A	30A	30A	30A
Maximum PV Array Power	400W	1600W	3200W	3200W
Max PV Input Voltage(Voc)	150VDC	150VDC	150VDC	150VDC
MPPT Tracking Voltage Range	15-150VDC	30-150VDC	60-150VDC	60-150VDC
Maximum PV Charge Current	30A	60A	60A	60A
Battery Voltage	12VDC	24VDC	48VDC	48VDC
Operating Temperature	-15℃-50℃	-15℃-50℃	-15℃-50℃	-15℃-50℃
Storage Temperature	-20℃-50℃	-20℃-50℃	-20℃-50℃	-20℃-50℃
Dimension	420x321x125mm	545x461x170mm	545x461x170mm	545x461x170mm

product description

product-New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw 5kw Hybr

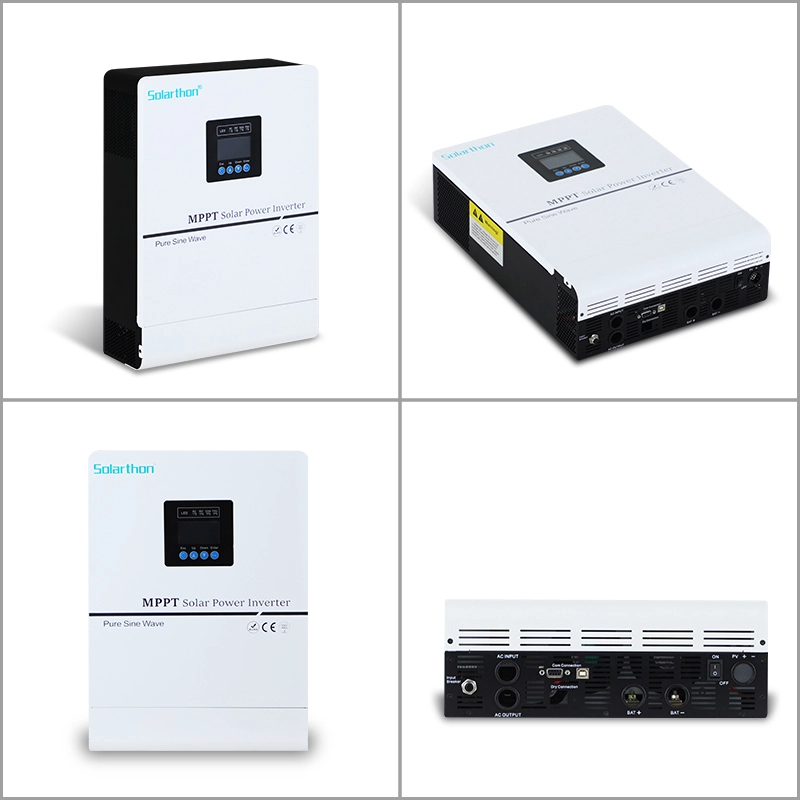

HYBRID SOLAR INVERTER

Solar power system is an off-grid solar generator designed to provide stable and reliable power to homes and communities or areas without or even electricity without access to grid power. The solar system is characterized by convenient movement, easy installation, and reliable performance, which is very suitable for situations requiring emergency power.

product-ALLTOP -New Arrival High Efficiency Off Grid System Solar Energy Storage System 1kw 2kw 3kw

PRODUCT FEATURES

1. Grid mode/battery mode can be set for flexible application.

2. Intelligent fan control, safe and reliable

3. The pure sine wave output can accommodate various types of loads.

4. Wide input voltage range, high-precision automatic output voltage function.

5. LCD real-time display of equipment parameters and operating status at a glance.

MULTIPLE ANGLES

It's comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current. AC/solar charger priority, and acceptable input voltage based on different application.

Front panel instructions

LCD display and function key operation interface, can display the working status of the equipment, such as: Input / output voltage, frequency, mains mode, the inverter mode, battery capacity, charge current, charge the total load capacity, waning tips
