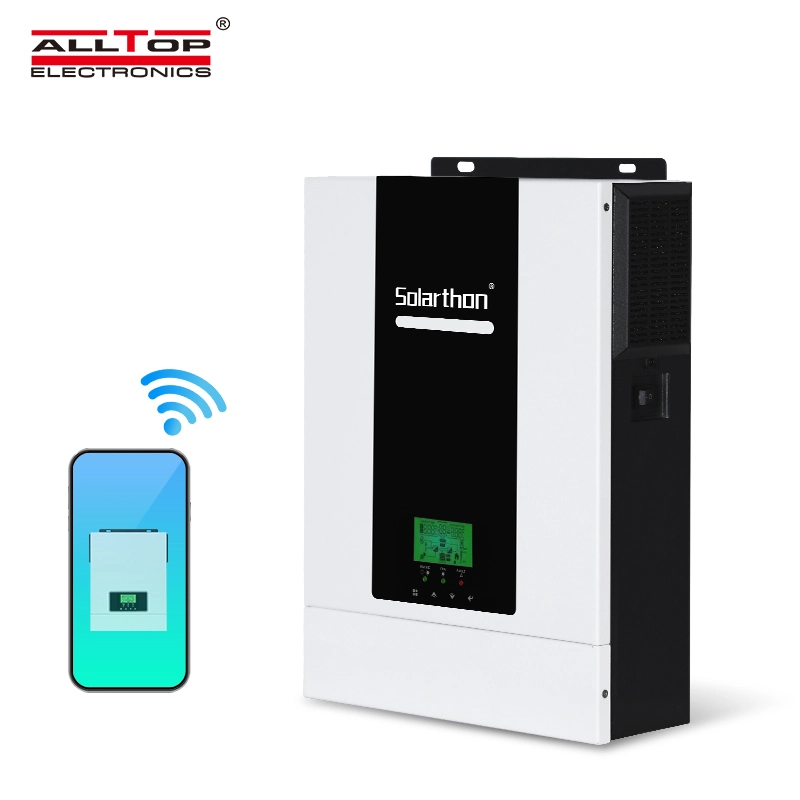

MPPT Solar Inverter Hybrid Inverter Solar Battery Packwith Built in Wall

    oops...!

    no product data.

    Go to homepage

    Item No.

    STN16212

                                            STN30224

    Rated Power

    2000VA/1600W

    3200VA/3000W

    Surge Power

    4000VA

    6400VA

    Selectable Voltage Range

                                      170-280VAC(For Personal Computers)/ 90-280VAC(For Home Appliances)

    Frequency Range

     50 Hz/60Hz(Auto Sensing)

    50 Hz/60Hz(Auto Sensing)

    AC Output Voltage

    230VAC

                                             230VAC

    Efficiency(Peak)PV To INV

    98%

    Battery Voltage

    12VDC

                               24VDC

    Communication Interface

    RS232/GPRS/WIFI

    Product Size

    273x357x95mm

                               273x357x95mm

    Warranty

    3 years

    product description
    product-MPPT Solar Inverter Hybrid Inverter Solar Battery Packwith Built in Wall-ALLTOP -img

    SOLAR INVERTER





    This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.



    product-ALLTOP -MPPT Solar Inverter Hybrid Inverter Solar Battery Packwith Built in Wall-img


    FEATURES



    1.Pure sine wave solar inverter

    2.Output power factor 1.0

    3.Wifi&gprs available for ios and android

    4.Built-in80a mppt solar charger

    5.High pv input voltage range(30-400vdc)

    6.Built-in anti-dusk kit for harsh environment

    7.Smart battery charge design to optimize battery life

    8.Meet the rich customize needs of customers

    9.Compatibe with lithium battery

    10.Solar energy is provided directly to the load first

    product-ALLTOP -img


    BASIC SYSTEM ARCHITECTURE

    The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:

    1.Generator or Utility.

    2.PV modules

    Consult with your system integrator for other possible system architectures depending on your requirements.

    This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

    product-ALLTOP -img

    SYSTEM CONNECTION DIAGRAM

    The diagram below shows the system application scenario of this product. A complete system consists of the following components:

    The actual application scenario determines the specific system wiring method.

    product-ALLTOP -img


    INSTALLATION

    Consider the following points before selecting where to install:

    1.Do not mount the inverter on flammable construction materials.

    2.Mount on a solid surface

    3.Install this inverter at eye level in order to allow the LCD display to be read at all times.

    4.For proper air circulation to dissipate heat, allow a clearance of approx. 20 cm to the side and approx. 50 cm above and below the unit.

    5.The ambient temperature should be between 0C and 55C to ensure optimal operation.

    6.The recommended installation position is to be adhered to the wall vertically.

    7.Be sure to keep other objects and surfaces as shown in the diagram to guarantee sufficient heat dissipation and to have enough space for removing wires.
