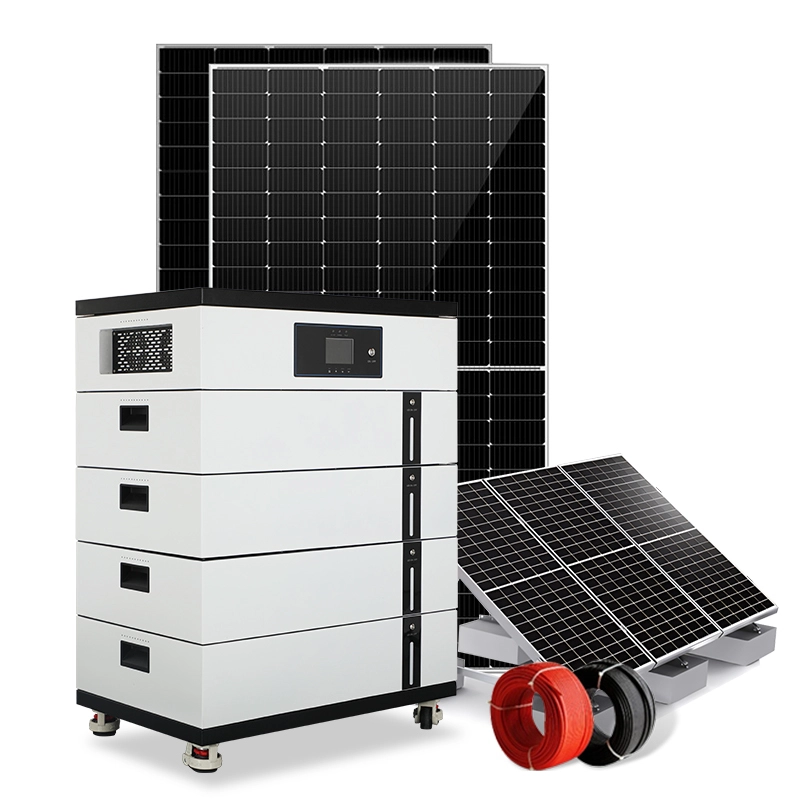

40KWH Solar Power System 10KW Complete Solar System 20KW Solar Energy System for Home off Grid Full Set
- Pure sine wave inverters;
- Integrated MPPT controller/charger;
- Settable priority of utility and PV power supply.
- Wide PV input voltage;
- Using LiFePO4 battery, the battery has undergone strict safety testing, and the charging speed is fast, high temperature resistant, green environmental protection, non-toxic and pollution-free.
- Functions and parameters can be set via the LCD;
- With battery equalization function to optimize battery performance and extend battery life.
5.0
Certification:
CE/ISO9001/RoHS/3C/CQC//UL/TUV
Delivery Time:
5-15 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, Money Gram
Service:
OEM/ODM Customized
Start Port:
guangzhou ,shenzhen, zhuhai
Supply Ability:
5000 PCS/Month
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
The Energy Storage Controller Inverter integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipmentin areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LcD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.
product description
550W mono Half Cell PERC solar panel
Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 9 pcs In Series
40KWH ESS with 20KW PCS and Solar Charging System
10KW/40KWH Flat Layer Stacked Energy Storage
Rated Power: 10KW
LiFePO4 Battery:800Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 60A/150A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 150A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 750*480*1025mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
Slope Roof Mounting Structure
Flat Roof Mounting Structure
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m²
4mm² PV Wire, Red, 20m
4mm² PV Wire, Black, 20m
4mm² PV Wire, Black, 2m
SYSTEM SCHEMATIC
The following figure shows the system application scenario of this product. A complete system includes the following parts:
1. Photovoltaic module: Convert light energy into DC electric energy, charge the battery through energy storage inverter, or directly reverse it into AC to power the load.
2 Utility or generator. Connected at the AC input, it can supply power to the load and can also operate normally, when the load poweris provided by the battery and PV module. charge the battery at the same time. If no utility or generator is connected, the system
3. Battery: The role of the battery is tb ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.
4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air condifioners and other ACloads.
5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.
2 Utility or generator. Connected at the AC input, it can supply power to the load and can also operate normally, when the load poweris provided by the battery and PV module. charge the battery at the same time. If no utility or generator is connected, the system
3. Battery: The role of the battery is tb ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.
4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air condifioners and other ACloads.
5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.
Showroom
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Applications
