We are a leading manufacturer of solar power utilization and lighting systems

Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 1
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 2
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 3
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 4
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 5
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 6
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 1
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 2
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 3
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 4
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 5
Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 6

Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet

    oops...!

    no product data.

    Go to homepage

    Item No.

    215KWH ESS with 100KW PCS and Solar Charging System 145KWH ESS with 50KW PCS

    Energy Storage System(ESS)

    LiFePO4 Battery

    768V/280AH 768V/280AH

    Battery Voltage Range

    672~864V  672~864V

    Power Conversion System(PCS)

    Rated Power

    100KW 100KW

    Rated AC Voltage

    400V, 50/60Hz 400V, 50/60Hz

    AC Voltage Range

     320~460V, 50/60Hz 320~460V, 50/60Hz

    DC Voltage Range

    420~850V  420~850V

    Solar Charger

    Max. PV Charge Power

    120KW /
    Max. PV Input Voltage 1000V /
    MPPT Voltage Range 250~850V /
    Energy Management System(EMS)
    LCD monitor, RS485, CAN, TCP/IP
    Outdoor Three-cabin Cabinet
    Size 2700*1100*2550mm 2300*1100*2550mm
    Air Conditioner, 600W, 2 sets
    Fire Fighting System
    product description
    product-ALLTOP -img

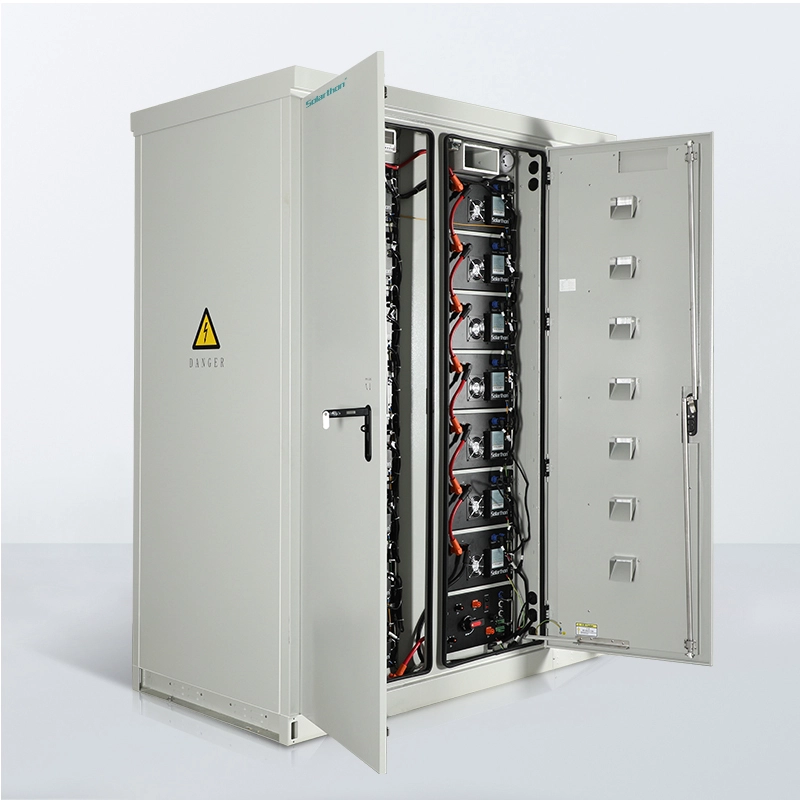

    DC672-864V 215KWH Distributed ESS Cabinet



    The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment.




    product-ALLTOP -img

    215kwh commercial & industrial energy storage system adopts the all in one design concept.

    The cabinet is integrated with battery management system (BMS), energy management system (EMS),modular power conversion system (PCS),and fire protection system.The system's capacity is up to 215 kwh and the power is up to 100 kw.

     The modular design allows for flexible expansion, adapting to various scenarios such as power expansion and backup power supply.

    product-ALLTOP -Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor

    DC672-864V 215KWH Distributed ESS Cabinet
    The application fields of industrial and commercial energy storage include separately configured energy storage systems, photovoltaic+energy storage integrated systems (referred to as optical storage systems), microgrids, etc. The industrial and commercial energy storage system mainly consists of batteries, BMS, PCS (bidirectional converter system), electrical circuits and protection, and EMS system. The industrial and commercial energy storage system has the opportunity to participate in electricity market-oriented transactions. In addition to providing local power security, possessing energy management and automatic switching functions for microgrids, EMS also needs to consider participating in power demand side response functions.
    Showroom
    Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor cabinet 10
    Attached installation manual
    Match installation screw
    We use K=K strong white carton outer package
    Printing the product pictures on the boxes
    Applications



    product-ALLTOP -img
    product-ALLTOP -Industrial Commercial Energy storage Solar Hybrid Inverter all in one System outdoor
    product-ALLTOP -img-1
