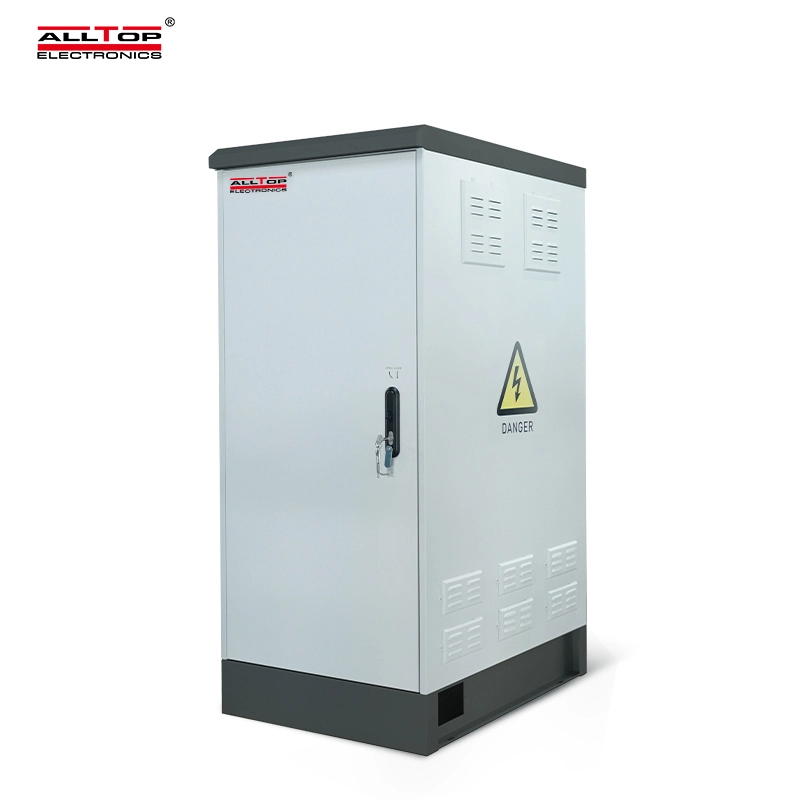

High Voltage 28kWh Energy Storage Cabinet Liquid Cooling All-in-One Lithium lon Battery for Industrial Commercial Solar Systems

DQ1908A6K2-01 is a small-capacity PV ESS solution provided through its long-term accumulation in the fields of ESS integration and digital monitoring technology. Adopting an integrated design concept, it highly integrates equipment such as lithium battery ESS, inverter, HVAC, FSS, and BCQ. This product has a more compact structure, is easy to install, and offers flexible expansion. It supports multiple operation modes such as self-use, peak shaving, and backup power.

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Packing:

L/C, D/A, D/P, T/T, Western Union, Money Gram

Payment Terms:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Write a Review

Item No.	DQ1908A6K2-01
DC Parameters
Battery Type	Lithium iron phosphate
Cycle Life	≥6000
Cell Specification	3.2V 280AH
Battery Cluster Specifications	2P16S
Number Of Battery Clusters	1 Cluster
Battery Rated Capacity	28KWH
Nominal Voltage	51.2VDC
Operating Voltage Range	45~58VDC
AC Parameters
Rated AC Power	6.2KW
Rated Voltage	AC230V
Maximum AC Current	26.9A
Grid Frequency	50/60HZ
MPPT Charger
Maximum DC Input Power	6.5KW
Maximum DC Input Voltage	500VDC
Starting Voltage	90VDC
MPPT Voltage Range	60-450VDC
DC Rated Input Voltage	360VDC
PV Input Current	22A
MPPT Input	1 channel
Size(WDH)	8986521518mm
Weight	132kg
Warranty	5 years

product description

High Voltage 28kWh Energy Storage Cabinet Liquid Cooling All-in-One Lithium lon Battery for Industrial Commercial Solar Systems 8

6.2KW/28KWH Outdoor Ess Cabinet

DQ1908A6K2-01 series outdoor energy storage cabinet integrates energy storage batteries, modular PCS, energy management monitoring system, power distribution system, environmental control system, and fire control system. It adopts modular PCS for easy maintenance and expansion. The outdoor cabinet adopts front maintenance to reduce the occupied area and maintenance channel. It has the characteristics of safe and reliable operation, fast deployment, low cost, high energy efficiency, and intelligent management.

High Voltage 28kWh Energy Storage Cabinet Liquid Cooling All-in-One Lithium lon Battery for Industrial Commercial Solar Systems 9

6.2KW/28KWH Outdoor Ess Cabinet

The internal layout of the line is neat and refreshing, easy to use, but also give people beautiful and generous visual enjoyment..

High Voltage 28kWh Energy Storage Cabinet Liquid Cooling All-in-One Lithium lon Battery for Industrial Commercial Solar Systems 10

6.2KW/28KWH Outdoor Ess Cabinet

● The energy storage cabinet consists of 2 51.2V 280AH battery packs, and the

51.2V 560AH DC source supplies power to the inverter;

● Adopt 6.2KW hybrid inverter, support mains, solar energy, battery input at the

same time;

● Optional mains priority or solar priority mode to supply power to the load, when

there is no mains or insufcient solar energy, the battery will supply power to the

load;

● Mains and solar power can charge the battery at the same time;

● High voltage battery, higher efciency, low caloric value;

● Built-in 4 x 65W fans;

High Voltage 28kWh Energy Storage Cabinet Liquid Cooling All-in-One Lithium lon Battery for Industrial Commercial Solar Systems 11

6.2KW/28KWH Outdoor Ess Cabinet

Our integrated Outdoor Ess Cabinet has a wide range of uses, saves space, ensures reliable power conversion and uninterrupted operation, and is suitable for residential and small commercial applications. With high-quality components and advanced control functions, our Outdoor Ess Cabinet provides a stable and sustainable energy supply for your home or enterprise.

Showroom

High Voltage 28kWh Energy Storage Cabinet Liquid Cooling All-in-One Lithium lon Battery for Industrial Commercial Solar Systems 12

Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes

Applications
