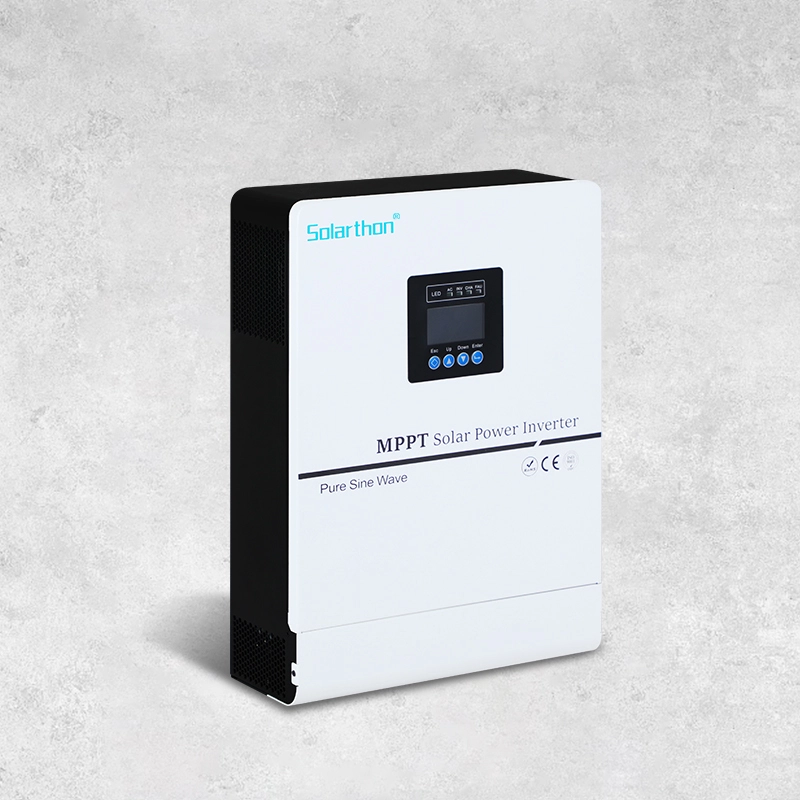

High Frequencymppt Hybrid mppt charge controller solar inverter
|
Item No. |
STKH-30224 |
STKH-50248 |
|
Rated Power |
3000W |
5000W |
|
Output Voltage |
220VAC |
220VAC |
|
Output Frequency |
50/60Hz |
50/60Hz |
|
Surge Power |
6000VA |
10000VA |
|
Input Voltage |
220VAC |
220VAC |
|
Input Frequency |
50/60Hz |
|
|
Maximum AC Charge Current |
60A |
80A |
|
Maximum PV Array Power |
1500W |
5500W |
|
Max PV Input Voltage(Voc) |
145VDC |
450VDC |
| MPPT Tracking Voltage Range |
30-115VDC |
120-430VDC |
|
Maximum PV Charge Current |
60A |
80A |
| Battery Voltage |
24VDC |
48VDC |
|
Communication interface |
USB/RS232/GPRS/WIFI |
|
| Operating Temperature |
0℃-55℃ |
0℃-55℃ |
| Storage Temperature |
-15℃-60℃ |
|
| Dimension | 439x320x128mm | 439x320x128mm |
Solar power system is an off-grid solar generator designed to provide stable and reliable power to homes and communities or areas without or even electricity without access to grid power. The solar system is characterized by convenient movement, easy installation, and reliable performance, which is very suitable for situations requiring emergency power.
PRODUCT FEATURES
1. Excellent heat dissipation design and intelligent controlled cooling fan.
2. 12VDC/24VDC/48VDC tracking technology, the conversion rate of up to 97%
3. Quick scan of the entire I-V curve. Efficient track the maximum power point.
4. Three types of lead-acid battery, sealed, colloid, open type battery and lithium battery series charging procedures are optional.
5. With the functions of over charge, over discharge, overload and short circuit automatic protection.
6. With RS485 communicate interface. It can communicate with multiple and the upper computers, which is convenient to check the operating parameters of the controller.
7. The pure sine wave inverter is set up via LCD.
8. The input voltage range of home appliances and personal computers can be configured.
9. Battery charging current configurable via LCD setting, AC/solar charger configurable via LCD setting.
10. Compatible with supply voltage or generator power supply.
11. Automatic rest when the air conditioner is restored.
LED DISPLAY
Night view display, so that the operation is clearer.avoid operation errors can be dealt with in time.
The solar system is equipped with multiple charging ports and provides two different voltage mode outputs, AC and DC, which can power multiple devices at the same time.
FAST CHARGING EFFICIENCY
High quality solar panels, fast full charge, sunlight charging conversion efficiency up to 20%.
