ESS Lifepo4 Battery 20KW 40KW 60KW 77KW High Voltage Stackable Lithium Solar Battery Home Energy Storage Battery
5.0
Certification:
CE/ISO9001/RoHS/3C/CQC//UL/TUV
Delivery Time:
5-15 days
Packing:
L/C, D/A, D/P, T/T, Western Union, Money Gram
Payment Terms:
OEM/ODM Customized
Start Port:
guangzhou ,shenzhen, zhuhai
Supply Ability:
5000 PCS/Month
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Item No. |
DQ2910A20-01 |
DQ2910B40-01 |
DQ2910C60-01 |
DQ2910D77-01 |
|
Battery Type |
LiFePO4 |
LiFePO4 |
LiFePO4 |
LiFePO4 |
|
Nominal Voltage |
204.8V |
409.6V |
614.4V |
768V |
|
Nominal Capacity |
100Ah |
100Ah |
100Ah |
100Ah |
|
Charging Cut-off Voltage |
230.4V |
460.8V |
691.2V |
865V |
|
Discharging Cut-off Voltage |
179.2V |
358.4V |
537.6V |
672V |
|
Max. Cont. Charging/Discharging Current |
100A |
100A |
100A |
100A |
|
Max. Instantaneous Charge/Discharge Current |
100A |
100A |
100A |
100A |
|
Cycle Life |
≥6000 |
≥6000 |
≥6000 |
≥6000 |
|
Product Size |
610.5*549*1020mm |
610.5*549*1604mm |
610.5*549*2188mm |
1099*610.5*1454mm |
|
Weight |
242kg |
443kg |
644kg |
813kg |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
product description

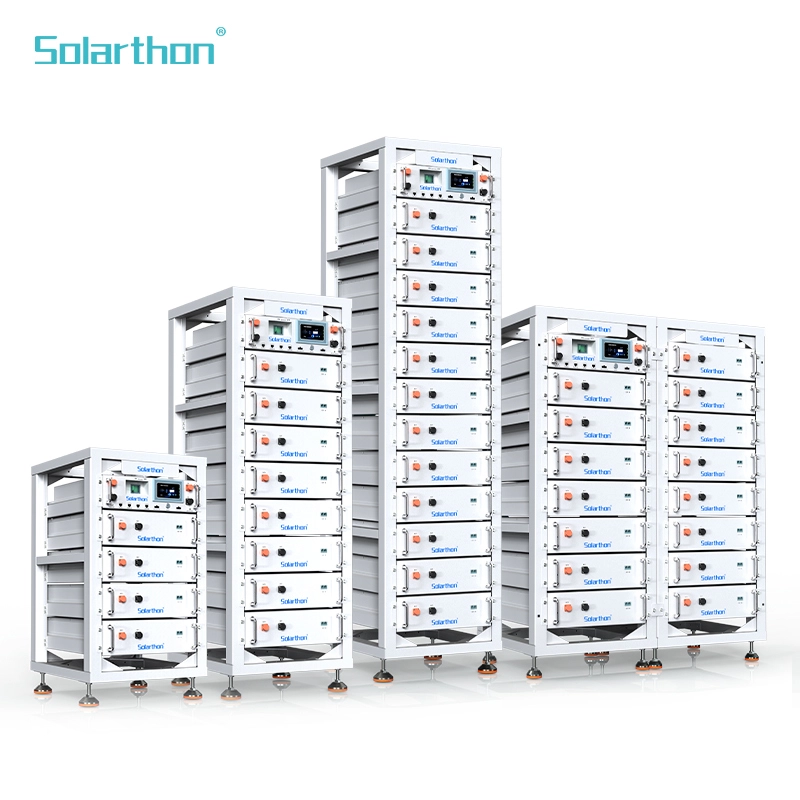

Vertically Stacked Energy Storage Battery Pack
20KWH/40KWH/60KWH/77KWH
Solarthon's DQ2910 series is an advanced system. The system consists of rack-mounted battery
modules, each with a capacity of 5.12 kWh. Multiple modules can be connected in series and
parallel to achieve the required storage capacity, and its modular and scalable architecture
provides exible capacities from 20.48kWh to 76.8kWh. Standardized 3U chassis design for easy
installation and maintenance.
Vertically Stacked Energy Storage Battery Pack
Key features of this battery pack include a service life of more than 10 years, integrated battery
management system protection, an operating temperature range of -20°C to 55°C, and a depth of
discharge of up to 90% for excellent energy. The intrinsically safe LiFePO4 chemistry also makes the
system reliable and environmentally friendly. Advanced monitoring and control capabilities to
optimize system performance and longevity.
Product Features
Flexible conguration
Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wi upgrade(optional), remote up grade(Compatible with Deyeinverter).
Eco-friendly
The whole module is non-toxic,non-polluting and environmentally friendl.
Wide temperature
Working temperature range is from
-20°℃ to 55℃, with excellent discharge
performance and cycle life.
Vertically Stacked Energy Storage Battery Pack
Convenient
Quick installation standard of 19-inch embedded designed module is comfortable for installation
and maintenance.
Safe and reliable
Cathode material is made from LiFePO4 with safety performance and long cycle life, The module
has less self-discharge, up to 6 months without charging it on shelf, nomemory effect, excellent
performance of shallow charge and discharge.
Intelligent BMS
It has protection functions including over-discharge,
over-charge, over-current and over-high or low
temperature. The system can automatically manage
charge and discharge state and balance current
and voltage of each cell.
Showroom
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Applications
