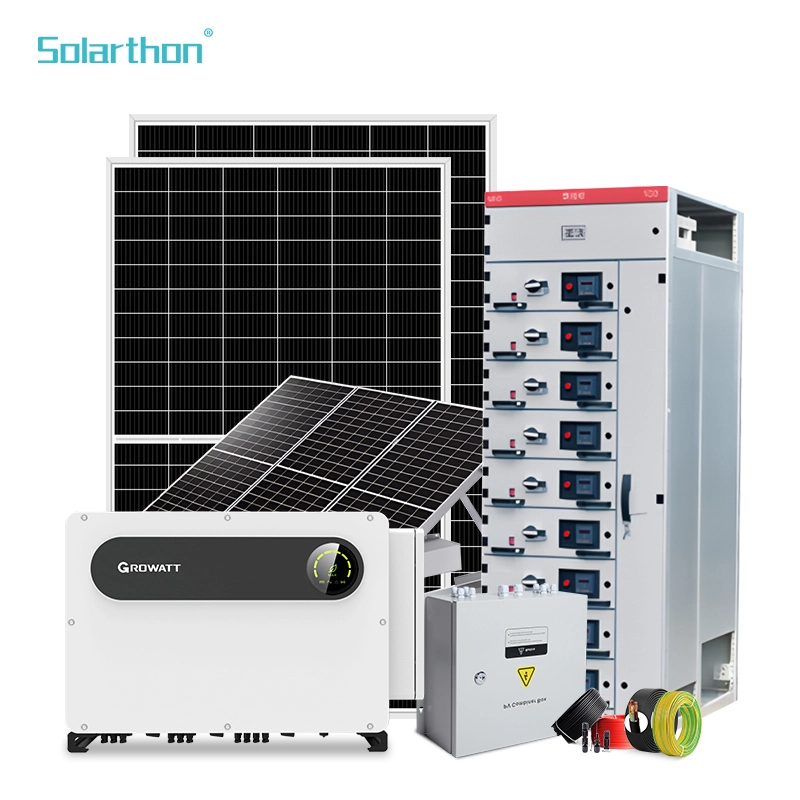

Complete Set Growatt Inverter Solar System 30kw 50kw 19.8MW All in One Full Set on Grid Solar PV System
Efficient Energy Harvesting: The Alltop Inverter Solar System is designed for commercial and industrial applications, allowing users to efficiently harness solar energy and reduce their reliance on the power grid. This makes it an ideal solution for organizations seeking to minimize their carbon footprint and save on energy costs.
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 18 pcs in series
Rated Output Power: 125KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 8/2
MPPT Rated Voltage: 600V
MPPT Voltage Range: 200~1000V
Max. Input Current Of Each MPPT: 32A
Max. Efficiency: 98.7%
Protection Class: IP66
Size: 970x640x345mm
Weight: 84kg
13 In 13 Out PV Lightning Arrester Box
Simplify Wiring Between PV Array And Controller;
Reliable Thunderstorm& Surge Protection
Product Size: 700x500x220mm
Weight: 10.8kg
Breaker：250A, 8pcs
Size: 600x2200x1000mm
Weight: 480kg
Flat Roof Mounting Structure
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
4mm2 PV cable: 100m, Red
4mm2 PV cable: 100m, Black
MC4 Connector, Male Plug
MC4 Connector, Female Plug
AC Cable: 4*120mm , 100m
AC Cable: 4*240mm , 100m
BVR-6mm AC Wire: 100m
BVR-10mm AC Wire: 100m
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
