We are a leading manufacturer of solar power utilization and lighting systems

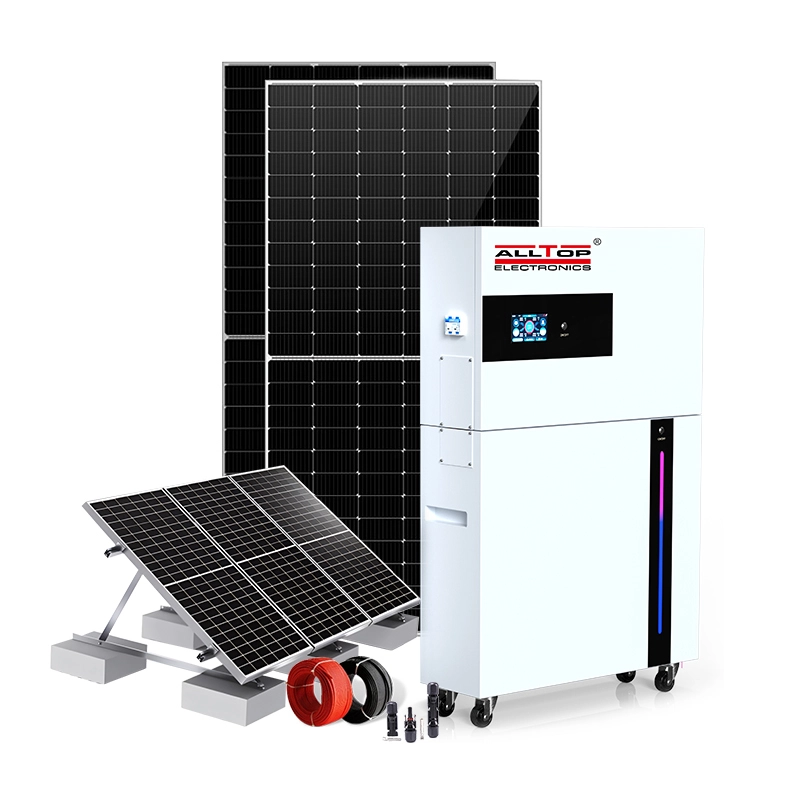

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 1

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 2

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 3

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 4

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 5

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 6

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 7

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Money Gram

Service:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Write a Review

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 8

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology,outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LCD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

product description

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 9

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%

Complete Set All-In-One Solar Power System 10KW Home All in One Offgrid Solar Power Energy System Kit 10

40KWH ESS with 20KW PCS and Solar Charging System

10KW All-In-One Solar Power System

Rated Power: 10KW
Lithium Battery: 300Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 90-450VDC
PV Charge Current: 150A
Maximum Input Current: 27A*2
Temperature For Operation: -10-+50℃
Temperature For Storage: -15 -+60℃
External Dimensions: 666*1157*220mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
