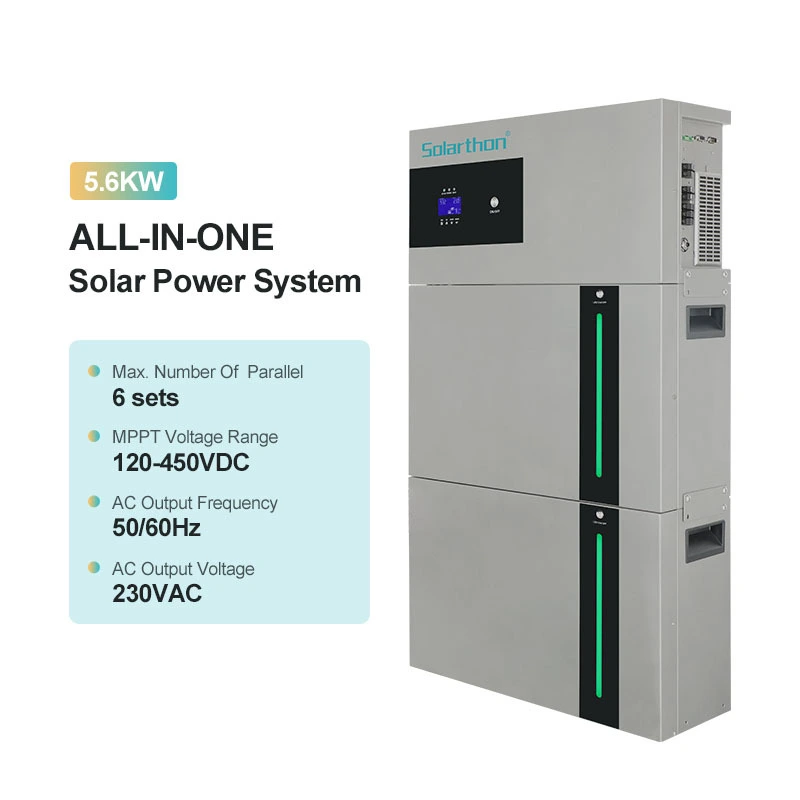

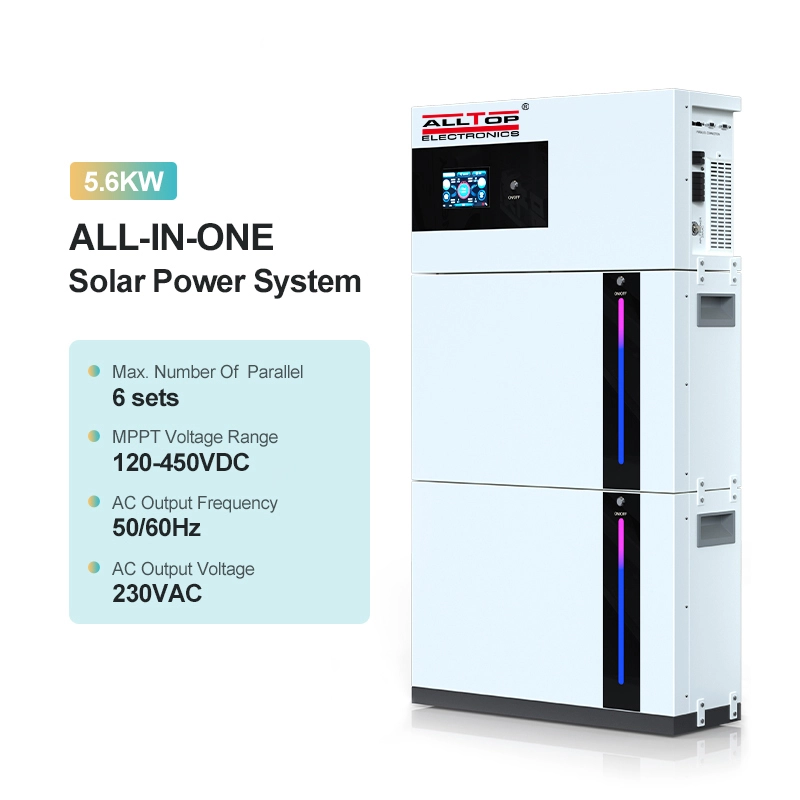

Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide
stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital
intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such
as household appliances, power tools, industrial equipment, electronic video and audio. LcD screen display design, real-time display of system
operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

    oops...!

    no product data.

    Go to homepage

    Item No.

    DQ1906B5K6-02

    DQ1906C5K6-02

    DQ1906D5K6-02

    Rated Power

    5.6kW

    5.6kW

    5.6kW

    Lithium Battery

    100Ah/51.2V

    200Ah/51.2V

    300Ah/51.2V

    AC Output Voltage

    230VAC

    230VAC

    230VAC

    AC Output Frequency

     50/60Hz

     50/60Hz

    50/60Hz

    AC Input Voltage Range

    230VAC

    230VAC

    230VAC

    AC Input Frequency

    50/60Hz

    50/60Hz

    50/60Hz

    Maximum AC innut current/charging current

    40A/60A

    40A/60A

    40A/60A

    Maximum PV Voltage

    450VDC

    450VDC

    450VDC

    Maximum PV Voltage

    450VDC

    450VDC

    450VDC

    MPPT Voltage Range

    120-450VDC

    120-450VDC

    120-450VDC

    PV Charge Current

    100A

    100A

    100A

    Temperature For Operation

    -20-+50℃

    -20-+50℃

    -20-+50℃

    Temperature For Storage

    -30 -+70℃

    -30 -+70℃

    -30 -+70℃

    External Dimensions

    590*196*700mm

    590*196*1070mm

    590*196*1440mm

    Max. Number Of  Parallel

    6 sets

    6 sets

    6 sets

    Warranty

    3 years

    3 years

    3 years

    product description
    Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 8

    All-In-One Solar Power System

    Erleben echte individuelle Hausenergie

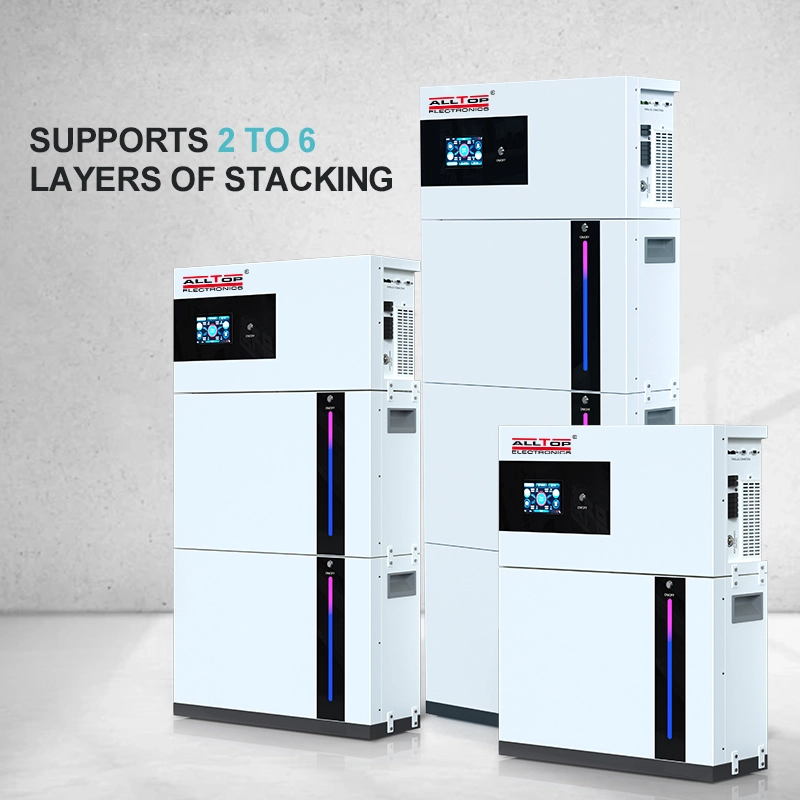

    Best Choise for Home Energy Storage/ESS Energy Storage System/Solar Storage/BESS/UPSBattery at most support 6 units in parallel connection to meet home use.



    Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 9

    All-In-One Solar Power System
    All-In-One Solar Power System

    All-In-One Solar Power System

    All-In-One Solar Power System
    ● One-stop home solution
    ● Modular design and intelligent switching
    ● Each battery is equipped with an independent BMS battery energy management system
    ● Support GPRS/WIFI/RS485, remote monitoring
    ● Warranty 3 years, 10+ years life design
    Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 10


    Functional characteristics

    ● Pure sine wave inverters;
    ● Integrated MPPT controller/charger;
    ● Settable priority of utility and PV power supply;
    ● Wide PV input voltage;
    ● Settable battery type, supporting lead-acid and lithium batteries;
    ● Functions and parameters can be set via the LCD;
    ● With battery equalization function to optimize battery performance and extend battery life.
    Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 11


    System diagram

    The following figure shows the system application scenario of this product. A complete system includes the following parts:

    1. Photovoltaic module: Convert light energy into DC electric energy, charge the
    battery through energy storage inverter, or directly reverse it into AC to power
    the load.
    2. Utility or generator: Connected at the AC input, it can supply power to the load
    and charge the battery at the same time. If no utility or generator is connected,
    the system can also operate normally, when the load power is provided by the
    battery and PV module.
    3. Battery: The role of the battery is to ensure the normal use of power for the
    system load when the solar energy is insufficient and there is no utility power.
    4. Household load: It can access various household and office loads, including
    refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.
    5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.
    Showroom
    Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 12
    Attached installation manual
    Match installation screw
    We use K=K strong white carton outer package
    Printing the product pictures on the boxes
    Applications



    Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 13Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 14Complete Home Solar Power System 5.6KW Solar Panel Systems With LiFePO4 Battery All in One Solution 15
