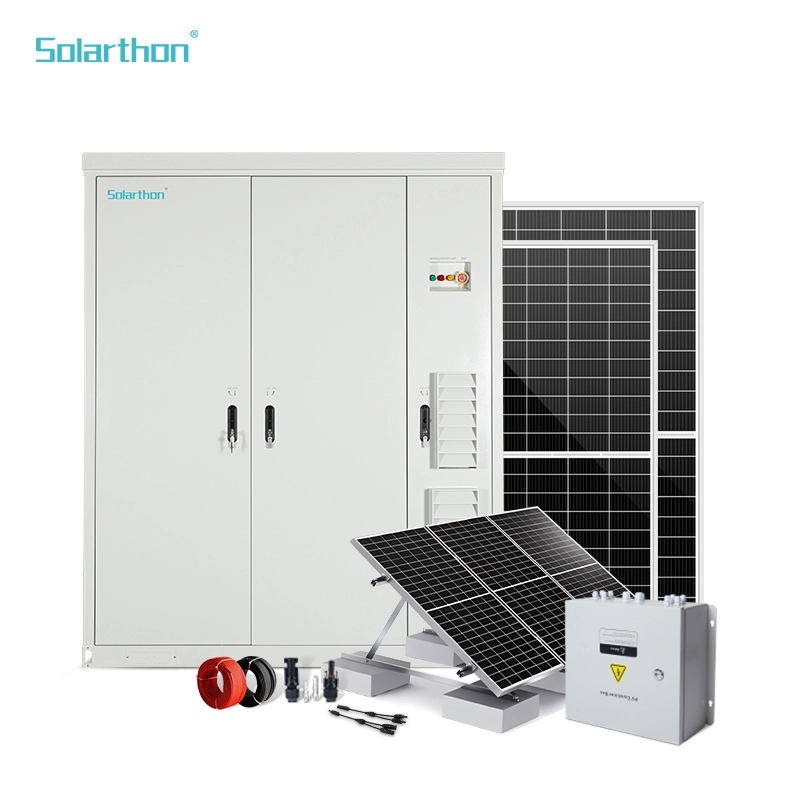

Complete 100KW 215KWH Grid System Solar Panel Kit Inverter Lithium lon Battery Hybrid System
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 12 pcs In Series
Energy Storage System(ESS)
LiFePO4 Battery: 768V/280AH
Battery Voltage Range: 672~864V
Power Conversion System(PCS)
Rated Power: 100KW
Rated AC Voltage: 400V, 50/60Hz
AC Voltage Range: 320~460V, 50/60Hz
DC Voltage Range: 420~850V
Solar Charger
Max. PV Charge Power: 120KW
Max. PV Input Voltage: 1000V
MPPT Voltage Range: 250~850V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP
Outdoor Three-cabin Cabinet
Size: 2700*1100*2550mm
Air Conditioner, 600W, 2 sets
Fire Fighting System
13 In 13 Out PV Lightning Arrester Box
Simplify Wiring Between PV Array And Controller;
Reliable Thunderstorm& Surge Protection
Product Size: 700x500x220mm
Weight: 10.8kg
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
4mm2 PV cable: 100m, Red
4mm2 PV cable: 100m, Black
25mm2 PV cable: 100m, Red
25mm2 PV cable: 100m, Black
MC4 Connector, Male Plug
MC4 Connector, Female Plug
Copper Lug: 25mm2
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
