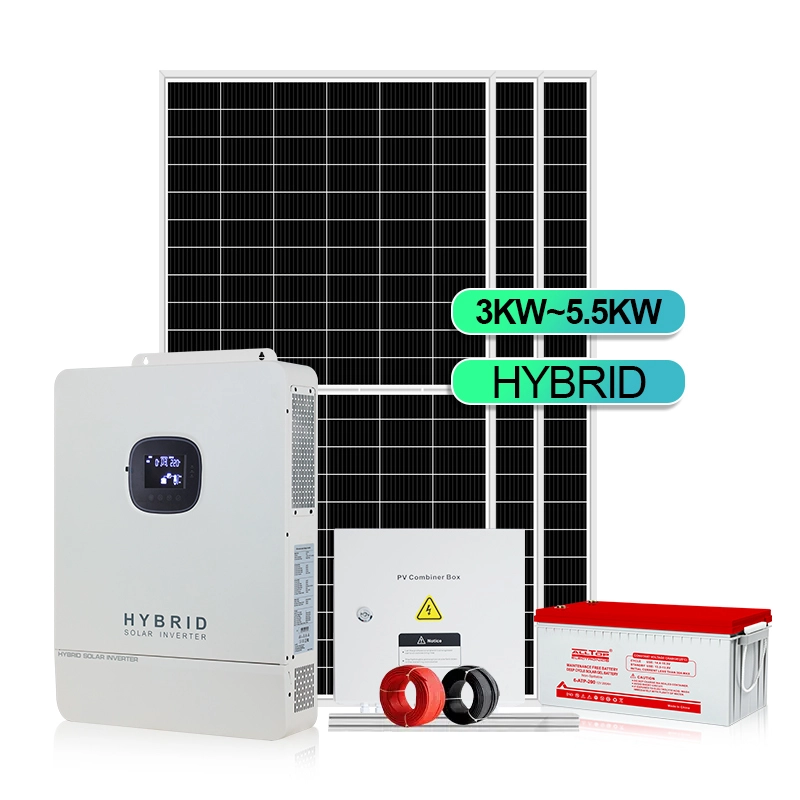

ALLTOP 2000Watt 3kw 5kw Solar Inverter For Solar Panel 5000W On Grid OFF Grid Solar System
Rated AC Input Voltage
| Model | STS20224 | STS33248 | STS50248 | STS50248B | STS35248U | STS50248U |
| Rated Power | 2000W | 3300W | 5000W | 5000W | 3500W | 5000W |
| Peak Power | 4000VA | 6000VA | 10000VA | 10000VA | 7000VA | 10000VA |
| Output Frequency |
50Hz / 60Hz |
|||||
| Load motor capability | 1HP | 2HP | 4HP | 4HP | 2HP | 4HP |
| Efficiency(AC Mode) | ＞92% | ＞92% | ＞90% | ＞92% |
＞91% | ＞90% |
| Output voltage waveform | Pure sine wave | |||||
| MPPT Tracking Voltage Range |
30V-85VDC |
60V-115VDC |
120V-450VDC |
120V-450VDC |
120V-450VDC |
120V-450VDC |
| Charging Mode | MPPT | |||||
| Max PV Input Current | 40A | 40A | 18A | 22A | 18A | 18A |
|
PV Array Maximum Power |
1600W | 3400W | 5200W | 5500W | 4400W | 5200W |
| Product Size(mm) | 378*280*103 | 378*280*103 | 426*322*126 | 426*322*126 | 426*322*124 | 426*322*126 |
| Intallation | wall mounted and portable | |||||
| Warranty | 3 years | |||||
Adopt fully digital voltage and current double closed-loop control, advanced SPWM technology, output pure sine wave.
It has two output modes: mains bypass and inverter output, and has the function of uninterrupted power supply.
There are 4 charging modes to choose from: solar only, mains priority, solar priority, and hybrid charging.
Advanced MPPT technology, the efficiency is as high as 99.9%.
LCD liquid crystal screen design, 3 LED indicators, dynamic display of system data and operating status.
The ON/OFF rocker switch controls the AC output.It has a power saving mode function to reduce no-load loss.
Adopt intelligent adjustable speed fan, efficient heat dissipation and prolong system life.
Built-in lithium battery activation function, support lead-acid battery, lithium battery access.With multiple protection functions, 360° all-round protection.
It has complete short-circuit protection, over- and under-voltage protection, overload protection, back-feed protection, etc.Both AC and photovoltaic can activate lithium batteries.
This series is a new hybrid solar energy energy storage inverter control integrated machine integrating solar energy storage & mains charging energy storage and AC sine wave output.It adopts DSP control and adopts advanced control algorithm, with high response speed and high reliability. and high industrial standards.
