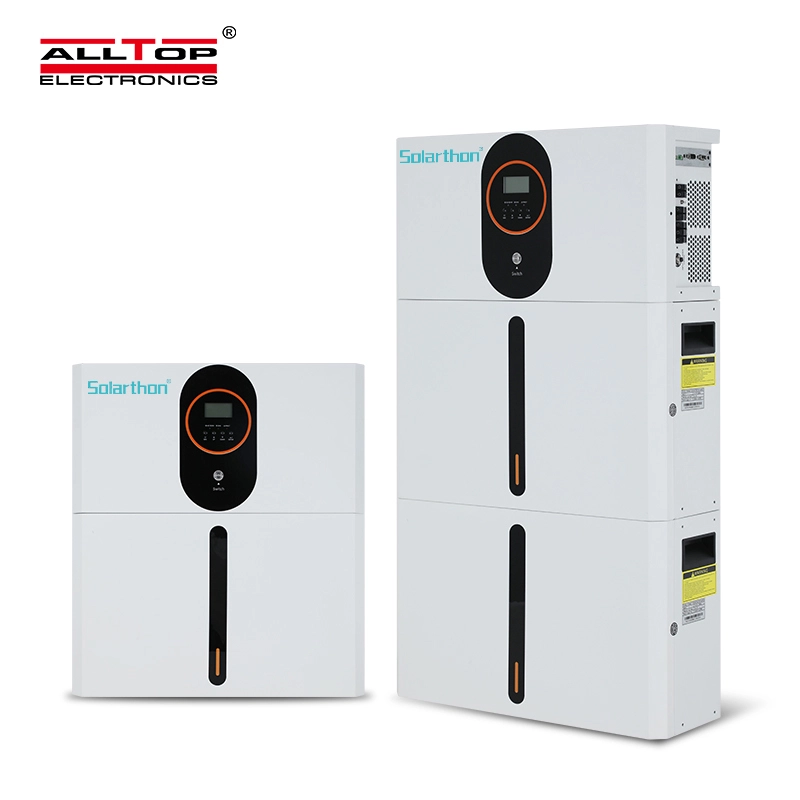

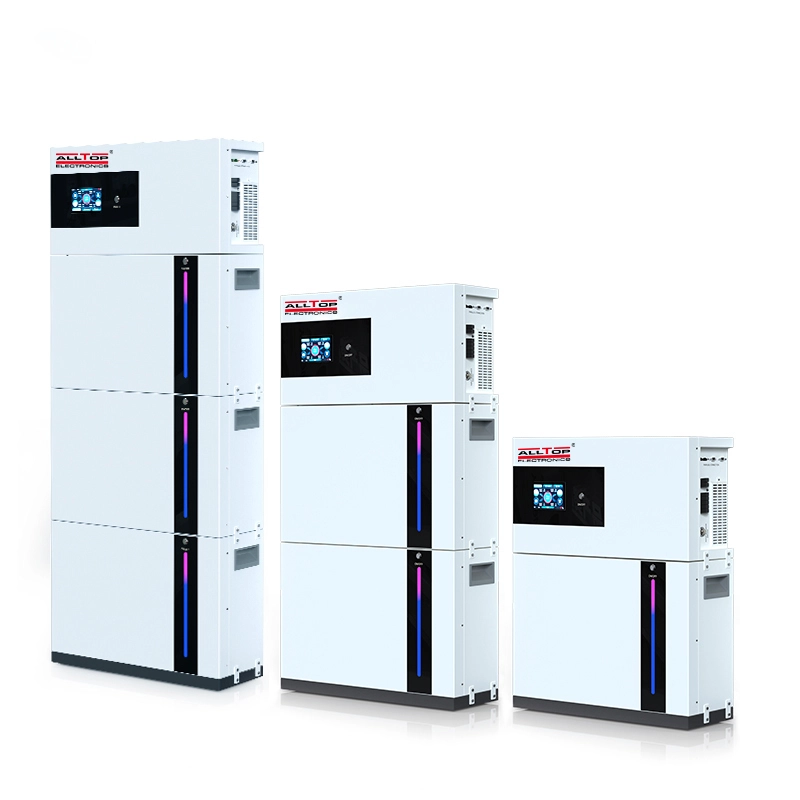

All-in-One Solar Power Home Energy Storage Systems LiFePO4 Battery With Hybrid Inverter 5kw High Voltage Battery System
|
Item No. |
DQ1906B6K2-01 |
DQ1906C6K2-06 |
DQ1906D6K2-01 |
| Rated Power | 6.2KW | 6.2KW | 6.2KW |
| Lithium Battery | 100Ah/51.2V | 200Ah/51.2V | 300Ah/51.2V |
| AC Output Voltage | 230VAC | 230VAC | 230VAC |
| AC Output Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| AC Input Voltage Range | 230VAC | 230VAC | 230VAC |
| AC Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Maximum AC innut current/charging current | 40A/80A | 40A/80A | 40A/80A |
| Maximum PV Voltage | 500VDC | 500VDC | 500VDC |
| MPPT Voltage Range | 120-450VDC | 120-450VDC | 120-450VDC |
| PV Charge Current | 100A | 100A | 100A |
| Temperature For Operation | -20-+50℃ | -20-+50℃ | -20-+50℃ |
| Temperature For Storage | -30 -+70℃ | -30 -+70℃ | -30 -+70℃ |
| External Dimensions | 590*196*700mm | 590*196*1070mm | 590*196*1440mm |
| Max. Number Of Parallel | 6 sets | 6 sets | 6 sets |
| Warranty | 3 years | 3 years | 3 years |
The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide
stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital
intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such
as household appliances, power tools, industrial equipment, electronic video and audio. LcD screen display design, real-time display of system
operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.
PRODUCT DESCRIPTION
● One-stop home solution
● Modular design and intelligent switching
● Each battery is equipped with an independent BMS battery energy management system
● Support GPRS/WIFI/RS485, remote monitoring
● Warranty 3 years, 10+ years life design
FUNCTIONAL FEATURES
● Pure sine wave inverters;
● Integrated MPPT controller/charger;
● Settable priority of utility and PV power supply;
● Wide PV input voltage;
● Settable battery type, supporting lead-acid and lithium batteries;
● Functions and parameters can be set via the LCD;
● With battery equalization function to optimize battery performance and extend battery life.
SYSTEM SCHEMATIC
The following figure shows the system application scenario of this product. A complete system includes the following parts:
1. Photovoltaic module: Convert light energy into DC electric energy, charge the
battery through energy storage inverter, or directly reverse it into AC to power
the load.
2. Utility or generator: Connected at the AC input, it can supply power to the load
and charge the battery at the same time. If no utility or generator is connected,
the system can also operate normally, when the load power is provided by the
battery and PV module.
3. Battery: The role of the battery is to ensure the normal use of power for the
system load when the solar energy is insufficient and there is no utility power.
4. Household load: It can access various household and office loads, including
refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.
5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device
of the whole system.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
