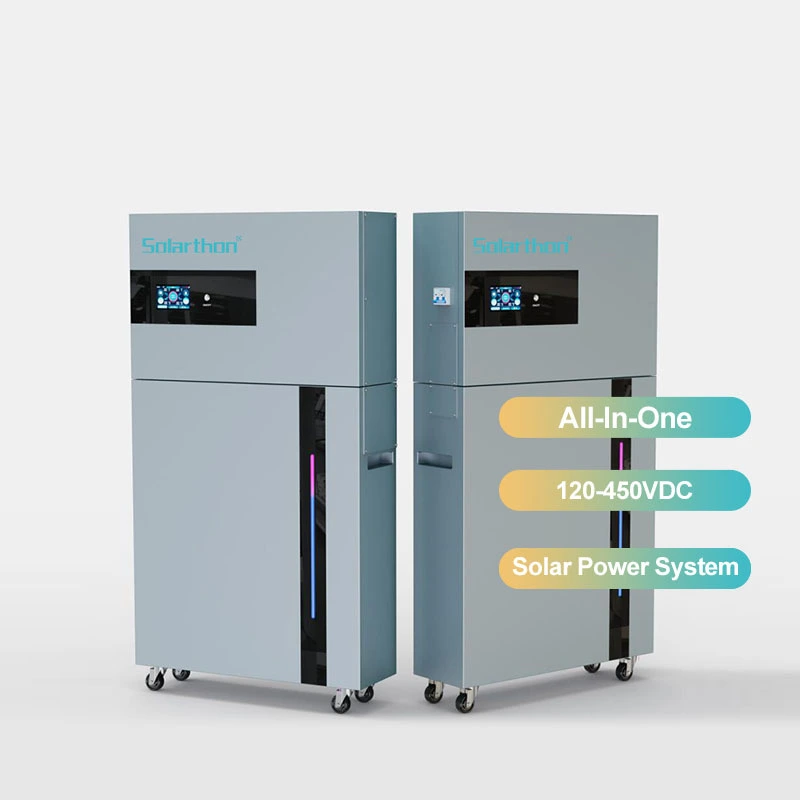

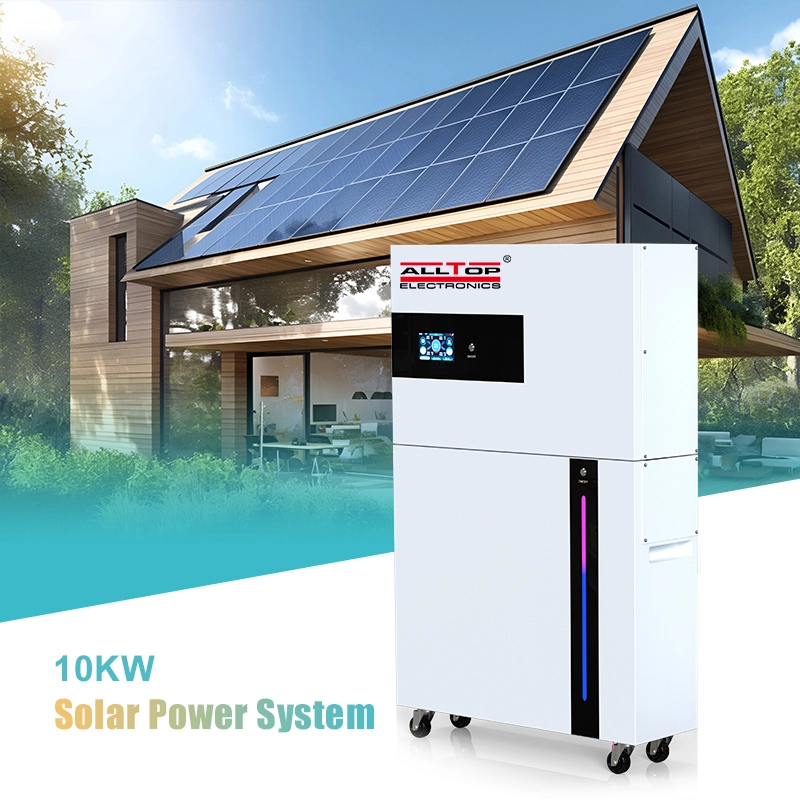

All in One Solar Inverter With 10KW Energy Storage Lithium lon Battery Scalable Module Solar Power System

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide
stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital
intelligent design with advanced SPWM technology,outputting pure sine wave, converting DC power into AC power, suitable for AC loads such
as household appliances, power tools, industrial equipment, electronic video and audio. LCD screen display design, real-time display of system
operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

    oops...!

    no product data.

    Go to homepage

    Item No.

    DQ1906E10K-02

    Rated Power

    10KW

    Lithium Battery

     300Ah/51.2V

    AC Output Voltage

    230VAC

    AC Output Frequency

     50/60Hz

    AC Input Voltage Range

    230VAC

    AC Input Frequency

    50/60Hz

    Maximum PV Voltage

    500VDC

    MPPT Voltage Range

    90-450VDC

    PV Charge Current

    150A

    Maximum Input Current

    27A*2

    Temperature For Operation

    -20-+50℃

    Temperature For Storage

    -30 -+70℃

    External Dimensions

    666*1157*220mm

    Max. Number Of  Parallel

    6 sets

    Warranty

    3 years

    product description
    All in One  Solar Inverter With 10KW Energy Storage Lithium lon Battery Scalable Module Solar Power System 8

    All-In-One Solar Power System

    The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide
    stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital
    intelligent design with advanced SPWM technology,outputting pure sine wave, converting DC power into AC power, suitable for AC loads such
    as household appliances, power tools, industrial equipment, electronic video and audio. LCD screen display design, real-time display of system
    operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.



    All in One  Solar Inverter With 10KW Energy Storage Lithium lon Battery Scalable Module Solar Power System 9


    Functional characteristics

    ● Pure sine wave inverters;
    ● Integrated MPPT controller/charger;
    ● Settable priority of utility and PV power supply;
    ● Wide PV input voltage;
    ● Settable battery type, supporting lead-acid and lithium batteries;
    ● Functions and parameters can be set via the LCD;
    ● With battery equalization function to optimize battery performance and extend battery life.
    All in One  Solar Inverter With 10KW Energy Storage Lithium lon Battery Scalable Module Solar Power System 10


    System schematic

    1. Photovoltaic module: Convert light energy into DC electric energy, charge the
    battery through energy storage inverter, or directly reverse it into AC to power
    the load.
    2. Utility or generator: Connected at the AC input, it can supply power to the load
    and charge the battery at the same time. If no utility or generator is connected,
    the system can also operate normally, when the load power is provided by the
    battery and PV module.
    3. Battery: The role of the battery is to ensure the normal use of power for the
    system load when the solar energy is insufficient and there is no utility power.
    4. Household load: It can access various household and office loads, including
    refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.
    5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device
    of the whole system.
    All in One  Solar Inverter With 10KW Energy Storage Lithium lon Battery Scalable Module Solar Power System 11


    All-In-One Solar Power System

    Our All-in-One energy storage system is wall-mounted or floor-installable, Versatile and space-saving, it ensures reliable power conversion and uninterrupted operation for residential and small commercial applications. With high-quality components and advanced control features, our All-in-One system delivers stable and sustainable energy supply for your home or business.

    Showroom
    All in One  Solar Inverter With 10KW Energy Storage Lithium lon Battery Scalable Module Solar Power System 12
    Attached installation manual
    Match installation screw
    We use K=K strong white carton outer package
    Printing the product pictures on the boxes
    Applications
