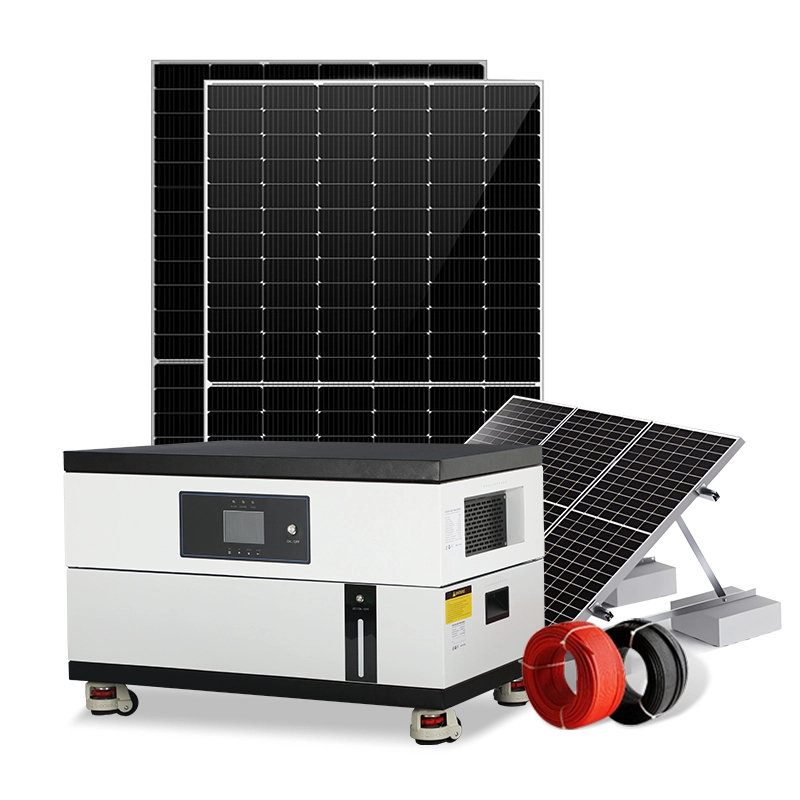

All in One Battery Solar System 2.75KW 5KWH Lifepo4 Lithium Energy Storage Battery
- One-stop home solution
- Modular design and intelligent switching
- Each battery is equipped with an independent BMS battery energy managem
- Support GPRS/WIFI/RS485, remote monitoring
- Warranty 3 years, 10+ years life design
product description
Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 5 pcs In Series
40KWH ESS with 20KW PCS and Solar Charging System
5.6KW/5KWH Flat Layer Stacked Energy Storage
Rated Power: 5.6KW
LiFePO4 Battery: 100Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range:170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 40A/60A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions:610*390*490mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years
Slope Roof Mounting Structure
Flat Roof Mounting Structure
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m²
4mm² PV Wire, Red, 20m
4mm² PV Wire, Black, 20m
4mm² PV Wire, Black, 2m
2 Utility or generator. Connected at the AC input, it can supply power to the load and can also operate normally, when the load poweris provided by the battery and PV module. charge the battery at the same time. If no utility or generator is connected, the system
3. Battery: The role of the battery is tb ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.
4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air condifioners and other ACloads.
5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
