Effortlessly command your energy with the THON Solar Inverter (On/Off Grid) intuitive control panel.Designed with user experience in mind, the panel offers: Clear Display,Simple Navigation,Immediate Feedback, LED indicators for AC/INV, CHG, and FAULT provide real-time operational alerts.Our control panel is the gateway to a smarter energy solution, placing the power to monitor and adjustright in the palm of your hand.
♦ Anti-countercurrent grid-connected function (photovoltaic hybrid power supply),grid-connected mode can be set.
♦ Advanced MPPT technology with an efficiency of 99.9%.
♦ Two output modes: mains bypass and inverter output; uninterrupted power supply.
♦ Power saving mode available to reduce no-load loss.

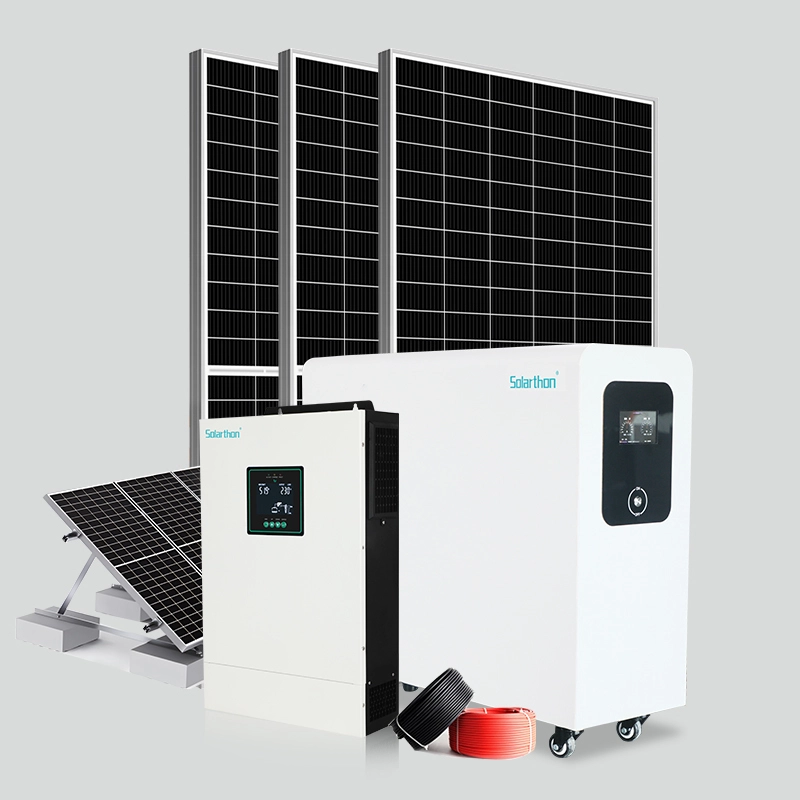

product description
Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 7 pcs In Series
8KW Hybrid Inverter
Battery Voltage: 51.2VDC
Rated Power: 10000VA/8000W
Rated AC Output Voltage: 230VAC
Rated AC Input Voltage Range: 170-280VAC, 50Hz
Maximum AC Charging Current: 150A
Maximum PV Input Power:4500W+4500W
MPPT Input Voltage Range: 80-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576*368.6*133mm
Warranty: 3 Years
51.2V 280AH Battery Pack
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 280Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage:40.8V
Max. Cont. Charging/Discharging Current: 150A
Max. Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 10 sets
Cycle Life: ≥6000
Product Size: 860*290*738mm
Weight: 60kg
Warranty: 5 years
structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
4mm2 PV Wire, Red, 20m
4mm2 PV Wire, Black, 20m
4mm2 PV Wire, Black, 2m
25mm2 PV Wire, Red, 5m
25mm2 PV Wire, Black, 5m
