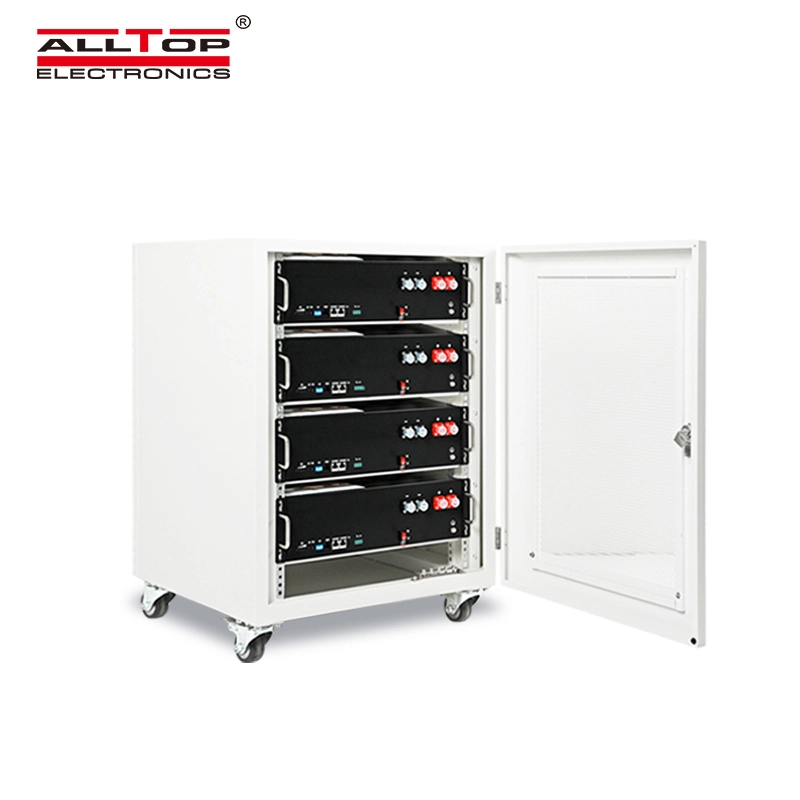

51.2 V 100Ah Battery Pack ENERGY STORAGE SYSTEM
|
|
|
|
Model |
STFBC001 |
|
Dimension(WDH) |
600x600x882.5mm |
|
Partition |
4 |
|
Material |
lon steel |
|
Proctect Level |
IP20 |
|
Max.Power |
20Kwh |
|
|
|
|
Model |
STF512100 |
|
Nominal Voltage |
5.12V |
|
Capacity |
100Ah |
|
Nominal Energy |
5.12kWh |
|
Discharge Voltage |
45-54V |
|
Charge Voltage |
51.5V-54V |
|
Cont. Charge Current |
30A |
|
Cont. Discharge Current |
30A |
|
Max. Discharge Current |
50A |
|
Operating temperature |
0℃ -45℃ (Charge) /-20℃ - 45℃ (Discharge) |
|
Scalability |
Up to 5 units |
|
DOD |
90% |
| Communication |
CAN/RS485 |
| Cycle Life |
>6000 |
| IP Grade |
IP20 |
| Installation |
Cabinet |
| Dimension |
440*530*132mm |
| Weight |
45kg |
| Warranty |
3 Years |
• Standard 3U chassis size.
• Adopt high-quality, stable, long-life aluminum shell LiFePO4 battery.
• With charging current limiting function, it is safer when connected in parallel.
• The design adopts dual-port output, which is more convenient for parallel connection.
• Precise LED power display and status display.
• Iron Phosphate Safety Battery
• Each battery pack is equipped with intelligent BMS to manage modules effectively
• Compared with traditional modules, it can meet the capacity storage and greatly improve the cycle life
1.51.2 kWh energy capacity, parallel up to 54 kWh.
2. Free cooling with optional cooling/fan configuration.
3.Wide temperature range. -20-50℃
• High power input and available energy ratio
• Modular design, expandable system
• Safest battery and perfect compatibility
• Natural cooling, easy installation
• Certification available
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
