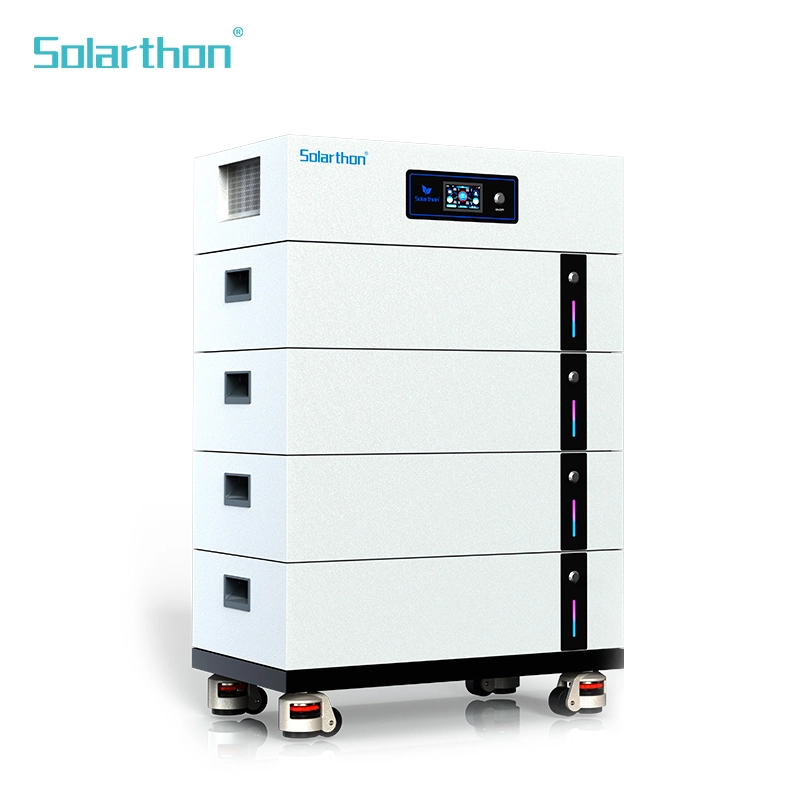

5.6KW 10KW High Voltage Lifepo4 Lithium Solar Battery Stacked HomeEnergy Storage System

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Packing:

L/C, D/A, D/P, T/T, Western Union, Money Gram

Payment Terms:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Write a Review

DQ1911 Series
Item No.	DQ1911A5K6-01	DQ1911B5K6-01	DQ1911C5K6-01	DQ1911D5K6-01
Rated Power	5.6KW	5.6KW	5.6KW	5.6KW
LiFePO4 Battery	100Ah/51.2V	200Ah/51.2V	300Ah/51.2V	400Ah/51.2V
AC Output Voltage	230VAC	230VAC	230VAC	230VAC
AC Output Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
AC Input Voltage Range	170-280VAC	170-280VAC	170-280VAC	170-280VAC
AC Input Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Maximum AC innut current/charging current	40A/60A	40A/60A	40A/60A	40A/60A
Maximum PV Voltage	500VDC	500VDC	500VDC	500VDC
MPPT Voltage Range	120-450VDC	120-450VDC	120-450VDC	120-450VDC
PV Charge Current	100A	100A	100A	100A
Temperature For Operation	-20-+50℃	-20-+50℃	-20-+50℃	-20-+50℃
Temperature For Storage	-30 -+70℃	-30 -+70℃	-30 -+70℃	-30 -+70℃
External Dimensions	610410490mm	610410652mm	610410813mm	610410975mm
Warranty	3 years	3 years	3 years	3 years
DQ1912 Series
Item No.	DQ1912A10K-01	DQ1912B10K-01	DQ1912C10K-01	DQ1912D10K-01
Rated Power	10KW	10KW	10KW	10KW
LiFePO4 Battery	200Ah/51.2V	400Ah/51.2V	600Ah/51.2V	800Ah/51.2V
AC Output Voltage	230VAC	230VAC	230VAC	230VAC
AC Output Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
AC Input Voltage Range	170-280VAC	170-280VAC	170-280VAC	170-280VAC
AC Input Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Maximum AC innut current/charging current:	60A/150A	60A/150A	60A/150A	60A/150A
Maximum PV Voltage	500VDC	500VDC	500VDC	500VDC
MPPT Voltage Range	120-450VDC	120-450VDC	120-450VDC	120-450VDC
PV Charge Current	150A	150A	150A	150A
Temperature For Operation	-20-+50℃	-20-+50℃	-20-+50℃	-20-+50℃
Temperature For Storage	-30 -+70℃	-30 -+70℃	-30 -+70℃	-30 -+70℃
External Dimensions	750480510mm	750480682mm	750480853mm	7504801025mm
Weight	126kg	198kg	270kg	342kg
Warranty	3 years	3 years	3 years	3 years

product description

5.6KW 10KW High Voltage Lifepo4 Lithium Solar Battery Stacked HomeEnergy Storage System 8

Flat-stacked energy storage system

5.6KW/5KWH 5.6KW/10KWH 5.6KW/15KWH 5.6KW/20KWH

10KW/10KWH 10KW/20KWH 10KW/30KWH 10KW/40KWH

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide

stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital

intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such

as household appliances, power tools, industrial equipment, electronic video and audio. LcD screen display design, real-time display of system

operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

5.6KW 10KW High Voltage Lifepo4 Lithium Solar Battery Stacked HomeEnergy Storage System 9

Flat-stacked energy storage system

Flat-stacked energy storage system

● One-stop home solution

● Modular design and intelligent switching

● Each battery is equipped with an independent BMS battery energy managem

● Support GPRS/WIFI/RS485, remote monitoring

● Warranty 3 years, 10+ years life design

5.6KW 10KW High Voltage Lifepo4 Lithium Solar Battery Stacked HomeEnergy Storage System 10

Schematic diagram of the flat-stack energy storage system

The following figure shows the system application scenario of this product. A complete system includes the following parts:

1.Photovoltaic module: Convert light energy into DC electric energy, charge the battery

through energy storage inverter, or directly reverse it into AC to power the load.

2. Utility or generator: Connected at the AC input, it can supply power to the load and

charge the battery at the same time. If no utility or generator is connected, the system

can also operate normally, when the load power is provided by the battery and PV module.

3. Battery: The role of the battery is to ensure the normal use of power for the system load

when the solar energy is insufficient and there is no utility power.

4. Household load: It can access various household and office loads, including refrigerators,

lamps, TV sets, fans, air conditioners and other AC loads.

5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.

5.6KW 10KW High Voltage Lifepo4 Lithium Solar Battery Stacked HomeEnergy Storage System 11

Flat-stacked energy storage system

Flat-stacked energy storage system

● Pure sine wave inverters;

● Integrated MPPT controller/charger;

● Settable priority of utility and PV power supply;

● Wide PV input voltage;

● Using LiFePO4 battery, the battery has undergone strict safety testing, and the charging speed is fast,

high temperature resistant, green environmental protection, non-toxic and pollution-free.

● Functions and parameters can be set via the LCD;

● With battery equalization function to optimize battery performance and extend battery life.

Showroom

5.6KW 10KW High Voltage Lifepo4 Lithium Solar Battery Stacked HomeEnergy Storage System 12

Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
