215KWH ESS with 100KW PCS and Solar Charging System Home Solar Energy Storage System Featuring LiFePO4 Battery MPPT
|
Item No. |
DQ1907C100K-03 |
|
Energy Storage System(ESS) |
|
|
LiFePO4 Battery |
768V/280AH |
|
Battery Voltage Range |
672~864V |
|
Power Conversion System(PCS) |
|
|
Rated Power |
100KW |
|
Rated AC Voltage |
230/400V, 50/60Hz |
|
AC Voltage Range |
230/400V, 50/60Hz |
|
DC Voltage Range |
615~950V |
|
Solar Charger |
|
|
Max. PV Charge Power |
100KW |
|
Max. PV Input Voltage |
900V |
|
MPPT Voltage Range |
0~900V |
|
Energy Management System(EMS) |
|
|
LCD monitor, RS485, CAN, TCP/IP |
|
|

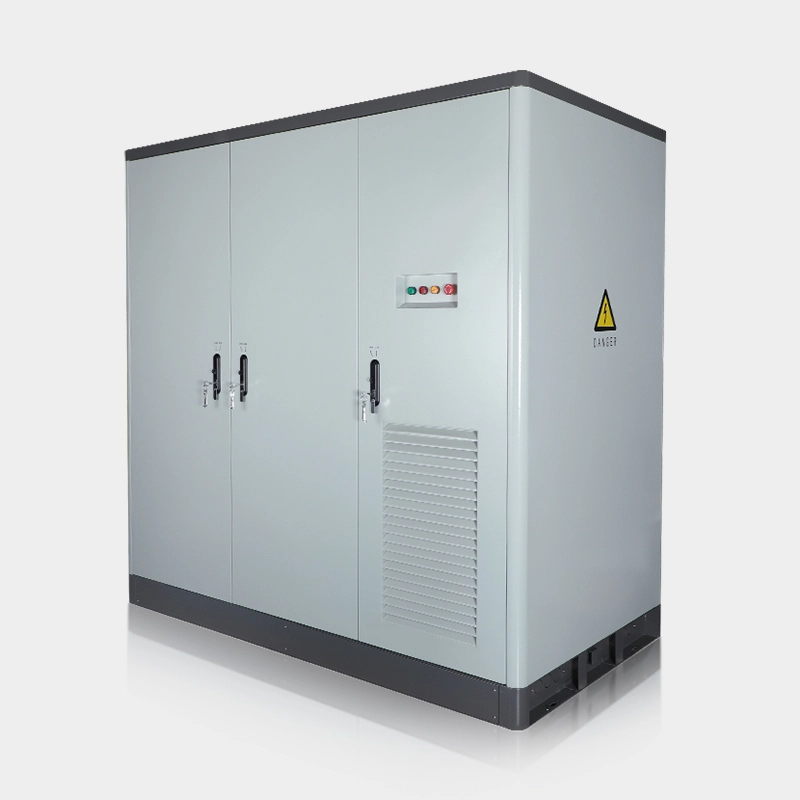

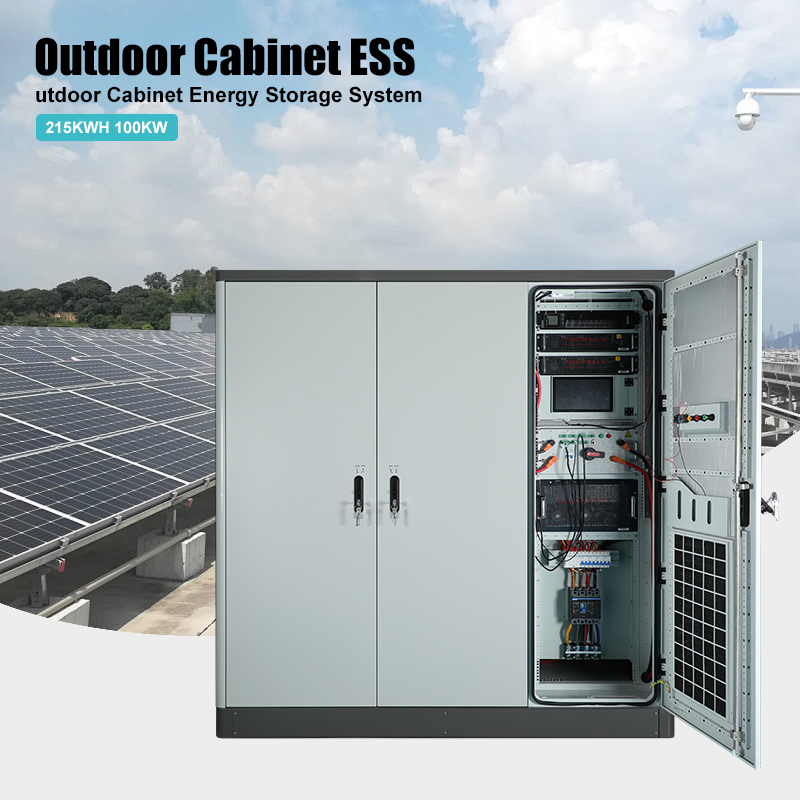

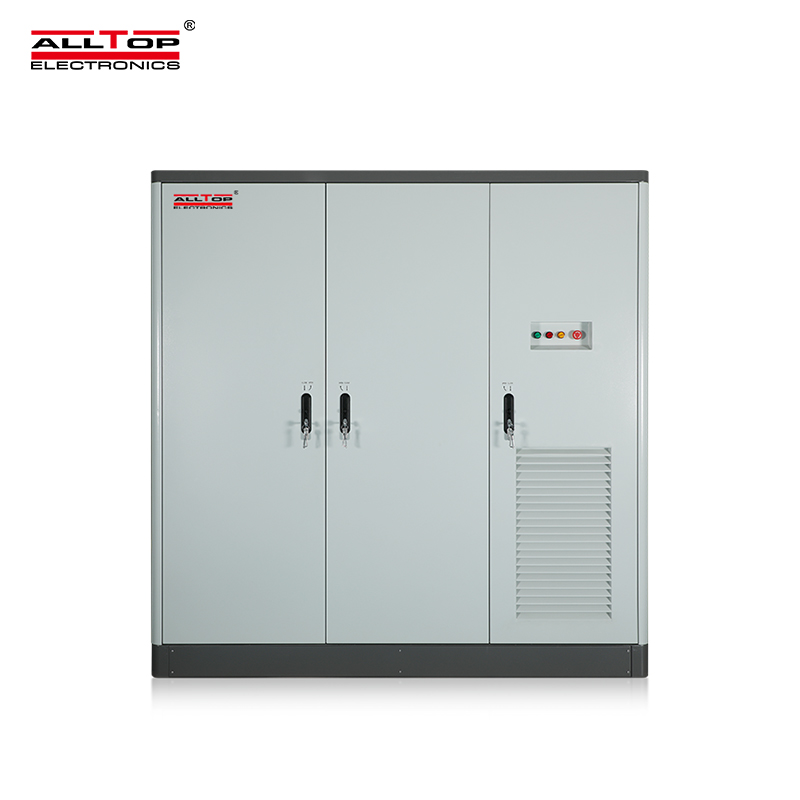

Outdoor Three-cabin Cabinet |
|
|
Size |
2100*1150*2150mm |
| Air Conditioner, 1500W, 2 sets | |
| Fire Fighting System | |
Supplier Introduction: This supplier is both a manufacturer and a trader. They offer quality control services as well as comprehensive customization services, including design customization and sample customization. Their main export destinations are Africa, Australia and Iraq. The customer satisfaction rate is as high as 92.5%.
The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment.
215KWH ESS with 100KW PCS and Solar Charging System

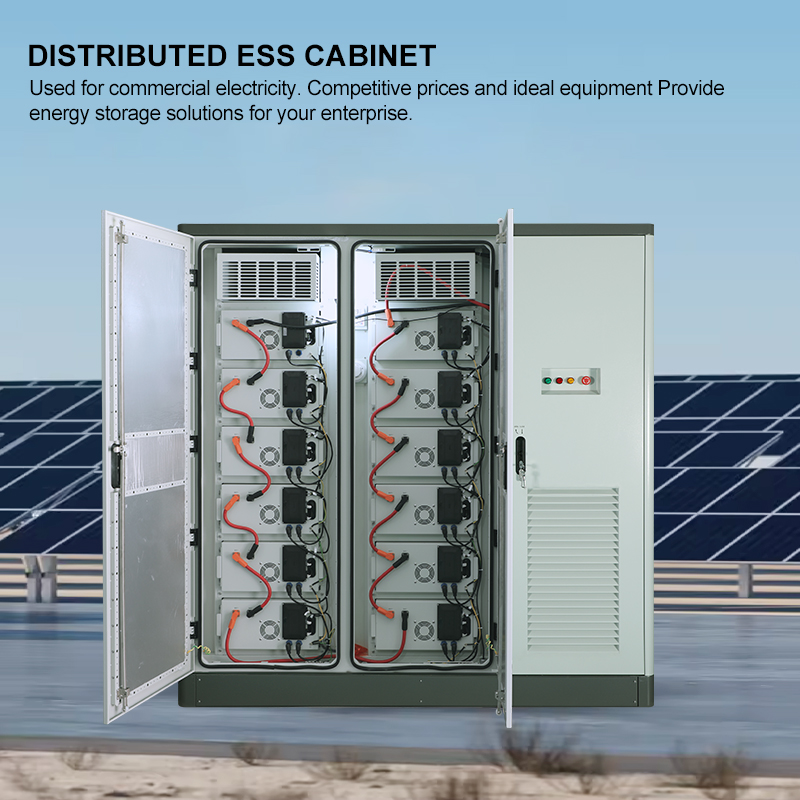

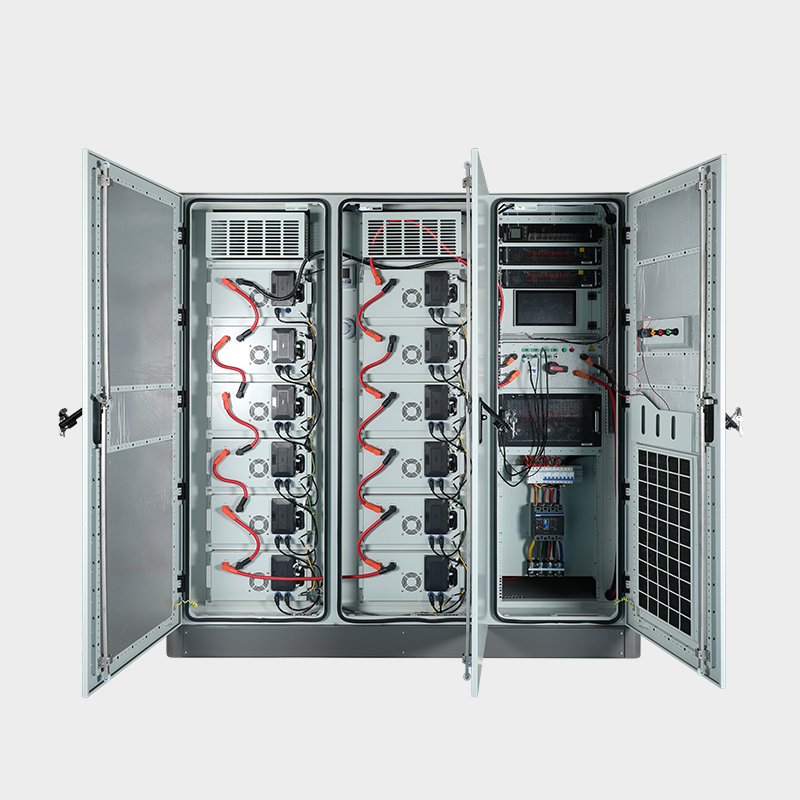

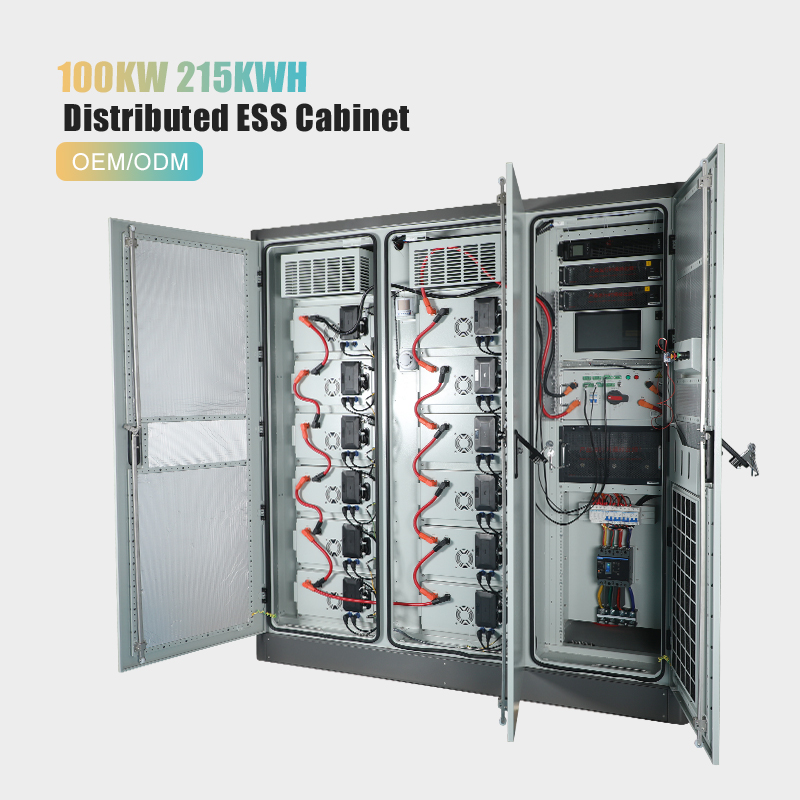

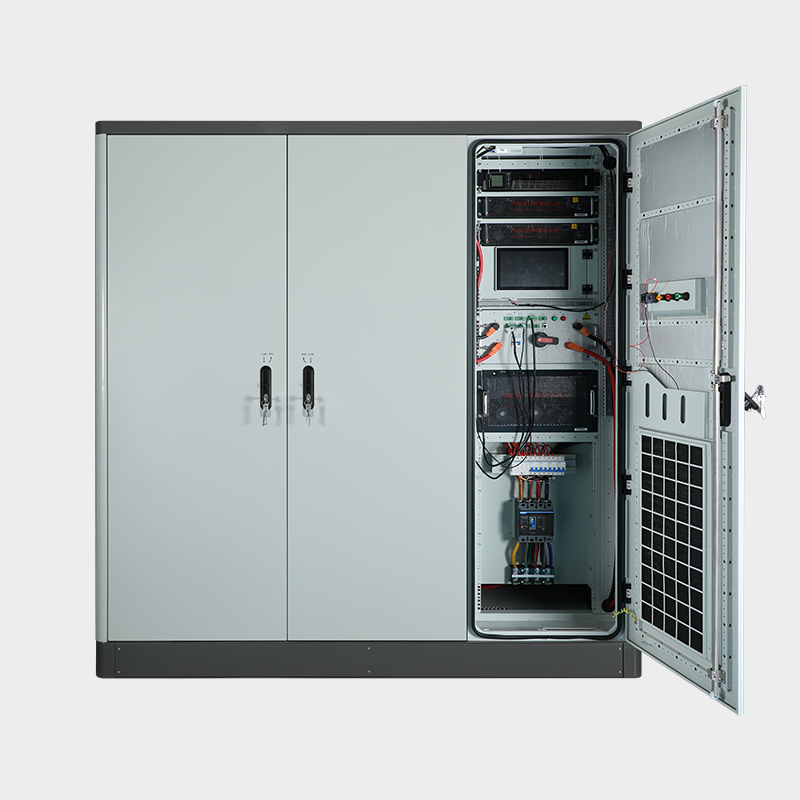

The cabinet is integrated with battery management system (BMS), energy management system (EMS),modular power conversion system (PCS),and fire protection system.The system's capacity is up to 215 kwh and the power is up to 100 kw.
The modular design allows for flexible expansion, adapting to various scenarios such as power expansion and backup power supply.
215KWH ESS with 100KW PCS and Solar Charging System
215KWH ESS with 100KW PCS and Solar Charging System
Our All-in-One energy storage system is wall-mounted or floor-installable, Versatile and space-saving, it ensures reliable power conversion and uninterrupted operation for residential and small commercial applications. With high-quality components and advanced control features, our All-in-One system delivers stable and sustainable energy supply for your home or business.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
