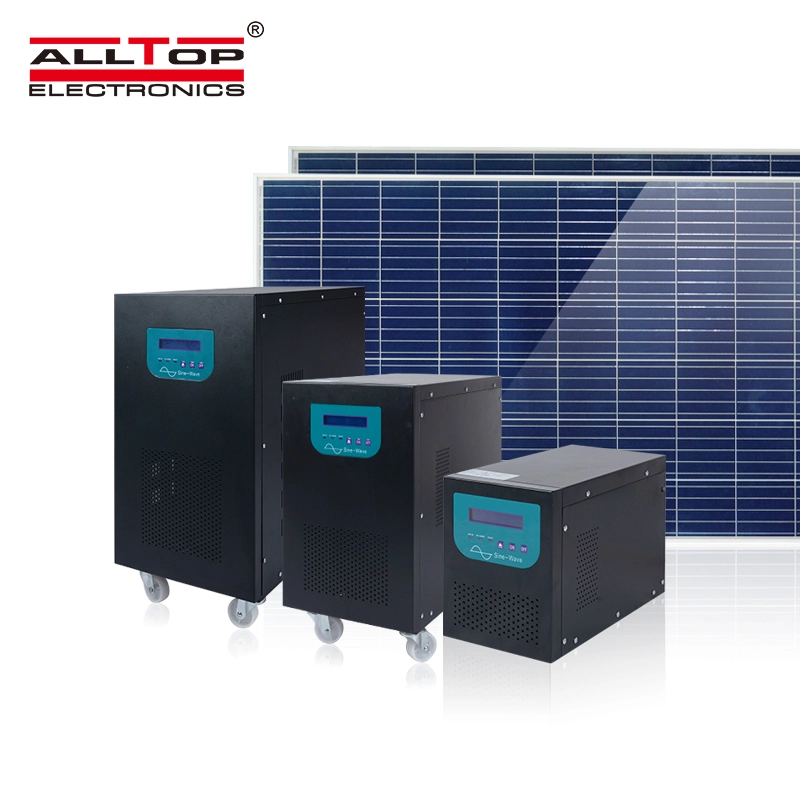

New Power system off Gridpure sine wave dc to ac power inverter

Model

DQ1200A300-01

DQ1200A500-01

DQ1200B1K-01

DQ1200B2K-01

Capacity(W)

300

500

1000

2000

DC voltage(V)

12V/24V

12V/24V

24V/48V

24V/48V

Input voltage(V)

160-265VAC

Input frequency

45-65HZ

Output voltage

110V/120V/220V/230V for optional

Output wave form

Pure sine wave

THD

≤ 3%

Low-voltage protection(V)

9.8/19

19/39

19/39

39/78

Over voltage protection(V)

315/30

30/60

30/60

60/120

Recharge current

15-25A

15-25A

15-25A

20-30A

Unit size(mm)

350*170*220

350*170*220

Transfer efficiency

87%--90%

Protections

Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection

Over load

120% of the rate capacity

Short circuit

300% of the rate capacity
