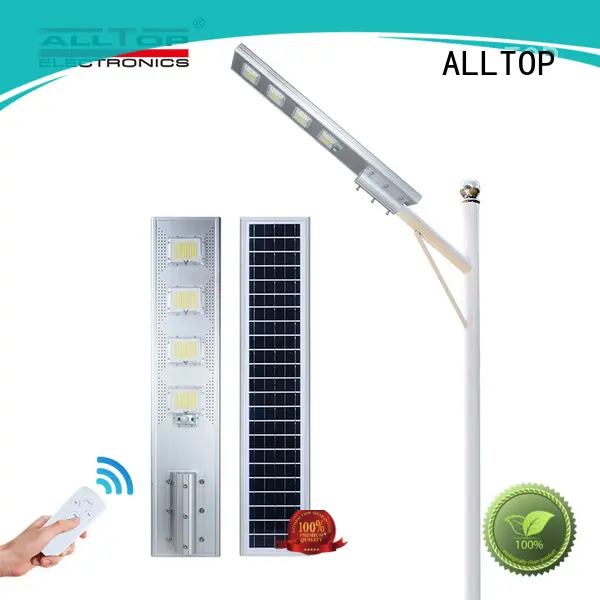

integrated solar lamp long lifespan for highway
- ALLTOP Lighting regards the development prospects with an innovative and advancing attitude, and provides more and better services for customers with perseverance and sincerity.
1. The lighting technology used in ALLTOP solar powered led lights is constantly upgraded. It is also proven to become the preferred lighting technology in the lighting industry.
2. This product is not prone to voltage problem. It is has been carefully designed to accommodate voltages in different countries.
3. This product is safe to use. It has passed the accessibility test and the power leakage test in the production.
4. The product is able to deliver light more efficiently to the desired location, which improves the light efficiency for users.
|
|
| ||
Item No. | 0856A60-02 | 0856B120-02 | 0856C180-02 | 0856D240-02 |
Power | 40W | 120W | 180W | 240W |
LED Lamp | 60W LED 6000K-6500K | 120W LED 6000K-6500K | 180W LED 6000K-6500K | 240W LED 6000K-6500K |
Lamp Size | 502*220*123mm | 702*220*123mm | 902*220*123mm | 1170*220*123mm |
Solar Panel | 10V 16W, Polycrystalline | 16V 36W, Polycrystalline | 16V 48W, Mono-Crystalline | 16V 48W, Mono-Crystalline |
BatteryType | LiFePO4 16.4V12AH | LiFePO4 16.4V18AH | LiFePO4 16.4V24AH | LiFePO4 16.4V30AH |
Charging time | 6-8 hours | |||
Discharging time | 30-36 hours | |||
Lumen | 160lm/w | |||
Material | Aluminum | |||
Install Height | 4-6m | 6-8m | 8-10m | 8-12m |
160W/lumen, lighting angle 120°
3 Lighting Mode for choosing, motion sensor for energy saving.
Detachable design of battery pack and led chip,easy to maintenance.
All in one design with patent,Aluminum alloy case,Waterproof IP65.
Turn on at dusk and tun off at dawn automatically.
Simple operation, easy to use, automatic lighting at night, safer, more durable, more fashionable.Multiple
barrier seal design,rain and dust are seamless easy to adapt to all kinds of weather.
Strong anti-interference: It is affected by external natural factors and its performance is stable and reliable.
Automatic metering: Automatically recognizes the intensity of ambient light, reaches the lighting demand
setting and lights when someone.
Fully automatic induction: Automatically turn on the light after sensing people, people are on, the lights are off,
the people are safe, the power is saved, and they are not interfered by external factors such as sound and objects.
Has high efficacy,high CRI,low power consumption,wide viewing angle and acompect form factor.
Thease features make this package an ideal LED for all lighting applications.
High brightness,light and color consistency,long life span.
China Profeshional manufacturer with experienced technical team.
Polycrystalline silicon solar panels, which are easier to manufacture, save power, and have low overall production costs.
Positive power tolerance: 0~+ 5W
100% EL double-inspection ensures modules are defects free
Modules binned by current to improve system performance
Note:
1. Charge under direct sunlight for 6 to 8 hours
2. Please choose a position without any shelter for enough sunshine and fully exposure
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Company Features
1. Zhongshan ALLTOP Lighting CO., LTD has an excellent solar lamp manufacturing capability in the industry.
2. With the QC department's support, the quality of solar led lights can be ensured.
3. ALLTOP wants to become a professional brand in the world market. Check now! Zhongshan ALLTOP Lighting CO., LTD only produce high class integrated street light for our customers. Check now!
