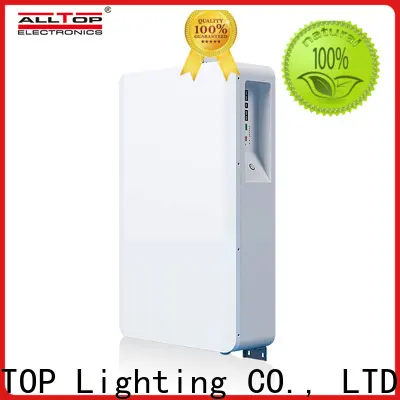

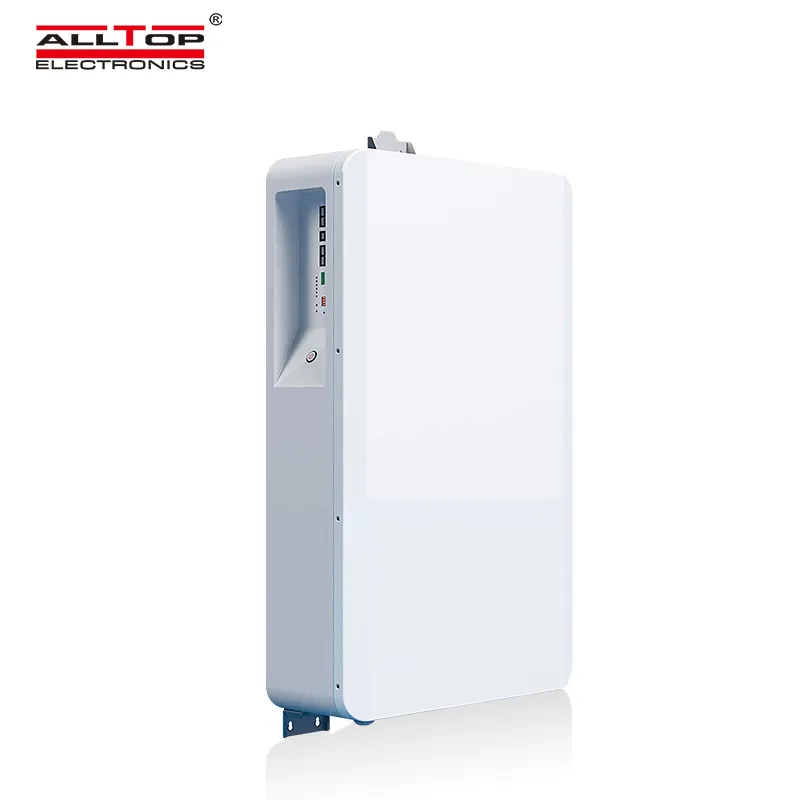

Hot Selling solar lithium battery pack from China
| |
Model | STF512240 |
DATASHEET | POWER PORTER 12.0 |
| BATTERY DATA | |
NOMINAL VOLTAGEI/ | 51.2V |
CAPACITY | 240AH |
NOMINAL ENERGY | 12.28KWH |
DISCHARGE VOLTAGE | 45-54V |
CHARGE VOLTAGE | 51.5V-54V |
CONT. CHARGE CURRENT | 100A |
CONT. DISCHARGE CURRENT | 100A |
MAX. DISCHARGE CURRENT | 125A |
CONT. DISCHARGE DC POWER | 5000W |
| MAX. DISCHARGE DC POWER | 10000WI MORE THAN 2 UNITS IN PARALLEL 0°C-45°C (CHARGE) |
| OPERATING TEMPERATURE | -20°C - 45°C (DISCHARGE) |
GENERAL DATA | |

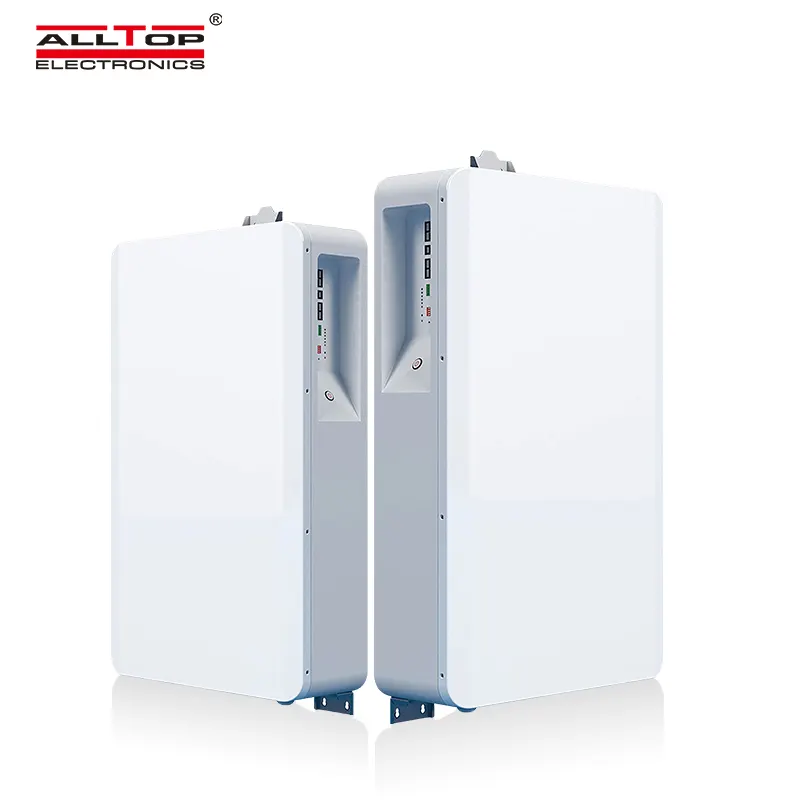

| SCALABILITY | UP TO 4 UNITS |
| DOD | 90% |
| COMMUNICATION | CAN2.0/ RS485 |
| CYCLE LIFE | > 6000 |
| IP GRADE | IP31 |
| INSTALLATION | WALL OR FLOOR MOUNT |
| DIMENSION | 900X 460X200MM |
| WEIGHT | 112KG |
1.National High-Tech Enterprise
2.Diesel and lead acid replacement

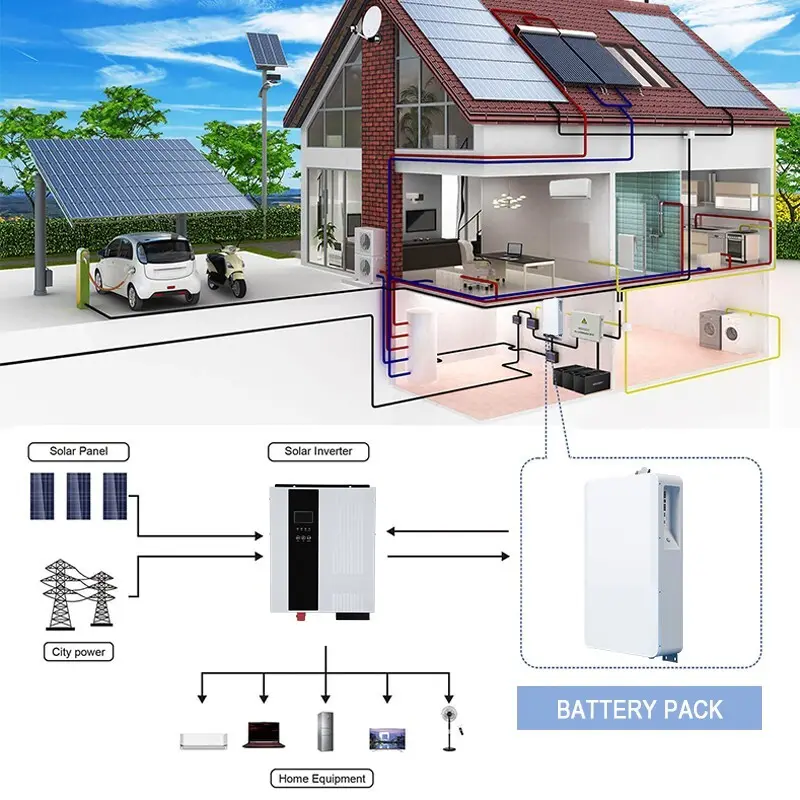

3.Home smart energy management
4.Safe, efficient, green energy5.Large capacity energy storage lithium iron phosphate battery
. Compact size• High efficiency
• Easy installation• High energy density
• Excellent safety of LiFePO4 Cells
* When the temperature is below 0°C or above 45°C, the performance will be limited.

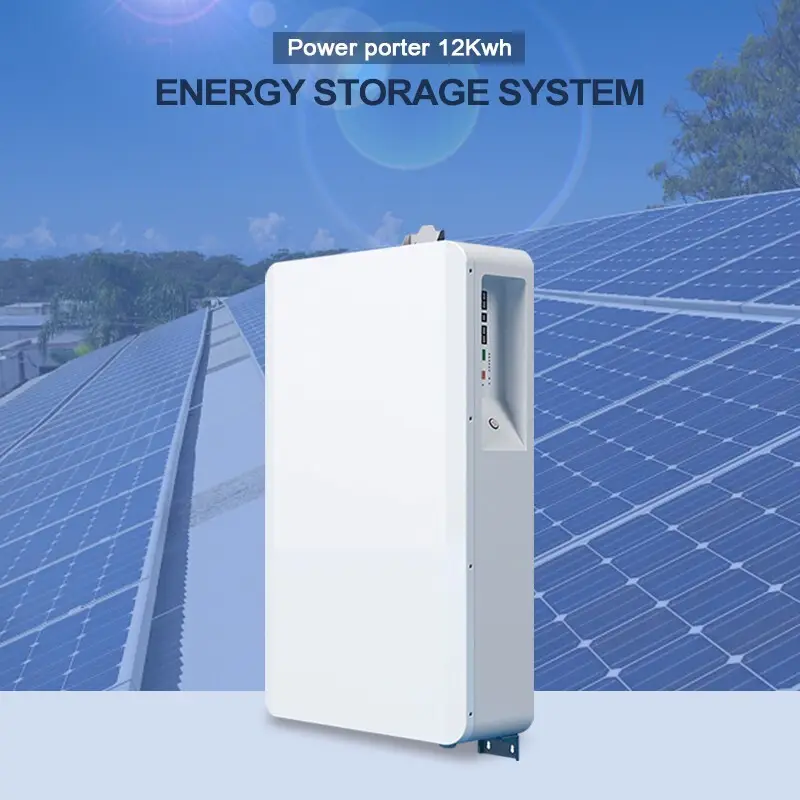

Power porter 12Kwh ENERGY STORAGE SYSTEM

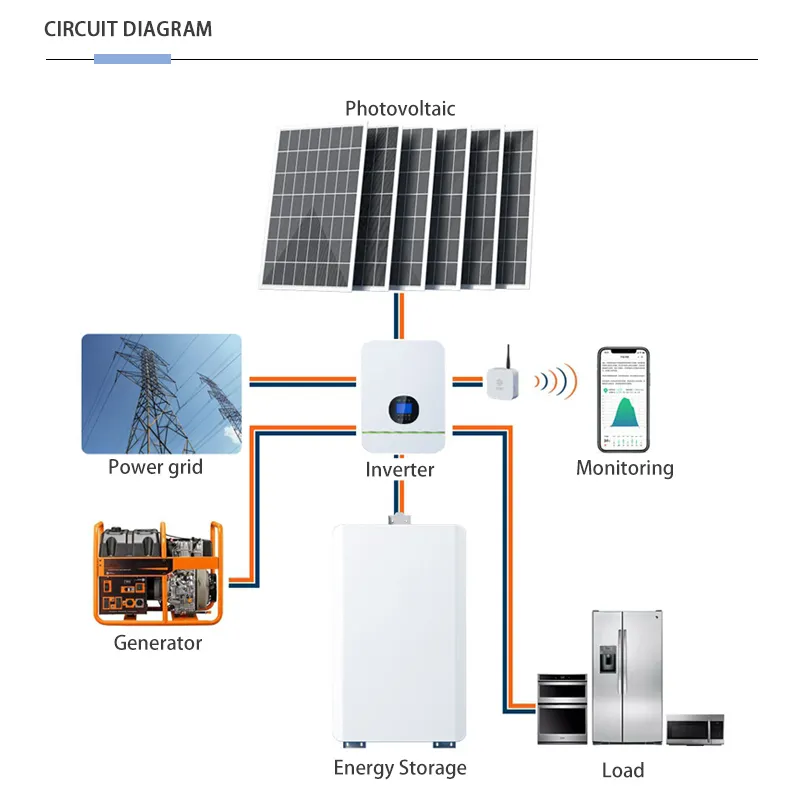

CIRCUIT DIAGRAM

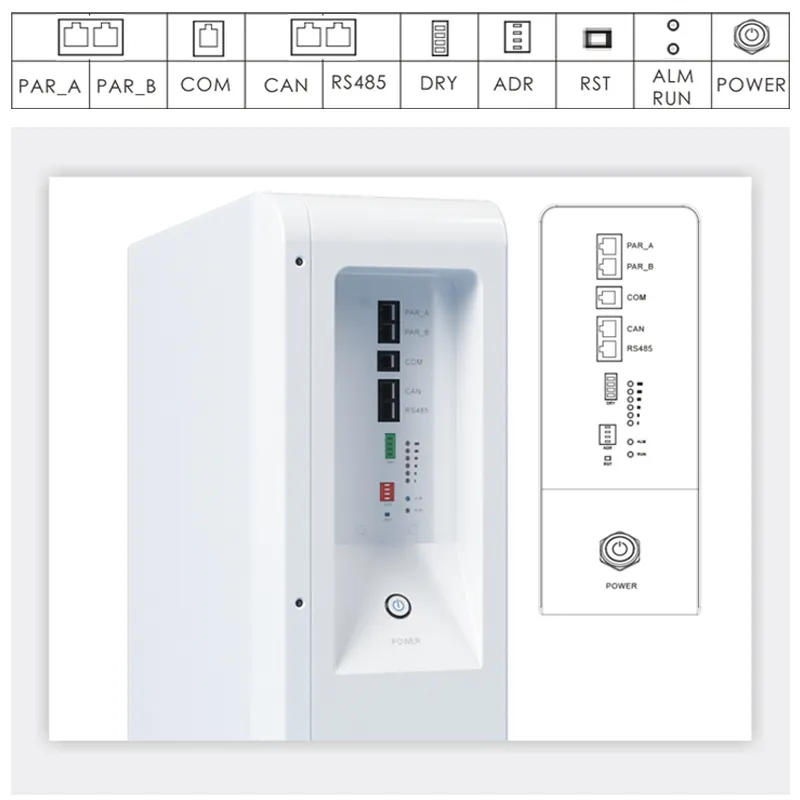

MULTIFUNCTION IN ONE BATTERY PACK
• High power input and available energy ratio
• Modular design, expandable system
• Safest battery and perfect compatibility
• Natural cooling, easy installation
• Certification available
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
