We are a leading manufacturer of solar power utilization and lighting systems

garden all in one solar street lights waterproof ALLTOP company 1

garden all in one solar street lights waterproof ALLTOP company 2

garden all in one solar street lights waterproof ALLTOP company 3

garden all in one solar street lights waterproof ALLTOP company 4

garden all in one solar street lights waterproof ALLTOP company 5

garden all in one solar street lights waterproof ALLTOP company 6

garden all in one solar street lights waterproof ALLTOP company 7

garden all in one solar street lights waterproof ALLTOP company 8

garden all in one solar street lights waterproof ALLTOP company

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram,

Service:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Product Comparison

ALLTOP Lighting carries out strict quality monitoring and cost control on each production link of solar lighting, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry. solar lighting is more competitive than other products in the same category, as shown in the following aspects.

Company Advantages
1. The outline of solar street light is reasonably designed. The surface of the product goes through the anodic oxidation treatment which makes it of anti-corrosion
2. solar led lights has achieve features like all in one solar street lights, and has met better technical and economic index. Easy installation is the feature of the product
3. Products such as solar lamp has been shown to have a long service life and other features like all in one integrated solar street light. The products can be widely used for lighting up the wall, fence, trees and so on
4. Each staff in customer service team of ALLTOP are professional. The product, made of high cost-performance aluminum alloy, has a favorable price
5. Zhongshan ALLTOP Lighting CO., LTD is responsible for final quality testing result. Thanks to the adoption of the aluminum alloy, the product is waterproof


Item NO	0400A08-01	0400B12-01	0400C20-01	0400D40-01	0400E60-01
Power	8W	12W or 15W	20W or 25W	30W or 40W	50W or 60W
LED Lamp	8W LED 6000K-6500K	12W /15W LED 6000K-6500K	20W /25W LED 6000K-6500K	30W/40W LED 6000K-6500K	50W/60W LED 6000K-6500K
Lamp Size	46532570mm	630325140mm	875325140mm	1120325140mm	1120450145mm
Solar Panel	16V 16W, Mono-Crystalline	16V 20W, Mono-Crystalline	16V 33W, Mono-Crystalline	16V 45W, Mono-Crystalline	16V 75W, Mono-Crystalline
Battert Type	LiFePO4 12.8V 3AH	LiFePO4 12.8V 6AH	LiFePO4 12.8V 12AH	LiFePO4 12.8V 18AH	LiFePO4 12.8V 33AH
Charging time	6-8 hours
Discharging time	20-24 hours	30-36 hours	30-36 hours	30-36 hours	30-36 hours
Lumen	100lm/w
Material	Aluminum Alloy
Install Height	2-4m	3-5m	5-7m	5-7m	6-8m

product description

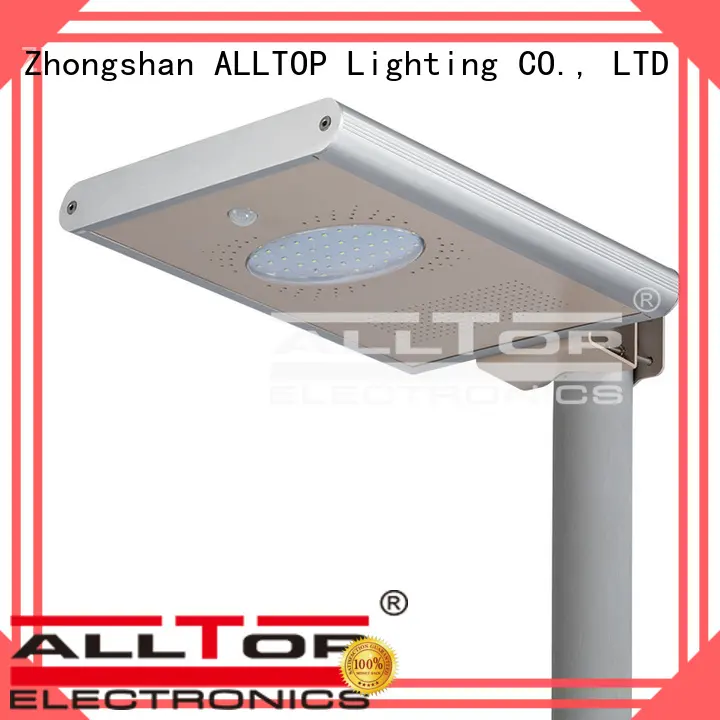

solar street light

All-in-one design and charged by solar, so the lighting kits are completely wireless and easy to be mounted.
The applications for solar powered outdoor lighting systems are endless. These units can be used for: Security and safety lighting, rural area lighting, Dock lights, Park lighting, Parking lot lighting, Parkway lighting, Walkway lighting, Street lighting, Transit Lighting, Outdoor area lighting, Military and civil security and so on. The costs of trenching and installing underground wiring often make a solar street lighting system an economically feasible lower cost option.

LED Source

The LED chip is a semiconductor chip that emits light and is not easily broken, so that its service life can reach 50,000 hours, while the ordinary incandescent lamp has a service life of only one thousand hours;

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-7

PIR Sensor

light sensor(solar panel)：turns ON automatically at dusk and OFF at dawn Motion(PIR) Sensor：Stay on dim light,and becomes 100% brightness only when motion detected(when people passes by).When people passes away, it will be 30% brightness.

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-8

High-Efficiency Heat Dissipation

Offers high-efficiency heat dissipation
Airon exchange in the body
Reduce the LED and drive operating temperature

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-9

Solar panel

High conversion solar panels
Large area light plate, super conversion, charging faster
Adopt polycrystalline silicon volt plate, cut and cut the whole piece, high photoelectric conversion efficiency, automatic charging, can also store electricity well in cloudy and rainy days

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-10

Lithium battery

Lithium battery advantages:
1. Green and environmental protection: no toxic heavy metal substances such as lead, mercury and cadmium are produced.
2, lithium-ion battery can be charged and discharged at any time, unlike nickel-metal hydride, nickel-tin
battery, must wait until the power is exhausted.
3, the environmental temperature difference changes adaptability: can be used in the environment of -20 ° C ~ 60 ° C,
4, the service life is relatively long: the service life can reach more than 6 years

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-11

Adiustable interface & Four fixing screws

Made of Aluminum Allouy material, this solar light is IP65 waterproof so it can withstand rain and other extreme weather conditions

Packing Adventages

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-12

Using package color inner boxes
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-13

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-14

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-15

Applications

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-16

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-17

ALLTOP -Find Solar Lamp Integrated Solar Street Light From Alltop Lighting-18

Company Features
1. Zhongshan ALLTOP Lighting CO., LTD remains devoted to the manufacture of solar street light over the years.
2. Zhongshan ALLTOP Lighting CO., LTD focuses on the development of R&D objects for solar led lights.
3. ALLTOP has an excellent objective to reach for a famous brand in solar lamp marketplace.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
