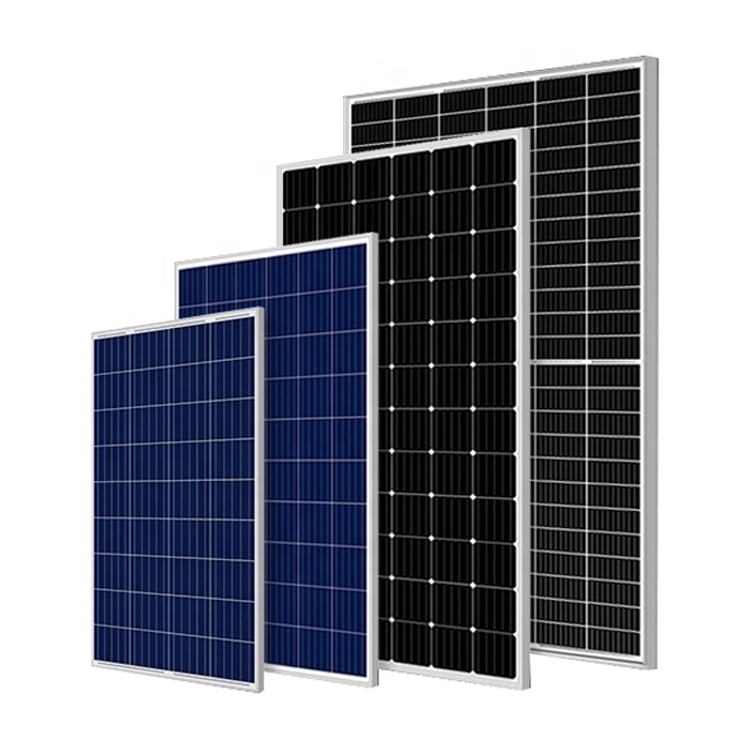

Chinese Supplier Cheap Price Ja Solar Trina 144cells Half Cell 5bb Mbb 9bb Mono Solar Panel for Solar Farm
| Module type | ATP-120M/ATP-120P | |||
|
Maximum Power(Pmax) |
360W |
365W |
370W |
375W |
|
Open-circuit Voltage(Voc) |
40.5V |
40.7V |
40.9V |
41.1V |
|
Maximum Power Voltage |
34.0V |
34.2V |
34.4V |
34.6V |
|
Short-circuit Current(Isc) |
11.35A |
11.43A |
11.52A |
11.6A |
|
Maximum Power Current (Imp） |
10.59A |
10.68A |
10.7A |
10.84A |
|
Module Efficiency (%) |
17.0%~18.0% |
|||
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
lrradiance 1000 W/m 2 , module temperature 25 °C, AM=1.5;Tolerances of Pmax, Voc and Isc are all within +/- 5%. |
|||
|
Operating Module Temperature |
-40°C to +85°C |
|||
Solar Cells
* 5BB, 6BB, 9BB Availablec
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
Waterproof Customized Label
OEM with your Logo
Professional Silver Color
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
