Item No. |
9171A100-01 | 9171B150-01 | 9171C200-01 | 9171D250-01 |
LED Lamp |
100W | 150W | 200W | 250W |
LED Chip |
3030 LED 100PCS | 3030 LED 150PCS | 3030 LED 200PCS | 3030 LED 250PCS |
Color Temperature |
6000K | 6000K | 6000K | 6000K |
LED |
160 lm/w | 160 lm/w | 160 lm/w | 160 lm/w |
LED Life Span |
50000 hrs | 50000 hrs | 50000 hrs | 50000 hrs |
Input Voltage |
AC100-240V 50/60Hz | AC100-240V 50/60Hz | AC100-240V 50/60Hz | AC100-240V 50/60Hz |
IP Rating |
IP65 | IP65 | IP65 | IP65 |
Power Factor |
≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
Material |
Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
Lamp Size |
595*300*110mm | 677*300*110mm | 765*300*110mm | 850*300*110mm |
Install Height | 4-6m | 5-7m | 6-8m | 7-9m |

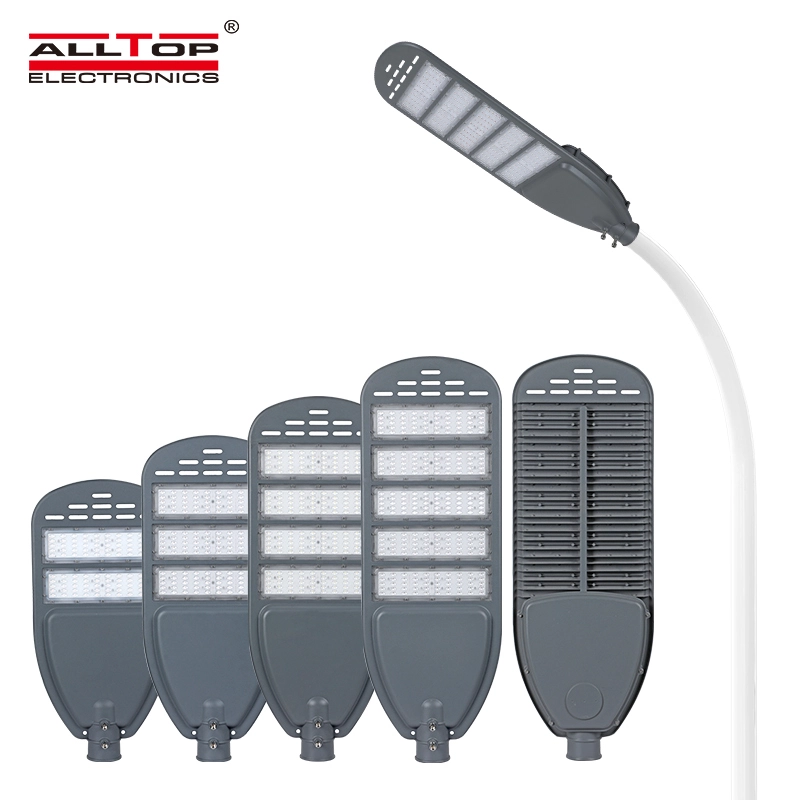

LED STREET LIGHT
1. AC100-240V 50/60Hz universial voltage.
2. Light Efficacy up to 160lm/W.
3. High lumen 3030 SMD light source ,LM-80 Reports and .ies files are ready.
4. Diecasting aluminum body, anti-corrosion painting.
5. IP65 waterproof for outdoor use.
LED Light Source
SMD 3030 high brightness Light Source, Lighting efficiency up to 160lm/W ,energy saving and enviromental protection,long lifespan.
OPTICS
Tech Support: Tell us the room length, width, height and the usage.We have an engineerteam to respond the DIALUX simulations for lights quantity calculation and effects.ies files are available upon request
Thermal Management
Structure is optimized by advanced FEA technology. Well managed temperature rise between internal and external parts.Even thermal distributions.Higher lumen maintenance rate.
Three installation methods can be adjusted
Parking lot ;Outdoor; Street Lighting; Highway; Road lighting; City and countryside road idea for highway project.
