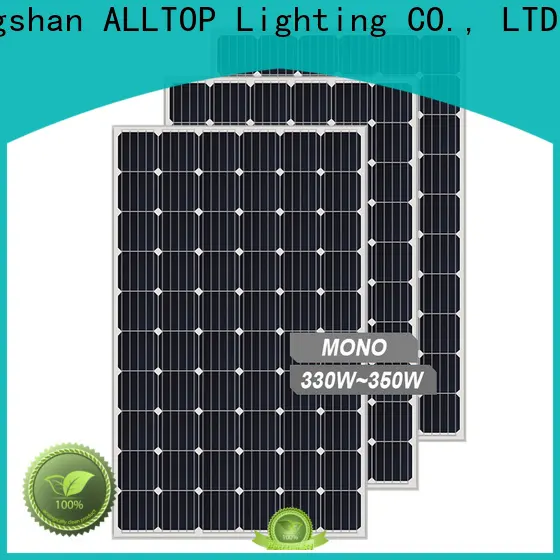

Best Price best solar panels factory
| Module type | ATP-72M/ATP-72P | ||||
Maximum Power(Pmax) | 330W | 335W | 340W | 345W | 350W |
Open-circuit Voltage(Voc) | 45.8V | 46.1V | 46.5V | 46.7V | 46.9V |
Maximum Power Voltage | 37.7V | 38.0V | 38.1V | 38.2V | 38.4V |
Short-circuit Current(Isc) | 9.22A | 9.10A | 9.40A | 9.50A | 9.59A |
Maximum Power Current (Imp） | 8.76A | 8.82A | 8.90A | 9.04A | 9.12A |
Module Efficiency (%) | 17.0%~18.0% | ||||
Power Tolerance | 0~+5W | ||||
Standard Test Environment | lrradiance 1000 W/m 2 , module temperature 25 °C, AM=1.5;Tolerances of Pmax, Voc and Isc are all within +/- 5%. | ||||
Operating Module Temperature | -40°C to +85°C | ||||
Solar Cells
* 5BB, 6BB, 9BB Availablec
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
Waterproof Customized Label
OEM with your Logo
Professional Silver Color
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
