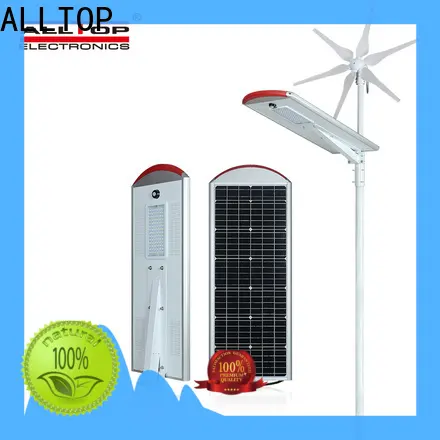

ALLTOP waterproof 20w solar street light directly sale for garden
1. ALLTOP solar street lighting system is made of a heat-conducting material, and the thermal conductivity is improved, which ultimately helps to improve the heat dissipation rate. With highly bright LED chip, the product produces no radiation, protecting human health
2. The effective management and inspection of production process enable 20w solar street light produce with high quality. The surface of the product goes through the anodic oxidation treatment which makes it of anti-corrosion
3. The product features high efficiency. The new technology used in it provides maximum brightness and allows large areas of lighting. The design of the product's structure is compact and beautiful
4. The product features thermal stability. Its thermal system doubles the protection and reduces the damage from overheating. The products can be widely used for lighting up the wall, fence, trees and so on
5. The product features low temperature rising, which ensures that the longtime lighting will not bring heat-caused security problem. Made of the die casting aluminium alloy, the product has a good metal texture
| |
Item No. | 0920A80-01 |
Power | 80W |
LED Lamp | Osram 3030 LED 150PCS 3000K-6000K |
Lamp Size | 1222*451*126 mm |
Solar Panel | 16V 75W, Monocrystalline |
BatteryType | Lithium-Ion 11.1V 50AH |
Charging time | 6-8 hours |
Discharging time | 30-36 hours |
Lumen | 160lm/w |
Material | Aluminum alloy |
Install Height | 8-10 m |
The Solar&wind street Light is a revolutionary product by utilizing Photovoltaic effect and wind power. It is designed to constantly absorb solar energy in daylight,wind energy all the day and convert to electricity, the intelligent controller could precisely control the charge, discharge and well preserve electricity into the lithium battery.
And start to iluminate, which is powered by the lithium battery, once the iluminance of ground reduced to 15 lux in night time, or solar panel voltage drop to 5V below. The intelligent controller not only protects the battery from over-charging,over-discharging, but also can control the light switch-on,the time of swicth-on and optimize the brightness effectively according to the real-time environment.
> Starts non loaded: Minimum speed is 2m/s to start the wind turbine.
> Electronic braking system: Braking system will turn on automatically when wind speed ≥ 35m/s.
> Discharging while charging: At night, the wind turbine workes to support the LED lighting and also charge the battery.
> Daytime and nighttime will be recognized according to the output voltage of solar panel. When nightfall, the LED lighting operates; when daytime, charge the battery.
> With MPPT technology, the battery will be charged max by the sunlight.
> Utilize ligh effiency LED, with integrated opticallens. PWM adjustment, constant current output.
> PIR motion sensor: enter energy-saving mode when nobody to prolong backup days.
> RED pathway indicator, for warning effect and decoration at night.
Strong light environment (daytime) does not light up!
In the low light environment or at night, the sensor body detects the change of infrared heat energy caused by the movement of the human body and then triggers the lighting. Sensing diameter is farther and more sensitive.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Company Features
1. After successfully introducing high technologies, ALLTOP has been more confident to create high quality 20w solar street light .
2. Human resources are one of our company's strengths. It is worth emphasizing the R&D team. They are acquainted with the market trend and have deep expertise and creativity to create new products that may lead trend.
3. The basic principle of ALLTOP is sticking to customer first. Call!
