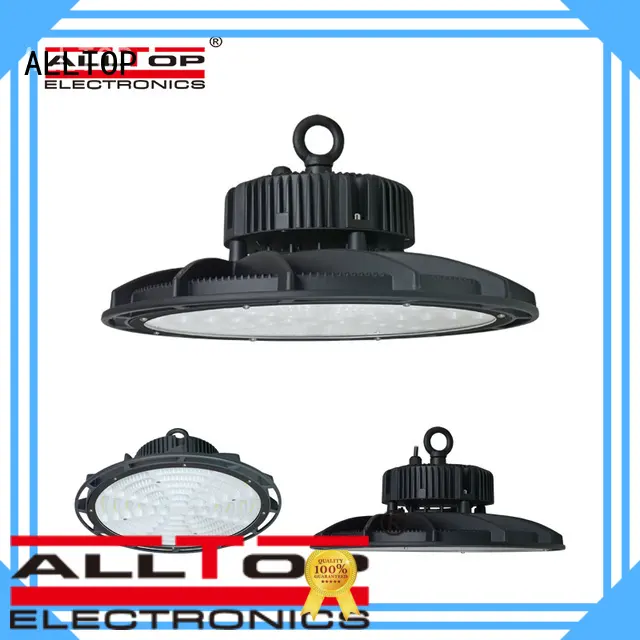

ALLTOP led high bay factory price for park
- ALLTOP Lighting insists on the service concept that we put customers first. We are committed to providing one-stop services.
1. The production technique of ALLTOP led high bay is updated based on the LED lighting market. It has evolved greatly over the past years.
2. The product has a high application safety factor. It is carefully designed with proven safety mechanisms to eliminate any errors or malfunctions.
3. It has the ability to keep the same color without fading or running even if washed, placed in harsh light, exposed to perspiration or treated with certain chemicals.
4. Embracing with high color rendering index, it is free of any light spot issues, thus, it can offer users a clean and well-lighted environment.
5. This product is equipped with a lightproof system to prevent excessive brightness to protect users' eyes from dazzling to the full extent.
|
| |
Item No | 7044A150-01 | 7044B240-01 |
Power | 150W | 240W |
LED Lamp | 3030 LED 216PCS | 3030 LED 320PCS |
Lamp Size | Φ305*195mm | Φ410*205mm |
LED Life Span | ≥50000 hrs | ≥50000 hrs |
Input Voltage | AC100-240V 50/60Hz | AC100-240V 50/60Hz |
Color Rendering Index | >70Ra | |
Power Factor | ≥0.95 | |
Lumen | 160lm/w | |
Material | Die-casting Aluminium | |
• IP65 waterproof, deep waterproof, rain or shine.
• SMD 3030 LED chip, 160lm / w.
• Low power consumption, energy saving and long service life.
• Environmentally friendly, no UV, no mercury and other contaminants.
• High-purity aluminum heatsink design adds more airflow for better heat dissipation.
1:Install Height 5-8m,Irradiation Range 50-70㎡ .
2:Install Height 9-11m,Irradiation Range 70-100㎡ .
3:Install Height 12-15m,Irradiation Range 100-130㎡ .
The LED chip is a semiconductor chip that emits light and is not easily broken,
so that its service life can reach 50,000 hours, while the ordinary incandescent
lamp has a service life of only one thousand hours.High brightness, strong color
rendering, bright light, softer light and long life.
Thick aluminum casing, surface matte treatment, better texture of the ground body, waterproof and dustproof, light weight, strong resistance to pressure, water and dust.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Company Features
1. ALLTOP has received its fame at home and abroad.
2. Zhongshan ALLTOP Lighting CO., LTD boasts its advanced production technology.
3. Our vision is to expand our global business. We will strive hard to achieve this goal by improving our product quality and introducing talents. Get info! We are committed to safeguarding the health and welfare of the community from environmental pollution. During the production process, we will reasonably and legally handle all wastes and emissions.
• UL(E494616) ,CE ROHS SAA approved
• IP66 Waterproof
• Samsung SMD2835 LED chips, Ra>80 ,130lm/w at milky cover,Max 140Lm/W.
• Meanwell Driver, PF>0.95,THD<12
• Environmentally Friendly, No Mercury, No UV, No IR
• Quick start instant 100% luminous flux
• Fast and easy installation to replace existing lowbay light
• Up to 50% energy saving compared to tradition lowbay light
• Lower maintenance cost thanks to over 3 times longer lifetime
| Linear Low Bay Light | ||||
| Certification | UL(E494616) CE ROHS SAA listed | |||
| Product No. | SW5-2FT-40W | SW5-4FT-60W | SW5-4FT-80W | SW5-5FT-100W |
| Dimension L*W*H | 600*128*68mm | 900*128*68mm | 1200*128*68mm | 1500*128*68mm |
| Power(W) | 40W | 60W | 80W | 100W |
| Input Voltage (V) | AC100-277V 50/60Hz | |||
| PF | >0.95 | |||
| CRI(Ra) | >85 | |||
| CCT | 3000-5700K | |||
| Luminary EER (lm/w) | 130 Lm/w | |||
| Luminous (lm) | 5200lm | 7800lm | 10,400lm | 13,000lm |
| Beam Angle | 120° | |||
| Mounting Height | 10meters Max. | |||
| Optional Function | 1-10V & Dali Dimming | Emergency (1,2,3hours) | Microwave Sensor | |||
| Guarantee | 5 years warranty | |||
Product structure diagram
