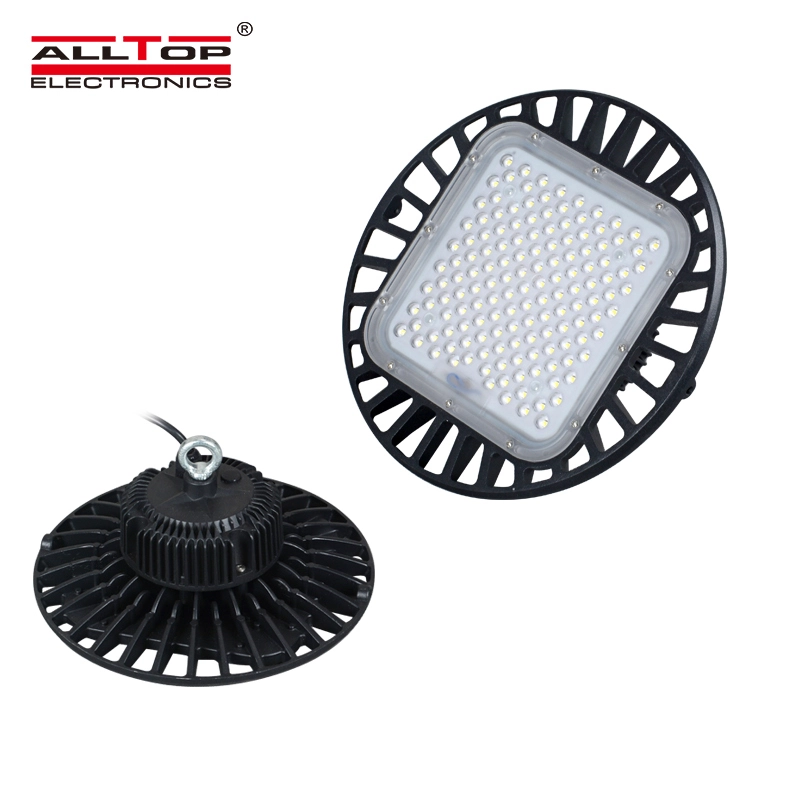

High quality factory industrial warehouse smd Aluminum 100W 150w 200w ufo led high bay light
|
|
|
|
|
|
Item No |
7046A100-01 |
7046B150-01 |
7046C200-01 |
|
Power |
100W |
150W |
200W |
|
LED Lamp |
3030 LED 140PCS |
3030 LED 210PCS |
3030 LED 280PCS |
|
Lamp Size |
Φ275*140mm |
Φ320*150mm |
Φ350*150mm |
|
LED Life Span |
≥50000 hrs |
≥50000 hrs |
≥50000 hrs |
|
Input Voltage |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
|
Color Rendering Index |
>70Ra |
||
|
Power Factor |
≥0.95 |
||
|
Lumen |
160lm/w |
||
|
Material |
Die-casting Aluminium |
||
• IP65 waterproof , suitable wet & tough environment.
• SMD 3030 LED Chips, 160lm/w.
• Low power consumption, energy saving, with longer lifetime.
• Environmentally friendly, no UV , no mercury and other pollutants.
• High pure aluminum heatsink design increase more airflow for better heat dissipation.
1:Install Height 5-8m,Irradiation Range 50-70㎡ .
2:Install Height 9-11m,Irradiation Range 70-100㎡ .
3:Install Height 12-15m,Irradiation Range 100-130㎡ .
The LED chip is a semiconductor chip that emits light and is not easily broken,
so that its service life can reach 50,000 hours, while the ordinary incandescent
lamp has a service life of only one thousand hours
The product quality is good, the production efficiency is high, it is in compliance with
RoHS environmental protection standards, and has a good metal texture.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
