We are a leading manufacturer of solar power utilization and lighting systems

ALLTOP integrated integrated led solar street light sensor for garden 1

ALLTOP integrated integrated led solar street light sensor for garden 2

ALLTOP integrated integrated led solar street light sensor for garden 3

ALLTOP integrated integrated led solar street light sensor for garden 4

ALLTOP integrated integrated led solar street light sensor for garden 5

ALLTOP integrated integrated led solar street light sensor for garden 6

ALLTOP integrated integrated led solar street light sensor for garden 7

ALLTOP integrated integrated led solar street light sensor for garden 8

ALLTOP integrated integrated led solar street light sensor for garden

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Delivery Time:

5-15 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram,

Service:

OEM/ODM Customized　

Start Port:

guangzhou ,shenzhen, zhuhai

Supply Ability:

5000 PCS/Month

Inquiry

Application Scope

solar lighting has a wide range of applications. It is mainly used in the following industries and fields.ALLTOP Lighting has been engaged in the production of LED street lights for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Company Advantages
1. All designs of solar led lights come from professional designers.
2. The product is highly resistant to shock, vibrations, and external impacts, which makes it easily exposed to rough conditions indoor or outdoor.
3. The product features high transmittance. The lampshade housing is made of a material that is comparable to crystal, so the propagation of light is not obstructed.
4. Zhongshan ALLTOP Lighting CO., LTD has stable production bases and manufacture center for our solar led lights .


Item NO	0400A08-01	0400B12-01	0400C20-01	0400D40-01	0400E60-01
Power	8W	12W or 15W	20W or 25W	30W or 40W	50W or 60W
LED Lamp	8W LED 6000K-6500K	12W /15W LED 6000K-6500K	20W /25W LED 6000K-6500K	30W/40W LED 6000K-6500K	50W/60W LED 6000K-6500K
Lamp Size	46532570mm	630325140mm	875325140mm	1120325140mm	1120450145mm
Solar Panel	16V 16W, Mono-Crystalline	16V 20W, Mono-Crystalline	16V 33W, Mono-Crystalline	16V 45W, Mono-Crystalline	16V 75W, Mono-Crystalline
Battert Type	LiFePO4 12.8V 3AH	LiFePO4 12.8V 6AH	LiFePO4 12.8V 12AH	LiFePO4 12.8V 18AH	LiFePO4 12.8V 33AH
Charging time	6-8 hours
Discharging time	20-24 hours	30-36 hours	30-36 hours	30-36 hours	30-36 hours
Lumen	100lm/w
Material	Aluminum Alloy
Install Height	2-4m	3-5m	5-7m	5-7m	6-8m

product description

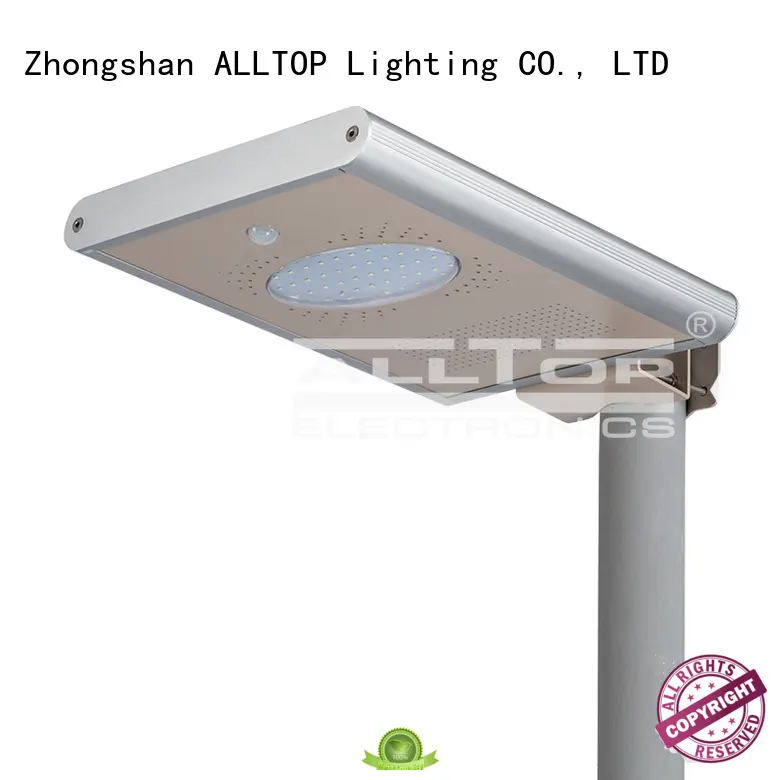

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-5

solar street light

All-in-one design and charged by solar, so the lighting kits are completely wireless and easy to be mounted.
The applications for solar powered outdoor lighting systems are endless. These units can be used for: Security and safety lighting, rural area lighting, Dock lights, Park lighting, Parking lot lighting, Parkway lighting, Walkway lighting, Street lighting, Transit Lighting, Outdoor area lighting, Military and civil security and so on. The costs of trenching and installing underground wiring often make a solar street lighting system an economically feasible lower cost option.

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-6

LED Source

The LED chip is a semiconductor chip that emits light and is not easily broken, so that its service life can reach 50,000 hours, while the ordinary incandescent lamp has a service life of only one thousand hours;

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-7

PIR Sensor

light sensor(solar panel)：turns ON automatically at dusk and OFF at dawn Motion(PIR) Sensor：Stay on dim light,and becomes 100% brightness only when motion detected(when people passes by).When people passes away, it will be 30% brightness.

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-8

High-Efficiency Heat Dissipation

Offers high-efficiency heat dissipation
Airon exchange in the body
Reduce the LED and drive operating temperature

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-9

Solar panel

High conversion solar panels
Large area light plate, super conversion, charging faster
Adopt polycrystalline silicon volt plate, cut and cut the whole piece, high photoelectric conversion efficiency, automatic charging, can also store electricity well in cloudy and rainy days

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-10

Lithium battery

Lithium battery advantages:
1. Green and environmental protection: no toxic heavy metal substances such as lead, mercury and cadmium are produced.
2, lithium-ion battery can be charged and discharged at any time, unlike nickel-metal hydride, nickel-tin
battery, must wait until the power is exhausted.
3, the environmental temperature difference changes adaptability: can be used in the environment of -20 ° C ~ 60 ° C,
4, the service life is relatively long: the service life can reach more than 6 years

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-11

Adiustable interface & Four fixing screws

Made of Aluminum Allouy material, this solar light is IP65 waterproof so it can withstand rain and other extreme weather conditions

Packing Adventages

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-12

Using package color inner boxes
Attached installation manual
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-13

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-14

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-15

Applications

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-16

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-17

ALLTOP -Solar Led Lights All In One Integrated Led Solar Led Street Light-18

Company Features
1. Known as a professional solar led lights manufacturer, Zhongshan ALLTOP Lighting CO., LTD has a wide market share.
2. Zhongshan ALLTOP Lighting CO., LTD introduces the domestic and foreign advanced production equipment and solar pole lights technology positively.
3. The development of all respects of company facilitates ALLTOP to be more attractive. Get price! ALLTOP’s strategic vision is to become a world-class outside solar lights company with global competitiveness. Get price!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
