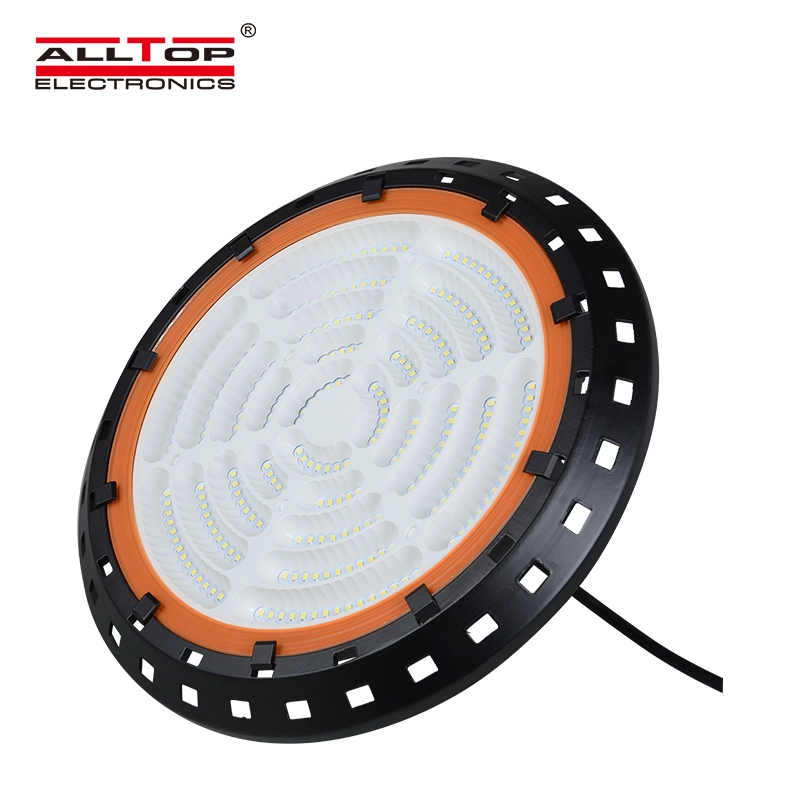

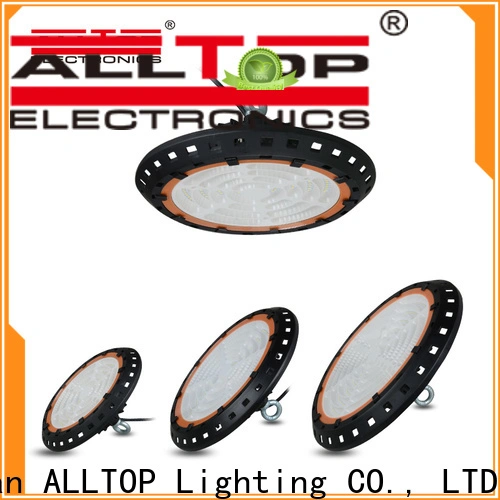

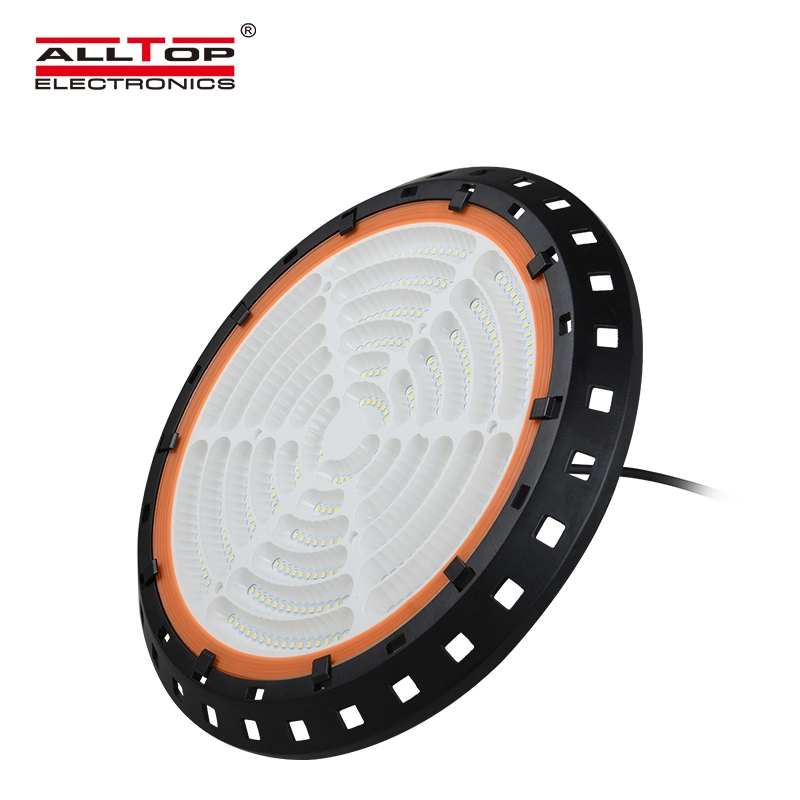

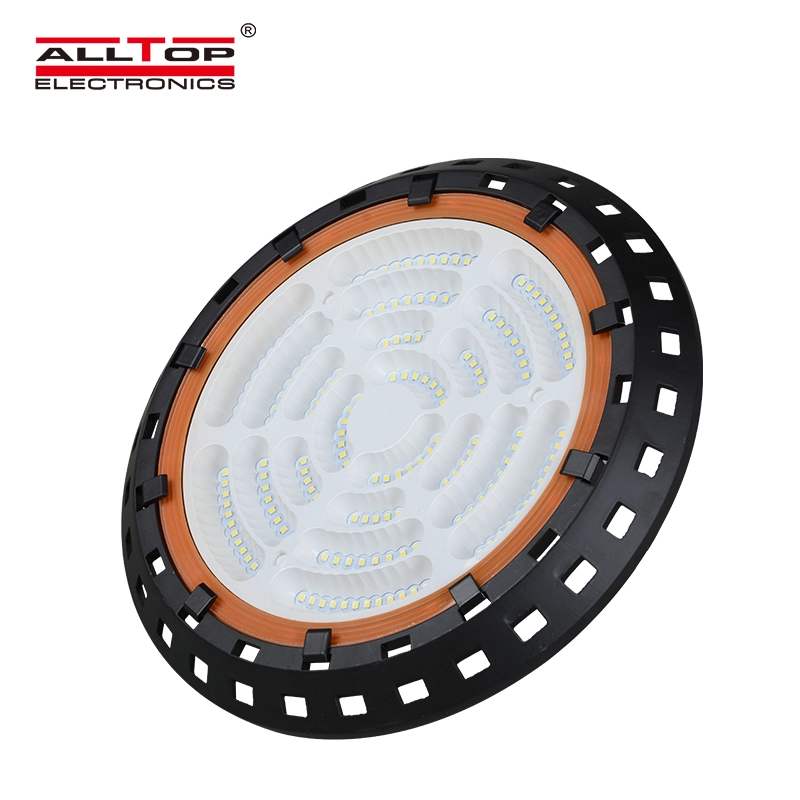

ALLTOP industrial high bay light factory for park
1. ALLTOP 2x4 led high bay fixture is produced by a series of sophisticated machines. The product will be processed by the board cutting saw, felt-board machine, finger jointer, cold and heat press, and other equipment. Thanks to the adoption of the aluminum alloy, the product is waterproof
2. Zhongshan ALLTOP Lighting CO., LTD concerns about mutual benefit and common development with customers. The product, made of high cost-performance aluminum alloy, has a favorable price
3. The product features high CRI. Its light is naturally close to the sun's, dramatically improves the appearance of an object. Made of durable ABS material, it can withstand extreme weather like rainy day
4. The product gives off a clear light. Its finely designed beam angle enables it to emit light that is more evenly distributed. All the products are of good thermal conductivity
5. Since the product features high light transmission performance. It is able to deliver light more efficiently to the desired location without any resistance. Customized products can be made to satisfy the needs of customers
|
|
| |
Item No | 7036A100-01 | 7036B150-01 | 7036C200-01 |
Power | 100W | 150W | 200W |
LED Lamp | 3030 LED 170PCS | 3030 LED 255PCS | 3030 LED 360PCS |
Lamp Size | Ф290*155mm | Ф340*160mm | Ф390*165mm |
LED Life Span | ≥50000 hrs | ≥50000 hrs | ≥50000 hrs |
Input Voltage | AC85-265V 50/60Hz | AC85-265V 50/60Hz | AC85-265V 50/60Hz |
Color Rendering Index | >70Ra | ||
Power Factor | ≥ 0.9 | ||
Lumen | 160lm/w | ||
Material | Die-casting Aluminium | ||
• IP65 waterproof , suitable wet & tough environment.
• SMD 3030 LED Chips, 160lm/w.
• Low power consumption, energy saving, with longer lifetime.
• Environmentally friendly, no UV , no mercury and other pollutants.
• High pure aluminum heatsink design increase more airflow for better heat dissipation.
1:Install Height 5-8m,Irradiation Range 50-70㎡ .
2:Install Height 9-11m,Irradiation Range 70-100㎡ .
3:Install Height 12-15m,Irradiation Range 100-130㎡ .
The LED chip is a semiconductor chip that emits light and is not easily broken,
so that its service life can reach 50,000 hours, while the ordinary incandescent
lamp has a service life of only one thousand hours
The product quality is good, the production efficiency is high, it is in compliance with
RoHS environmental protection standards, and has a good metal texture.
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Company Features
1. Customers value our industrial high bay light because our products are of superior quality and performance.
2. Pursuing excellence and professional skills at manufacturing finest high bay lamp will keep ALLTOP ahead. Get price!
