Item NO | 5025A100-01 | 5025B120-01 | 5025C150-01 | 5025D180-01 |
Power | 100W | 120W | 150W | 180W |
Light Source | Bridgelux Chip or Customized | |||
Lamp Size | 350*310*90mm | 392*350*90mm | 475*350*90 mm | 556*350*9mm |
Led Life Span | 50000 hours | |||
Color rendering index | Ra≥85 | |||
Power factor | PF≥0.96 | |||
Rated life | ≥50000 Hours | |||
Color temperature | 3000k-7000k | |||
Working temperature | -30℃~+50℃ | |||
Material | High quality Die-casting Aluminium | |||
Input Voltage | AC 90-265V 50/60HZ | |||
Beam angle | 180° | |||
IP code | IP65 | |||
Warranty | 3yesrs |

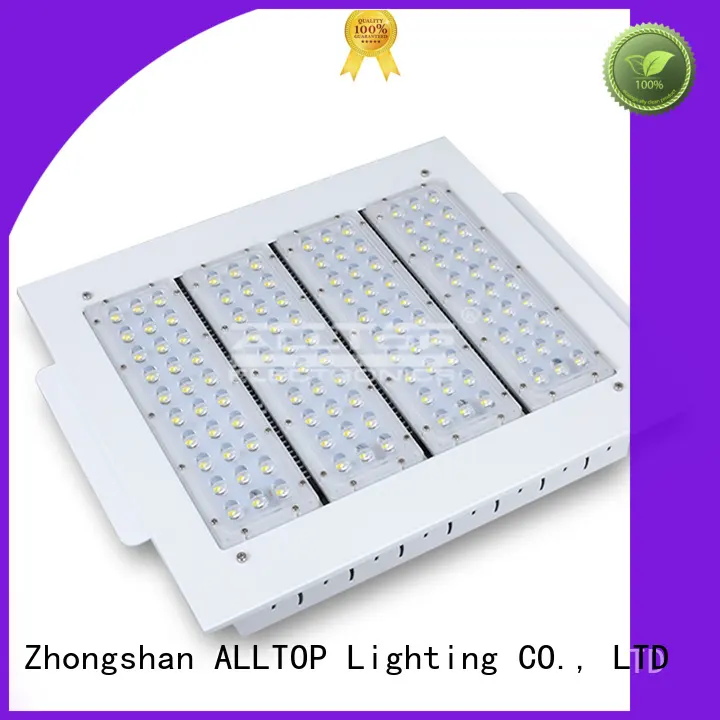

Embedded petrol station light, Easy to install and use. It is suitable for the lighting of large ceilings such as gas stations, underground garages, subway stations, large supermarkets, and large warehouses.
High safety factor, Moisture proof, anti-corrosion, waterproof, etc.
Imported LED light source, High heat conductivity, low luminous decay, pure light color and no ghosting. Life span longer than 50000 hours.
Made of high quality die-casting aluminum alloy, it has the characteristics of fast heat dissipation, waterproof and anti-corrosion.
Integrative design for heat sink and housing; The LED is closely connected to the surface.
Led canopy light suitable for the lighting of large ceilings such as gas stations, underground garages, subway stations, large supermarkets, and large warehouses.
60W Side Emitting Lighting High Bay Light
Edge lighting high bay light | |
Model | STE-HB451-60W |
Power | 60W |
Input voltage | AC90-277V |
LED chip | SMD2835 |
LED QTY | 144pcs |
Lumen | 120lm/w |
CRI | RA>80 |
Warranty | 5 years |
1. Lumens: >120lm/W,SMD2835 chip(SMD3030 chip 150lm/w)
2. Technology & Research: Beehive Design, good for Heat Dissipation
3. Comfortable lighting Assurance: Anti-Dazzle, UGR<19
4. Professional lighing distribution: Different Beam Angle Design
5. Design Patent,hive type UFO shape,side emitting lighting
6. IK08 Shell Protection Grade,tempered glass cover
7. IP65 Waterproof and Dusrproof,Better for Outdoor solutions
New design side emitting high bay light,good at heat dissipation.
Model | STE-HB451-60W | STE-HB451-100W | STE-HB451-150W | STE-HB451-200W |
LED chip | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
Wattage | 60W | 100W | 150W | 150W |
Lumen | 120lm/W | 120lm/W | 120lm/W | 120lm/W |
Input Voltage | AC90-277V | AC90-277V | AC90-277V | AC90-277V |
Lamp size | 220x134mm | 280x198mm | 320x207mm | 355x215mm |
LED QTY | 144 pcs | 288pcs | 432pcs | 576pcs |
CRI | RA>80 | RA>80 | RA>80 | RA>80 |
• Long lifetime,5 year warranty On Complete Fixture
• Quick Start instant high luminous flux,super bright
• Up to 50% energy saving compared to tradition highbay light
• Lower maintenance cost thanks to over 3 times longer lifetime
Open the packing, take out the light, and accessories.
Install the hook chain in ceiling.
Fix the ring in the driver box.
Fix the light on the chain.
Connect wires to electric power.Strong materials for packing carton.
Wattage | 60W | 100W | 150W | 200W |
Packing size(mm) | 250X250X140 | 310X310X205 | 350X350X210 | 385X385X220 |
N.W. | 1.18KG | 2.72KG | 3.64KG | 4.18KG |
G.W. | 2.14KG | 3.82KG | 4.86KG | 5.62KG |
All our products have certificates:
Application: Stadium, Workshop, Warehouse, exhibition hall etc.
Foshan STE Lighting Technology Co., Ltd. specialize in the LED application technology research and development,production and service, it's the comprehensive product application solution provider of LED indoor lighting, outdoor lighting, landscape lighting, rail traffic lighting.Our main products include: LED light source, LED light fixture series. The products are mainly used in city lighting, indoor and outdoor decoration, advertising project,industrial lighting. Such as LED stsreet light ,floodlight,and high bay light.
