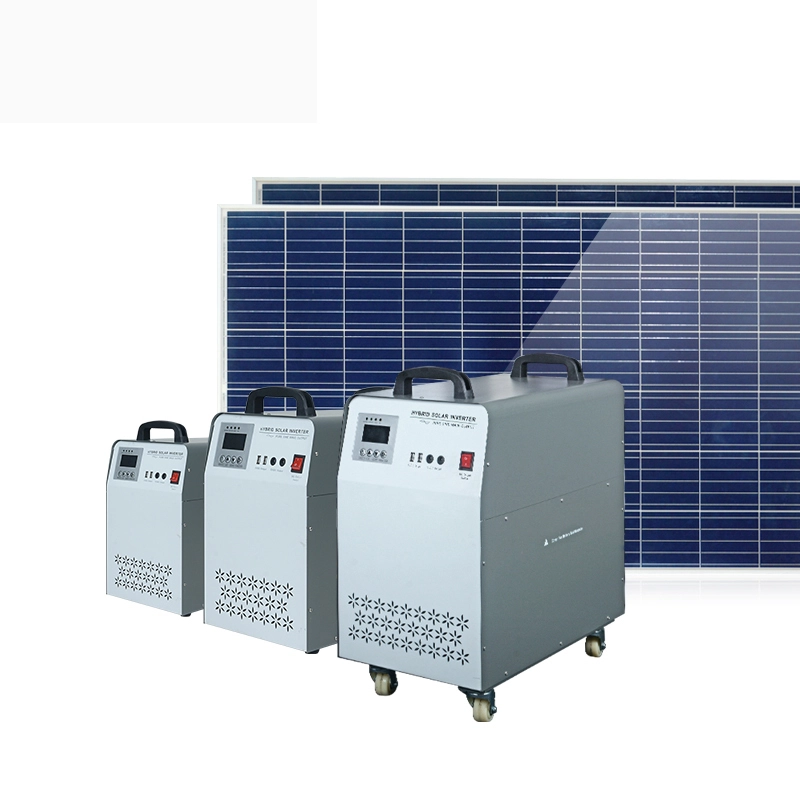

ALLTOP High quality sine wave solar energy inverter 1kw 2kw 3kw 5kw 6kw solar power system with home
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
ALLTOP High quality sine wave solar energy inverter 1kw 2kw 3kw 5kw 6kw solar power system with home
Hot Sale
Product Attribute
PRODUCT ATTRIBUTE
| Model | DQ1400E1K-01 |
| Battery Rated Voltage | 24VDC |
| Rated Power | 1000W |
| Solar Panel | 36V 300W Polycrystalline |
| Input Voltage Range | 160-275VAC |
| Input Frequency | 45-65Hz |
| Output Voltage | 220VAC |
| Output Frequency | 50Hz/60Hz |
| Output Wave | Sine Wave |
| Internal Battery Bank | 2*55AH/12VDC |
| Communication | RS232 |
| Max .PV Voltage | ≤50VDC |
| Range Of Charging Voltage | 20-50VDC |
| Rated Charge Current | 15A |
| Voltage For Overcharge Protection | 28.4VDC |
| Voltage For Overcharge Recovery | 28.0VDC |
| Voltage For Floating Charge | 27.4VDC |
| Voltage For High Voltage Protection | 32V |
| High Voltage Recovery Voltage | 30.4V |
| Low Voltage Recovery Voltage | 25.2V |
| Low Voltage Protection Voltage | 22VDC |
| 5VDC USB Output | 2PCS/MAX 2A |
| 12 VDC Output Ports | 2PCS/MAX 2A |
| Heat Dissipation/Cooling | Temperature Control By Intelligentexhaust Fan |
| Operating Ambient Temperature | -20-+50℃ |
| Storage Ambient Temperature | -25-+55℃ |
| External Size | 423*260*453mm |
| Packing Size | 520*370*520mm |
Product Description
Company Information
Packaging & Shipping
LED street lights enjoys a quality assurance in Zhongshan ALLTOP Lighting CO., LTD. Each finished product has passed TUV, KC, and EMC international certifications.
Zhongshan ALLTOP Lighting CO., LTD has strong financial strength and strong scientific research capabilities. Each finished product has passed TUV, KC, and EMC international certifications.
