Home  > All in one solar street light  >  ALLTOP High lumen outdoor 60w 120w 180w die cast aluminium body all in one led solar street light

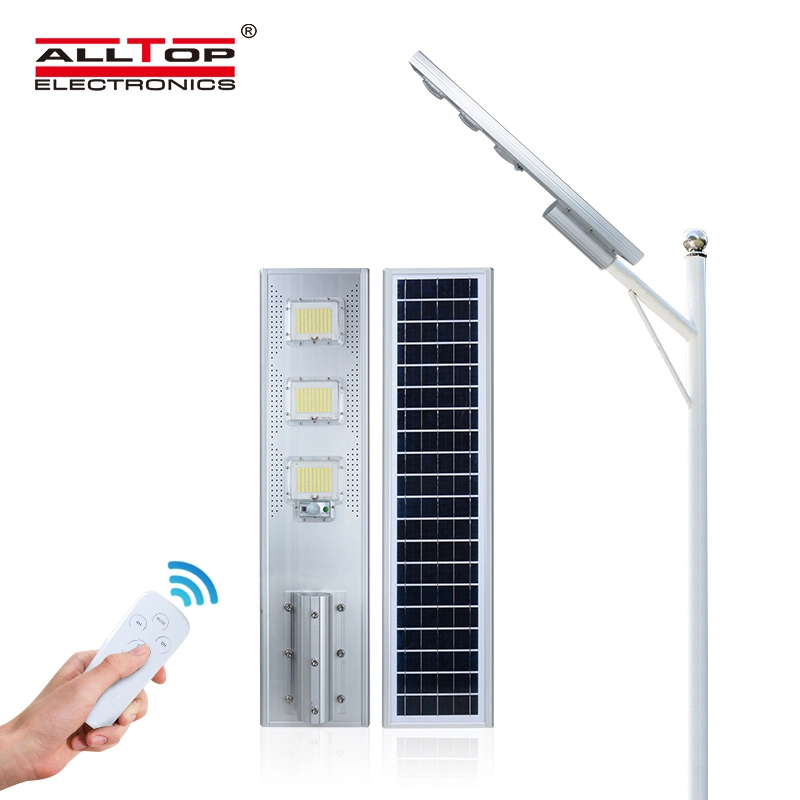

ALLTOP High lumen outdoor 60w 120w 180w die cast aluminium body all in one led solar street light

ALLTOP High lumen outdoor 60w 120w 180w die cast aluminium body all in one led solar street light

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Lighting solutions service:
Lighting and circuitry design, auto CAD layout, Onsite metering, Project Installation
Light Source:
LED
Lamp Luminous Flux(lm):
28800
CRI (Ra>):
85
Working Temperature(℃):
-35 - 50
IP Rating:
IP65
Certification:
ce, CQC, EMC, FCC, RoHS, VDE
Place of Origin:
Guangdong, China
Brand Name:
ALLTOP
Model Number:
0856C180-01
Beam Angle(°):
120
Application:
ROAD, garden, courtyard, road, outdoor, etc.
Product name:
die cast aluminium body all in one led solar street light
Solar Panel:
10V 28W, Polycrystalline
Size:
901*220*118 mm
power:
60w 120w 180w
Material:
Aluminum
Light degradation rate:
25000h ≤ 30%
Battery Type:
LiFePO4 6.4V 24AH
Power factor:
PF≥0.93
Warranty:
3 years
Lamp Luminous Efficiency(lm/w):
160
Input Voltage(V):
10
Working Lifetime(Hour):
50000
Warranty(Year):
3
Product Certification certification
CE Certified.
RoHS Certified.
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month

ALLTOP High lumen outdoor 60w 120w 180w die cast aluminium body all in one led solar street light

Hot Sale

product-ALLTOP -img

Product Attribute

 PRODUCT ATTRIBUTE

Item No.0856A60-010856B120-010856C180-010856D240-02
Solar Panel16W 10V
Polycrystalline
22W 10V
Polycrystalline
28W 10V
Polycrystalline
39W 10V
Polycrystalline
Battery typeLiFePO4
12AH 6.4V
LiFePO4
18AH 6.4V
LiFePO4
24AH 6.4V
LiFePO4
30AH 6.4V
Lamp Size(mm)502*220*123720*220*123902*220*1231117*220*53
LED Lamp5730 LED 108PCS5730 LED 216PCS5730 LED 324PCS5730 LED 432PCS
Install Height4-6m6-8m8-10m8-12m
Luminous Efficiency160 lm/w
Charging time6-8 hours
Discharging time20-24 hours
MaterialAluminium
CertificateCE,RoHS
Working temperature-30~+50°C
Payment termsBy T.T, Western Union, L/C, etc
ApplicationHighway,Garden,paking lot, park,road, square, stc
Warranty3 Years



 Click here for more information!

Company Information
Packaging & Shipping



Advanced machines in ALLTOP allows us to produce mass production. The light efficiency of the product reaches 91%. Research & Development are the core competition of Zhongshan ALLTOP Lighting CO., LTD. The light efficiency of the product reaches 91%.
